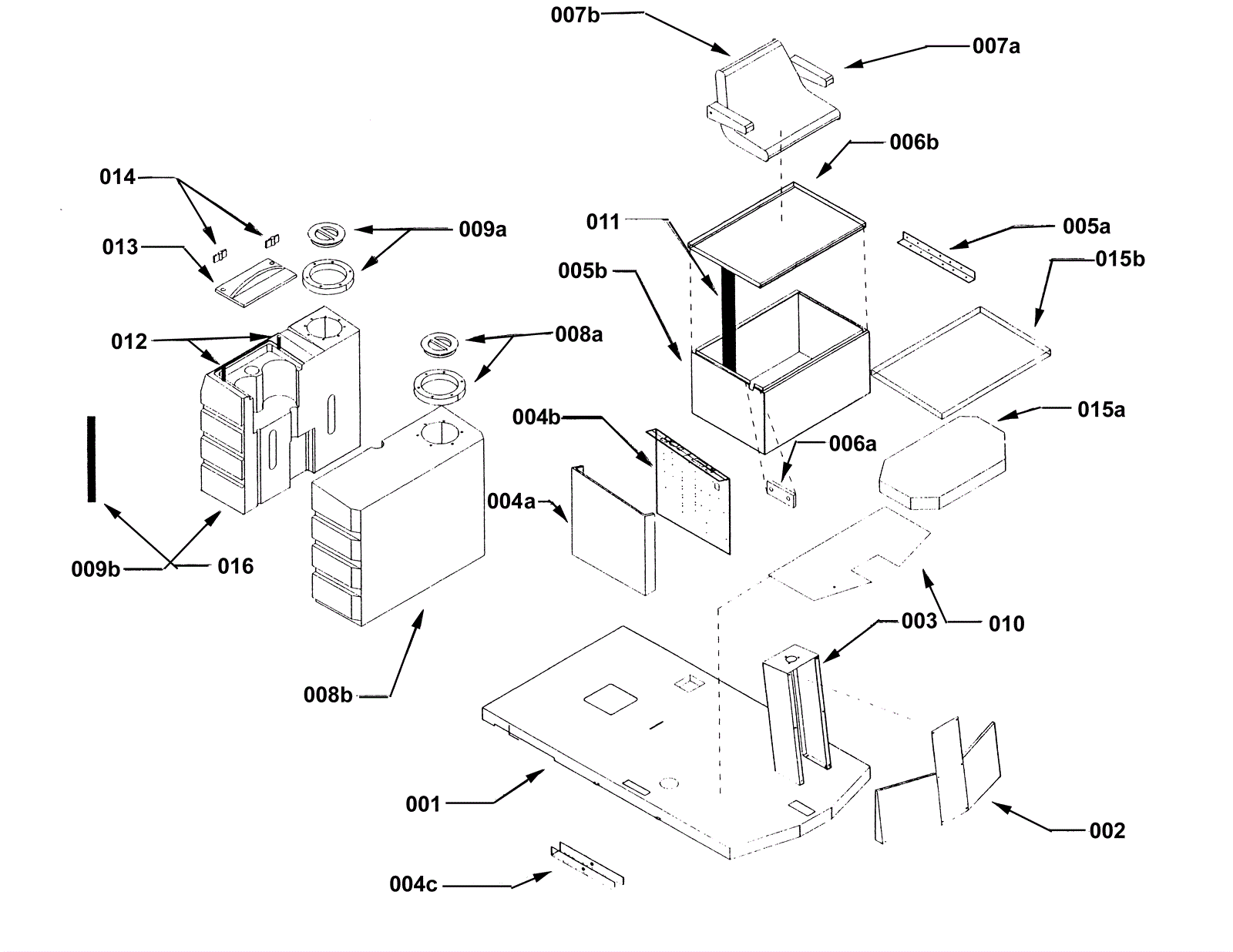

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
202-0397
|
Mainframe (OBSOLETE) |
$1,439.24
|
1 |
|
usually ships 1-5 days |
002 |
202-0422
|
Front apron (red) |
$233.86
|
1 |
|
usually ships 8-12 days |
003 |
202-0423
|
Steering pedestal (OBSOLETE) |
$154.79
|
1 |
|
usually ships 1-5 days |
004a |
202-0424
|
Central command outer panel flat |
$105.27
|
1 |
|
usually ships 1-5 days |
004b |
202-0356
|
Central command box |
$341.00
|
1 |
|
usually ships 1-5 days |
004c |
202-0425
|
Wiring channel |
$127.71
|
1 |
|
usually ships 1-5 days |
005a |
202-0083
|
Hinge (OBSOLETE) |
$14.30
|
1 |
|
usually ships 8-12 days |
005b |
202-0426
|
Battery box (OBSOLETE) |
$4.62
|
1 |
|
usually ships 1-5 days |
006a |
202-0427
|
Battery box cable guard |
$14.85
|
1 |
|
usually ships 1-5 days |
006b |
202-0079
|
Battery box lid |
$318.89
|
1 |
|
usually ships 1-5 days |
007a |
202-0082
|
Armrest kit (OBSOLETE) |
$115.98
|
1 |
|
usually ships 1-5 days |
007b |
202-0081
|
Seat with switch, cover, locking track and mounting |
$740.52
|
1 |
|
usually ships 8-12 days |
008a |
202-0234
|
Tank lid and ring |
$149.71
|
1 |
|
usually ships 8-12 days |
008b |
202-0428
|
Complete solution tank polyethylene (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
009a |
202-0200
|
50 gallon capacity recovery tank (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
009a |
202-0234
|
Tank lid and ring |
$149.71
|
1 |
|
usually ships 8-12 days |
010 |
202-0430
|
Nonskid floor plate |
$286.66
|
1 |
|
usually ships 1-5 days |
011 |
202-2022
|
Hood cable |
$27.39
|
1 |
|
usually ships 8-12 days |
012 |
202-0225
|
Mounting stud |
$5.50
|
2 |
|
usually ships 1-5 days |
013 |
202-0431
|
Recovery tank vacuum lid (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
014 |
202-0711
|
Clamping knob (pkg of 2) |
$16.50
|
2 |
|
ships same day |
015a |
202-0078
|
Plywood battery underlayment |
$31.35
|
1 |
|
usually ships 1-5 days |
015b |
202-0084
|
Battery tray black plastic (OBSOLETE) |
$27.72
|
1 |
|
usually ships 1-5 days |
016 |
202-0242
|
Tank tie down strap complete for poly tanks |
$45.52
|
1 |
|
usually ships 1-5 days |
016a |
202-0244
|
Tank tie-down strap belt attachment rear |
$20.90
|
1 |
|
usually ships 1-5 days |
016b |
202-0242
|
Tank tie down strap complete for poly tanks |
$45.52
|
1 |
|
usually ships 1-5 days |
016c |
202-0243
|
Tank tie down strap hook |
$19.03
|
1 |
|
usually ships 1-5 days |
N/S |
202-0417
|
Front splash curtain holddown bar set |
$220.88
|
1 |
|
usually ships 1-5 days |
N/S |
202-0434
|
Battery tray drain hose |
$5.50
|
1 |
|
usually ships 1-5 days |
N/S |
202-0435
|
3700 inch side decal |
$30.03
|
2 |
|
usually ships 1-5 days |
N/S |
202-0436
|
Tomcat front decal |
$21.34
|
1 |
|
usually ships 8-12 days |
