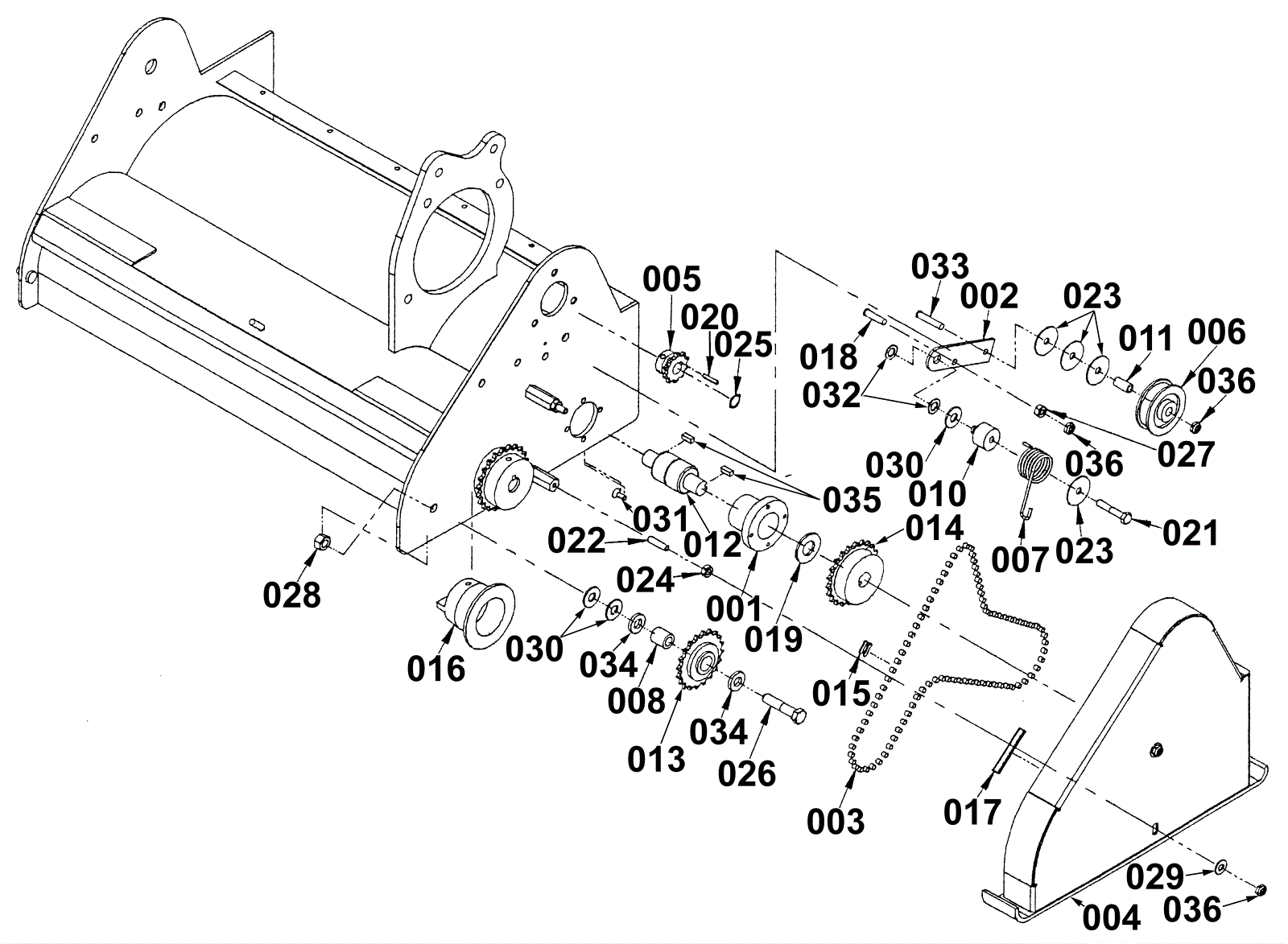

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0265
|
Idler bearing housing |
2 |
|
|
002 |
202-0627
|
Movable idler arm |
1 |
|
|
003 |
202-1270
|
Drive chain |
1 |
|
|
004 |
202-0856
|
Chain guard (OBSOLETE) |
1 |
|
|
006 |
202-0267
|
Idler pulley with bearing |
1 |
|
|
007 |
202-0277
|
Tension spring |
1 |
|
|
008 |
202-0279
|
Idler spacer |
1 |
|
|
009 |
202-0285
|
Cylindrical drive teflon grease hi-pressure lube #1 |
1 |
|
|
010 |
202-0639
|
Pivot Spring |
1 |
|
|
011 |
202-0270
|
Spacer |
1 |
|
|
012 |
202-0269
|
Brush driver bearing (includes 202-0265) |
2 |
|
|
013 |
202-0268
|
Fixed idler sprocket with bearing 20 tooth |
1 |
|
|
014 |
202-0266
|
Sprocket 22-tooth |
2 |
|
|
015 |
202-0283
|
Master link |
1 |
|
|
016 |
202-0264
|
Brush driver |
2 |
|
|
017 |
202-0250
|
Chain guard seal |
1 |
|
|
018 |
202-1073
|
Stud 1/4-20 x 1 self-clinching |
1 |
|
|
019 |
202-1058
|
Washer 5/8 teflon |
1 |
|
|
020 |
202-1229
|
Key 1/8 x 1/8 x 3/4 |
1 |
|
|
022 |
202-0857
|
Stud 1/4-20 x 1 |
2 |
|
|
023 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
4 |
|
|
024 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
2 |
|
|
025 |
202-1346
|
Snap ring 1/2 |
1 |
|
|
026 |
999-0857
|
Screw 3/8-24 x 1 3/4 hex head stainless steel |
1 |
|
|
027 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
028 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
1 |
|
|
029 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
030 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
3 |
|
|
031 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
1 |
|
|
032 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
2 |
|
|
033 |
999-0198
|
Screw 1/4-20 x 1 1/4 socket cap alloy plain finish |
1 |
|
|
034 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
035 |
202-0278
|
Square keyway |
4 |
|
|
036 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
|
N/S |
202-0303
|
32 inch Medium grit scrubbing brush - CYLINDRICAL |
|
|
|
