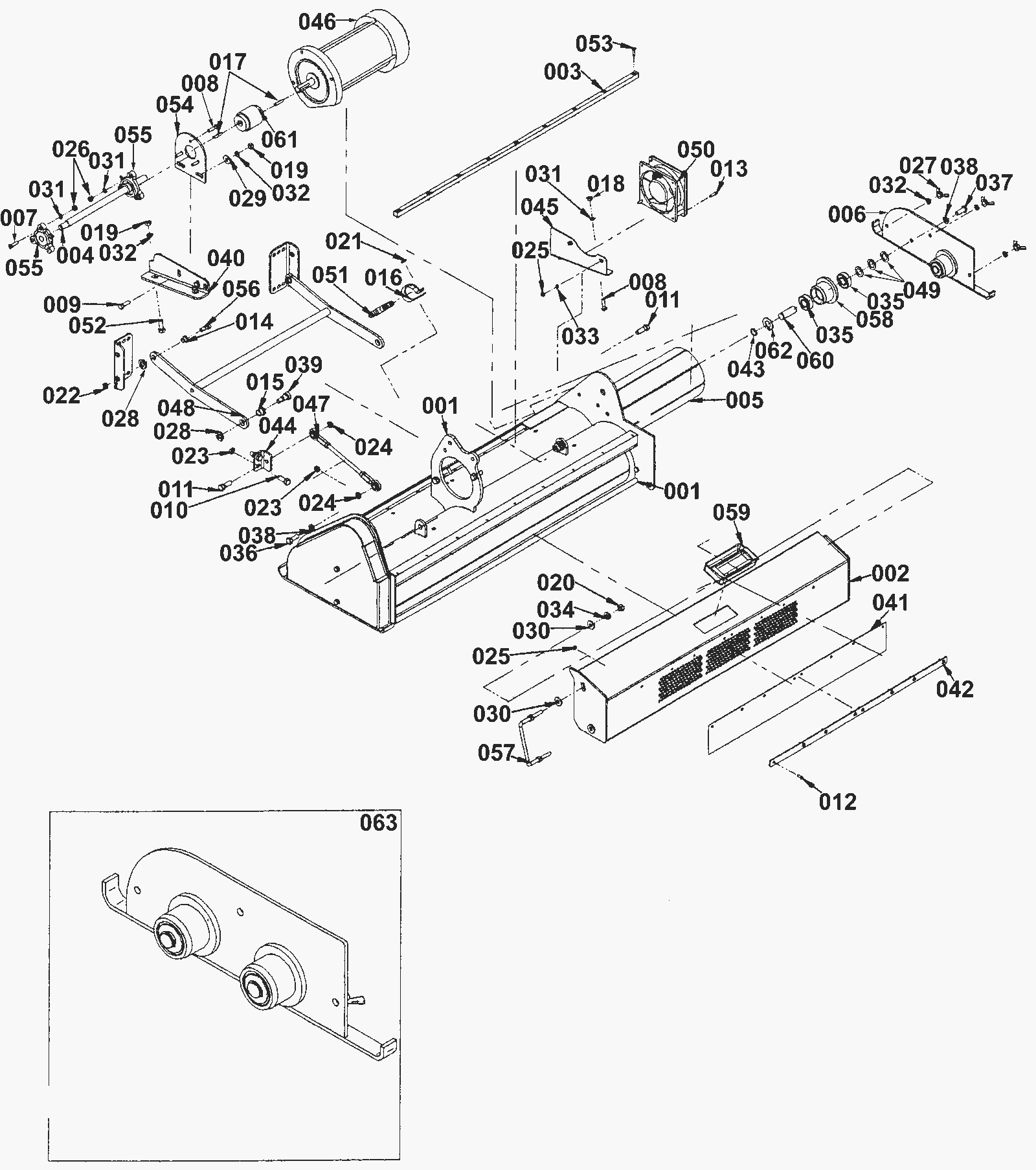

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
202-0836
|
Cylindrical brush head 32 inch |
1 |
|
|
001b |
202-0834
|
25 inch cylindrical brush head (OBSOLETE) |
1 |
|
|
002a |
202-0837
|
Hopper 25 inch (OBSOLETE) |
1 |
|
|
002b |
202-0838
|
Hopper 28 inch |
1 |
|
|
002c |
202-0839
|
Hopper 32 inch (OBSOLETE) |
1 |
|
|
003a |
202-0840
|
27 inch hopper rail |
1 |
|
|
003b |
202-0841
|
30 inch hopper rail |
1 |
|
|
003c |
202-0287
|
Hopper rail 32 inch (OBSOLETE) |
1 |
|
|
004a |
202-0842
|
Cylinidrical drive shaft 25 inch (OBSOLETE) |
1 |
|
|
004b |
202-0843
|
Cylinidrical drive shaft 28 inch |
1 |
|
|
004c |
202-0844
|
Cylinidrical drive shaft 32 inch |
1 |
|
|
005a |
202-2283
|
32 inch Extra heavy grit scrubbing brush - CYLINDRICAL |
2 |
|
|
005b |
202-0303
|
32 inch Medium grit scrubbing brush - CYLINDRICAL |
2 |
|
|
005c |
202-0302
|
32 inch Light grit scrubbing brush - CYLINDRICAL |
2 |
|
|
005d |
202-2275
|
32 inch Polypropelene cylindrical brush (OBSOLETE) |
2 |
|
|
005e |
202-0301
|
32 inch Nylon scrubbing brush - CYLINDRICAL |
2 |
|
|
005f |
202-2276
|
32 inch Tampico cylidnrical brush |
2 |
|
|
006 |
202-0290
|
Cylindrical brush idler door |
1 |
|
|
007 |
999-0348
|
Screw 1/4-20 x 1 flat head phillips zinc plated |
3 |
|
|
008 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
5 |
|
|
009 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
010 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
|
011 |
999-1135
|
Bolt 3/8-16 x 1 1/8 hex head stainless steel |
2 |
|
|
012 |
999-0074
|
Screw 10-32 x 1/2 round head slotted zinc plated |
8 |
|
|
013 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
2 |
|
|
014 |
202-0754
|
Flanged bearing |
2 |
|
|
015 |
202-0845
|
Bearing 1/2 x 5/8 x 1/2 flanged |
2 |
|
|
016 |
202-0846
|
Rubber loop clamp |
1 |
|
|
017 |
202-0847
|
Square keyway |
2 |
|
|
018 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
019 |
999-0593
|
Nut 5/16-18 hex stainless steel |
4 |
|
|
020 |
999-0959
|
Nut 3/8-16 hex |
2 |
|
|
021 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
1 |
|
|
022 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
2 |
|
|
023 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
4 |
|
|
024 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
2 |
|
|
025 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
10 |
|
|
026 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
|
027 |
999-1012
|
Nut 5/16-18 wing stainless steel |
3 |
|
|
028 |
202-1161
|
Washer 1/2 flat thick bronze |
4 |
|
|
029 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
030 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
031 |
999-0632
|
Washer 1/4 split lock stainless steel |
8 |
|
|
032 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
7 |
|
|
033 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
034 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
035 |
202-0307
|
Idler assembly and shaft |
2 |
This part is no longer available alone, you must purchase it in this kit. |
|
036 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
3 |
|
|
037 |
999-1003
|
Bolt 3/8-16 x 1 button head socket cap stainless steel |
1 |
|
|
038 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
4 |
|
|
039 |
202-1052
|
Bolt 1/2 shoulder stainless steel |
2 |
|
|
040 |
202-0848
|
Fan plate mount |
1 |
|
|
041 |
202-0849
|
Hopper splash shield (OBSOLETE) |
1 |
|
|
042 |
202-0850
|
Splash shield hopper strip |
1 |
|
|
043 |
999-0859
|
Snap ring 17mm |
2 |
|
|
044 |
202-0851
|
Cylindrical support bracket |
1 |
|
|
045 |
202-0852
|
Fan mounting bracket |
1 |
|
|
046 |
202-0630
|
2 hp motor |
1 |
|
|
047 |
202-0629
|
Adjustable lateral arm |
1 |
|
|
048 |
202-0853
|
Cylindrical lift arm (OBSOLETE) |
1 |
|
|
049 |
202-1279
|
Washer 17mm nylon flat |
6 |
|
|
050 |
202-2522
|
48V cooling fan |
1 |
|
|
051 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
052 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
053 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
9 |
|
|
054 |
202-0294
|
Bearing plate |
1 |
|
|
055 |
202-0296
|
Driveshaft bearing |
2 |
|
|
056 |
202-1163
|
Bolt 3/8 x 3/8 shoulder stainless steel |
2 |
|
|
057 |
202-0855
|
Hopper handle |
1 |
|
|
058 |
202-0307
|
Idler assembly and shaft |
2 |
|
|
059 |
202-0308
|
Handle |
1 |
|
|
060 |
202-0307
|
Idler assembly and shaft |
2 |
This part is no longer available alone, you must purchase it in this kit. |
|
061 |
202-0295
|
Coupling |
1 |
|
|
062 |
202-1189
|
Washer 17.3mm x 32.2mm x 1.6mm flat |
2 |
|
|
063 |
202-1401
|
Cylindrical idler door set |
1 |
|
|
