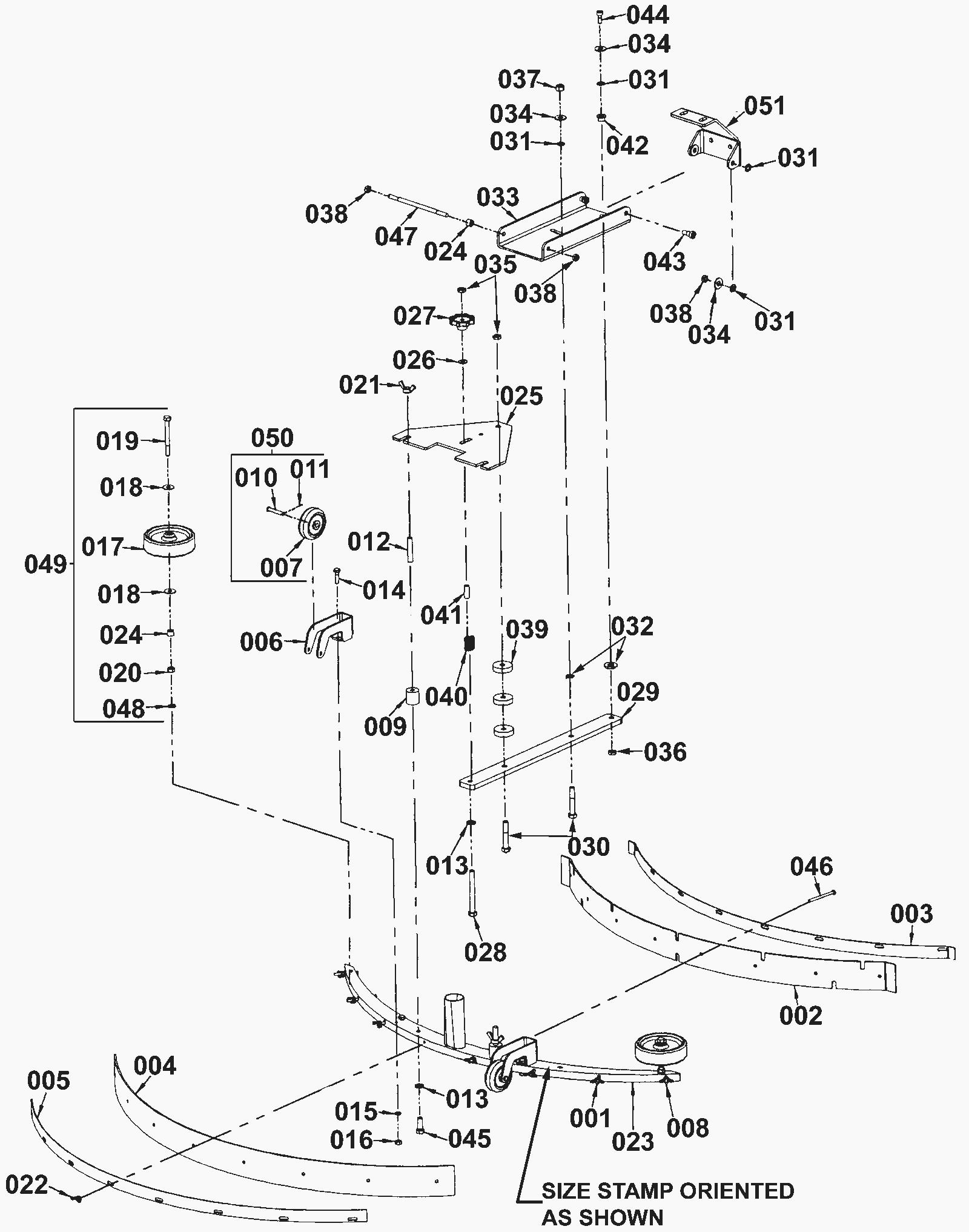

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
202-1359
|
35 inch squeegee assembly |
1 |
|
|
001a |
202-1743
|
32 inch squeegee weldment |
1 |
|
|
001b |
202-0795
|
35 inch squeegee weldment |
1 |
|
|
001c |
202-0578
|
38 inch squeegee weldment |
1 |
|
|
001d |
202-1855
|
45 inch squeegee weldment |
1 |
|
|
002a |
202-0796
|
Squeegee blade 32 inch gum rubber front |
1 |
|
|
002b |
202-0797
|
Squeegee blade 35 inch gum rubber front |
1 |
|
|
002c |
202-0796
|
Squeegee blade 32 inch gum rubber front |
1 |
|
|
002c |
202-0577
|
Squeegee blade 38 inch gum rubber front |
1 |
|
|
002d |
202-1803
|
Squeegee blade 45 inch gum rubber front |
1 |
This is the front blade for 45 inch squeegees |
|
003a |
202-1742
|
32 inch front squeegee band |
1 |
|
|
003b |
202-0799
|
35 inch front squeegee band |
1 |
|
|
003c |
202-0580
|
38 inch front squeegee band |
1 |
|
|
003d |
202-1856
|
45 inch front squeegee band |
1 |
|
|
004a |
202-0800
|
Squeegee blade 32 inch gum rubber rear |
1 |
|
|
004b |
202-0801
|
Squeegee blade 35 inch gum rubber rear |
1 |
|
|
004c |
202-0579
|
Squeegee blade 38 inch gum rubber rear |
1 |
|
|
004c |
202-2935
|
Rear gum rubber squeegee blade 32 inch 1/8 inch thick |
1 |
|
|
004d |
202-0002
|
Squeegee blade 45 inch gum rubber rear |
1 |
|
|
005a |
202-0802
|
32 inch rear squeegee band |
1 |
|
|
005b |
202-0803
|
35 inch rear squeegee band |
1 |
|
|
005c |
202-0576
|
38 inch rear squeegee band |
1 |
|
|
005d |
202-1857
|
45 inch rear squeegee band |
1 |
|
|
006a |
202-0581
|
Squeegee trail mount |
2 |
|
|
006b |
991-2412
|
Squeegee trail mounting bracket |
2 |
(NON-OEM) |
|
007 |
202-0008
|
Squeegee wheel with hardware (pkg of 2) |
1 |
pair |
|
008 |
999-0868
|
Screw 10-32 x 1 3/4 pan head phillips stainless steel |
2 |
|
|
009 |
202-0582
|
Stand-off |
2 |
|
|
010 |
202-0805
|
Clevis pin |
2 |
|
|
011 |
202-0585
|
Cotter ring |
2 |
|
|
012 |
202-0806
|
Stud |
2 |
|
|
013 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
3 |
|
|
014 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
4 |
|
|
015 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
016 |
999-0609
|
Nut 1/4-20 hex stainless steel |
4 |
|
|
017 |
202-0174
|
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
2 |
set of two with hardware |
|
018 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
019 |
999-0911
|
Screw 5/16-18 x 3 hex head stainless steel |
2 |
|
|
020 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
021 |
202-1044
|
Nut wing 3/8-16 nickel |
2 |
|
|
022 |
999-0058
|
Nut 10-32 wing zinc plated |
8 |
|
|
023 |
999-1017
|
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
4 |
|
|
024 |
202-0807
|
Shaft collar |
3 |
|
|
025 |
202-0808
|
Squeegee triangle plate |
1 |
|
|
026 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
027a |
202-0809
|
Brass star knob |
1 |
|
|
027b |
991-2411
|
Brass star knob |
|
(NON-OEM) |
|
028 |
202-1054
|
Bolt 3/8-24 x 3 1/2 hex head stainless steel |
1 |
|
|
029 |
202-0810
|
Squeegee trail arm |
1 |
|
|
030 |
999-0994
|
Screw 3/8-24 x 2 1/4 hex head stainless steel |
2 |
|
|
031 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
7 |
|
|
032 |
202-1161
|
Washer 1/2 flat thick bronze |
1 |
|
|
033 |
202-0812
|
Squeegee swing plate (OBSOLETE) |
1 |
|
|
034 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
035 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
2 |
|
|
036 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
1 |
|
|
037 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
038 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
4 |
|
|
039 |
202-0151
|
Grommet |
3 |
|
|
040 |
202-0813
|
Spring |
1 |
|
|
041 |
202-0589
|
5/16 clear tubing |
1 |
|
|
042 |
202-0754
|
Flanged bearing |
1 |
|
|
043 |
202-1163
|
Bolt 3/8 x 3/8 shoulder stainless steel |
2 |
|
|
044 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
1 |
|
|
045 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
|
046 |
999-0860
|
Screw 10-32 x 2 1/2 pan head slotted stainless steel |
2 |
|
|
047 |
202-0811
|
Double ended stud |
1 |
|
|
048 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
049 |
202-0174
|
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
1 |
|
|
050 |
202-0008
|
Squeegee wheel with hardware (pkg of 2) |
1 |
|
|
051 |
202-0727
|
Squeegee drag brace (OBSOLETE) |
1 |
|
|
N/S |
202-2972
|
Urethane squeegee rebuild kit 38 inch (clear) |
1 |
|
|
N/S |
202-2871
|
linatex squeegee rebuild kit 38 inch |
1 |
|
|
