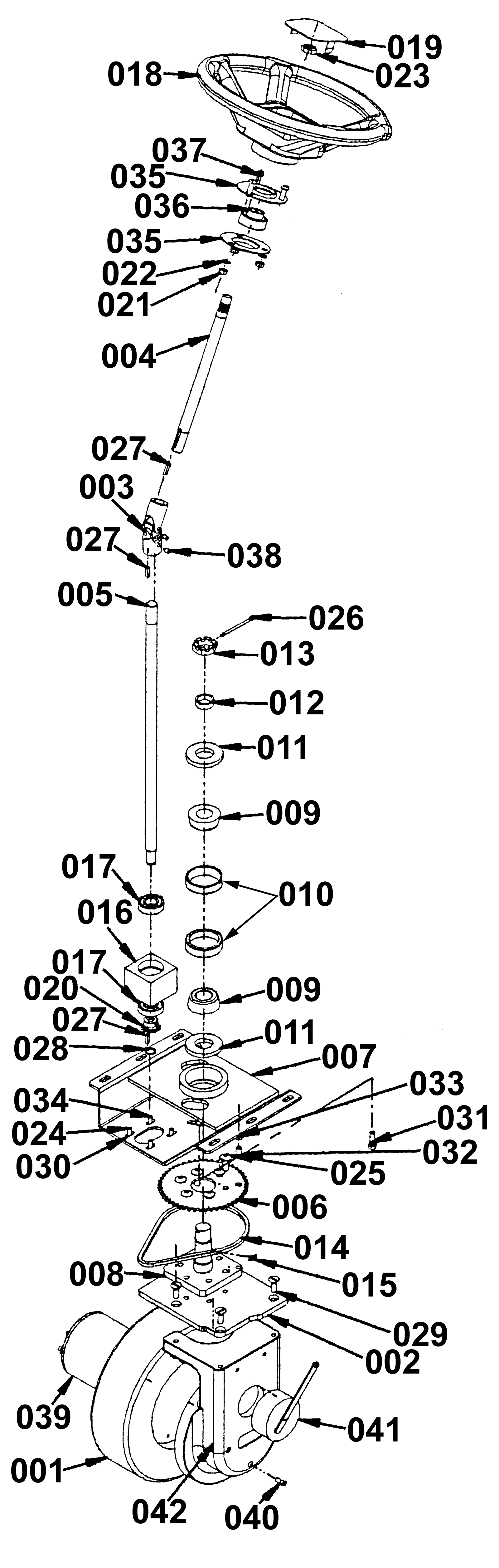

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
202-0777
|
Drive wheel (black) (wheel only) |
1 |
(standard) |
|
001b |
202-0776
|
Drive wheel (gray) (wheel only) |
1 |
(optional) |
|
002 |
202-1802
|
Steering shaft kit |
1 |
(includes 006 and 008) |
|
003 |
202-0760
|
U-joint |
1 |
|
|
004 |
202-0761
|
Upper steering shaft |
1 |
|
|
005 |
202-0762
|
Lower steering shaft (OBSOLETE) |
1 |
|
|
006 |
N/A
|
Not available |
1 |
(Steering sprocket) (available in 002) |
|
007 |
202-0764
|
Drop plate (OBSOLETE) |
1 |
|
|
008 |
N/A
|
Not available |
1 |
(Pivot shaft) (available in 002) |
|
009 |
202-0766
|
Tapered bearing |
2 |
|
|
010 |
202-0767
|
Bearing cap |
2 |
|
|
011 |
202-0768
|
Seal |
2 |
|
|
012 |
202-0769
|
Sleeved bearing |
1 |
|
|
013 |
202-1166
|
Slotted castle nut |
1 |
|
|
014 |
202-0770
|
Steering chain (29 links) (sold as one piece) |
1 |
|
|
015 |
202-0283
|
Master link |
1 |
|
|
016 |
202-0771
|
Bearing block |
1 |
|
|
017 |
202-0160
|
Bearing |
2 |
|
|
018 |
202-0772
|
Steering wheel |
1 |
|
|
019 |
202-0773
|
Steering cover |
1 |
|
|
020 |
202-0280
|
10 toothed sprocket |
1 |
|
|
021 |
999-0069
|
Nut 5/16-18 hex |
5 |
|
|
022 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
5 |
|
|
023 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
|
024 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
025 |
999-1011
|
Screw 3/8-24 x 1 button head socket plain finish |
6 |
|
|
026 |
997-2520
|
Cotter pin |
1 |
|
|
027 |
164-1029
|
Square keyway |
3 |
|
|
028 |
202-0281
|
Snap ring |
1 |
|
|
029 |
999-0992
|
Screw 3/8-16 x 1 flat head slotted zinc plated |
4 |
|
|
030 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
031 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
1 |
|
|
032 |
202-1169
|
Clevis pin |
1 |
|
|
033 |
202-0775
|
PVC tube |
1 |
|
|
034 |
999-0435
|
Screw 1/4-20 x 5/8 socket head alloy plain finish |
2 |
|
|
035 |
202-0143
|
Bearing mount |
2 |
|
|
036 |
202-0142
|
Upper steering bearing |
1 |
|
|
037 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
3 |
|
|
038 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
1 |
|
|
039 |
202-0778
|
24V 2HP motor (OBSOLETE) |
1 |
|
|
040 |
999-0338
|
Screw 1/4-20 x 1/2 socket head shoulder |
3 |
|
|
041 |
202-0779
|
Electric brake |
1 |
|
|
042 |
N/A
|
Not available |
1 |
(End housing) (comes in 202-0758) |
|
N/S |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
12 |
(holds the drive wheel and motor together) |
|
N/S |
202-0758
|
Drive wheel housing w/ motor and brake (wheel not included) |
|
(includes 039, 041 and 042) |
|
