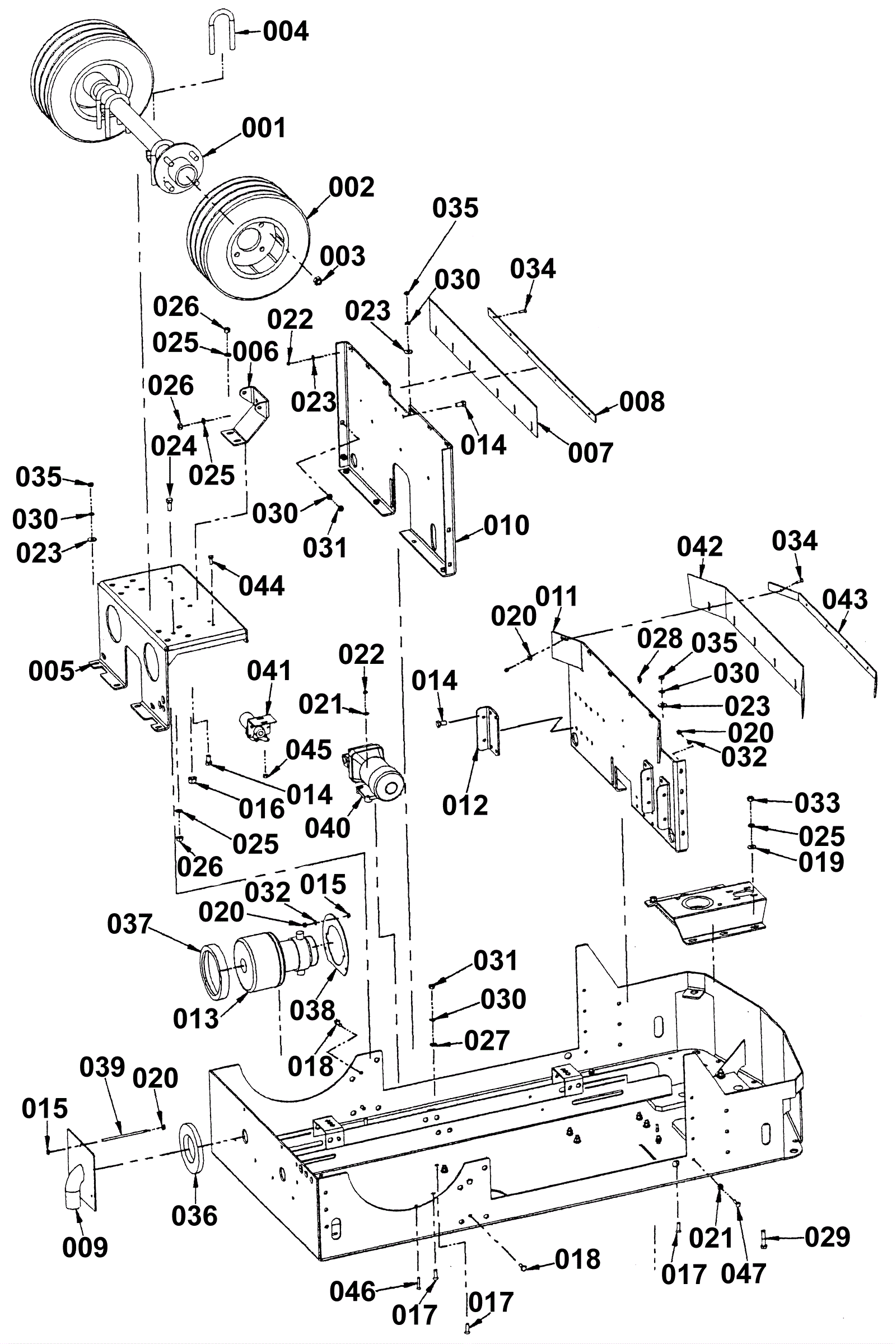

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0723
|
Rear axle |
1 |
|
|
002 |
202-0724
|
Rear wheel (black) |
2 |
|
|
003 |
202-1153
|
Nut 1/2-20 lug |
1 |
|
|
004 |
202-1154
|
U bolt 1/2-13 x 1 1/4 |
4 |
|
|
005 |
202-0726
|
Axle mount |
1 |
|
|
006 |
202-0727
|
Squeegee drag brace (OBSOLETE) |
1 |
|
|
007 |
202-0728
|
Rear splash curtain |
1 |
|
|
008 |
202-0729
|
Rear curtain mounting strip (OBSOLETE) |
1 |
|
|
009 |
202-0730
|
Vacuum inlet assembly (OBSOLETE) |
1 |
|
|
010 |
202-0731
|
Rear splash guard (OBSOLETE) |
1 |
|
|
011 |
202-0732
|
Front splash guard (OBSOLETE) |
1 |
|
|
012 |
202-0733
|
Scrub arm bracket (OBSOLETE) |
4 |
|
|
013a |
202-1091
|
24V 3 stage vacuum motor with gasket and contacts |
1 |
(before SN 40657) (Tomcat) |
|
013b |
991-1235
|
24V 3 stage vacuum motor peripheral |
1 |
(before SN 40657) (Ametek-Lamb) |
|
013c |
202-2124
|
24V 3 stage vacuum motor |
1 |
(after SN 40657) (Tomcat) |
|
013d |
991-1230
|
24V 3 stage vacuum motor tangential with snout |
1 |
(after SN 40657) (Ametek-Lamb) |
|
013e |
202-6469
|
Motor Brush,Vacuum (Set of 2) |
1 |
|
|
014 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
20 |
|
|
015 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
9 |
|
|
016 |
999-0842
|
Nut 1/2-20 nylon insert lock zinc plated |
8 |
|
|
017 |
999-1015
|
Screw 5/16-18 x 1 flat head phillips zinc plated |
17 |
|
|
018 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
019 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
3 |
|
|
020 |
999-0609
|
Nut 1/4-20 hex stainless steel |
20 |
|
|
021 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
|
|
022 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
8 |
|
|
023 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
12 |
|
|
024 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
|
025 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
10 |
|
|
026 |
999-0635
|
Nut 3/8-16 hex stainless steel |
6 |
|
|
027 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
028 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
16 |
|
|
029 |
999-0857
|
Screw 3/8-24 x 1 3/4 hex head stainless steel |
4 |
|
|
030 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
21 |
|
|
031 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
9 |
|
|
032 |
999-0632
|
Washer 1/4 split lock stainless steel |
14 |
|
|
033 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
4 |
|
|
034 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
12 |
|
|
035 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
12 |
|
|
036 |
202-0734
|
Vacuum box gasket |
1 |
|
|
037 |
202-0022
|
Vacuum motor mounting gasket |
1 |
|
|
038 |
202-0736
|
Blower ring (OBSOLETE) |
1 |
|
|
040 |
202-0101
|
60 PSI water jet pump |
1 |
|
|
041 |
202-2895
|
36V wand spray pump |
1 |
(optional) |
|
042a |
202-0739
|
Front splash curtain |
1 |
(short) |
|
042b |
202-0740
|
Front splash curtain |
1 |
(long) |
|
043a |
202-0741
|
Curtain mounting strip |
1 |
(short) |
|
043b |
202-0742
|
Curtain mounting strip |
1 |
(long) |
|
044 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
8 |
|
|
045 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
046 |
999-1016
|
Screw 10-32 x 1 1/4 flat head phillips stainless steel |
4 |
|
|
047 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
4 |
|
|
N/S |
999-0998
|
Washer #10 flat stainless steel |
6 |
|
|
