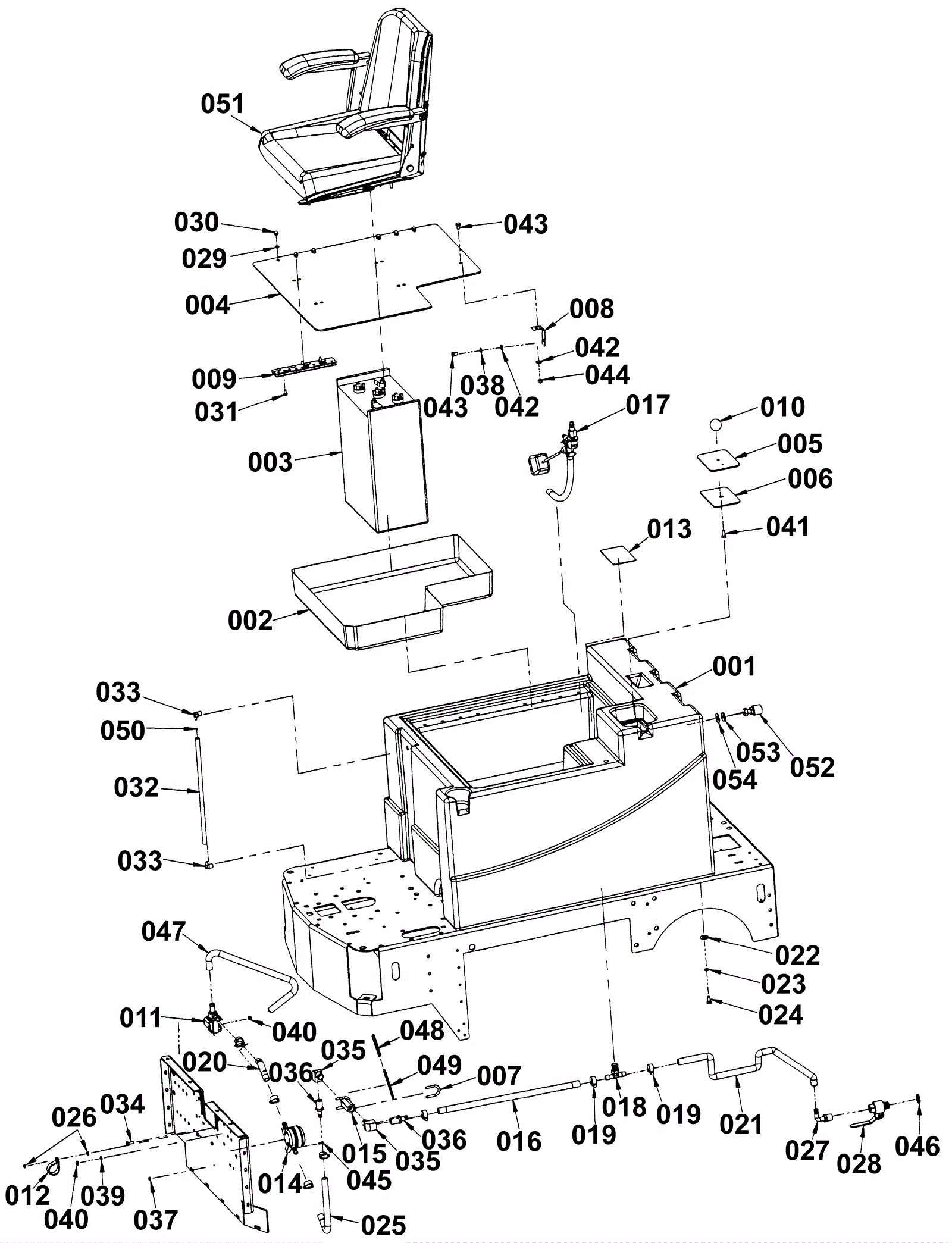

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
202-0666
|
Solution tank (red) |
1 |
|
|
001b |
202-2885
|
Solution tank with fittings (red) |
1 |
|
|
002 |
202-0667
|
Battery tray |
1 |
|
|
004 |
202-0668
|
Battery complete cover |
1 |
|
|
005 |
202-0669
|
Solution tank lid |
1 |
|
|
006 |
202-0670
|
Solution tank lid gasket |
1 |
|
|
007 |
202-1120
|
U bolt 1/4-20 x 1 3/4 |
2 |
|
|
008 |
202-0671
|
Lid strap (OBSOLETE) |
1 |
|
|
009 |
202-0403
|
Hinge |
2 |
|
|
011a |
202-0674
|
Adjustable solution flow valve |
1 |
|
|
011b |
202-2291
|
Orange rubber stopper (OBSOLETE) |
|
|
|
011c |
202-2295
|
Diaphram |
|
|
|
012 |
202-0846
|
Rubber loop clamp |
1 |
|
|
013 |
202-0675
|
Detergent warning plate |
1 |
|
|
014a |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
|
014b |
202-2874
|
Filter screen |
1 |
|
|
015 |
202-0676
|
Ball valve |
1 |
|
|
016 |
202-0677
|
Clear tube 1/2 x 3/4 x 28 |
1 |
|
|
017 |
202-0678
|
Float valve assembly (OBSOLETE) |
1 |
|
|
018 |
202-0679
|
Barbed tee 1/2 x 1/2 |
1 |
|
|
019 |
202-0680
|
Hose clamp |
7 |
|
|
020 |
202-0681
|
Clear tube 1/2 x 3/4 x 5 |
1 |
|
|
021 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
24 in |
|
|
022 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
6 |
|
|
023 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
6 |
|
|
024 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
6 |
|
|
025 |
202-0683
|
Clear tube 1/2 x 3/4 x 15 |
1 |
|
|
026 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
027 |
202-0333
|
Elbow barb |
1 |
|
|
028 |
202-0684
|
Ball valve |
1 |
|
|
029 |
999-0060
|
Washer 1/4 split lock plain finish |
6 |
|
|
030 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
6 |
|
|
031 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
6 |
|
|
032 |
202-0685
|
Solution gauge hose 1/2 x 1/2 x 14 |
1 |
|
|
033 |
202-0686
|
90 degree barb 1/4 x 1/4 |
2 |
|
|
034 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
035 |
202-0687
|
90 degree 1/2 straight elbow |
2 |
|
|
036 |
202-0688
|
Barb 1/2 x 1/2 |
2 |
|
|
037 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
038 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
039 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
040 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
041 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
|
042 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
043 |
999-0981
|
Screw 5-16-18 x 1/2 hex head grade 5 zinc plated |
2 |
|
|
044 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
045 |
999-0074
|
Screw 10-32 x 1/2 round head slotted zinc plated |
2 |
|
|
046 |
999-0330
|
Nut 1/2-13 acorn brass |
1 |
|
|
047 |
202-0689
|
Clear tube 1/2 x 3/4 x 19 |
1 |
|
|
048 |
202-0690
|
Lever grip |
1 |
|
|
049 |
202-0691
|
Ball valve lever |
1 |
|
|
050 |
202-0692
|
Polypropylene ball |
1 |
|
|
051 |
202-0081
|
Seat with switch, cover, locking track and mounting |
1 |
|
|
052 |
202-1312
|
Float switch (includes nut and washer) |
1 |
|
|
053 |
202-2145
|
Washer 3/4 rubber |
1 |
|
|
054 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
1 |
|
|
N/S |
202-2891
|
Screen |
1 |
(screen that overlaps and allows the user to put fill hose thru but closes when removed to keep tank free of debris) |
|
N/S |
202-2150
|
Battery jumper cable kit |
1 |
|
|
