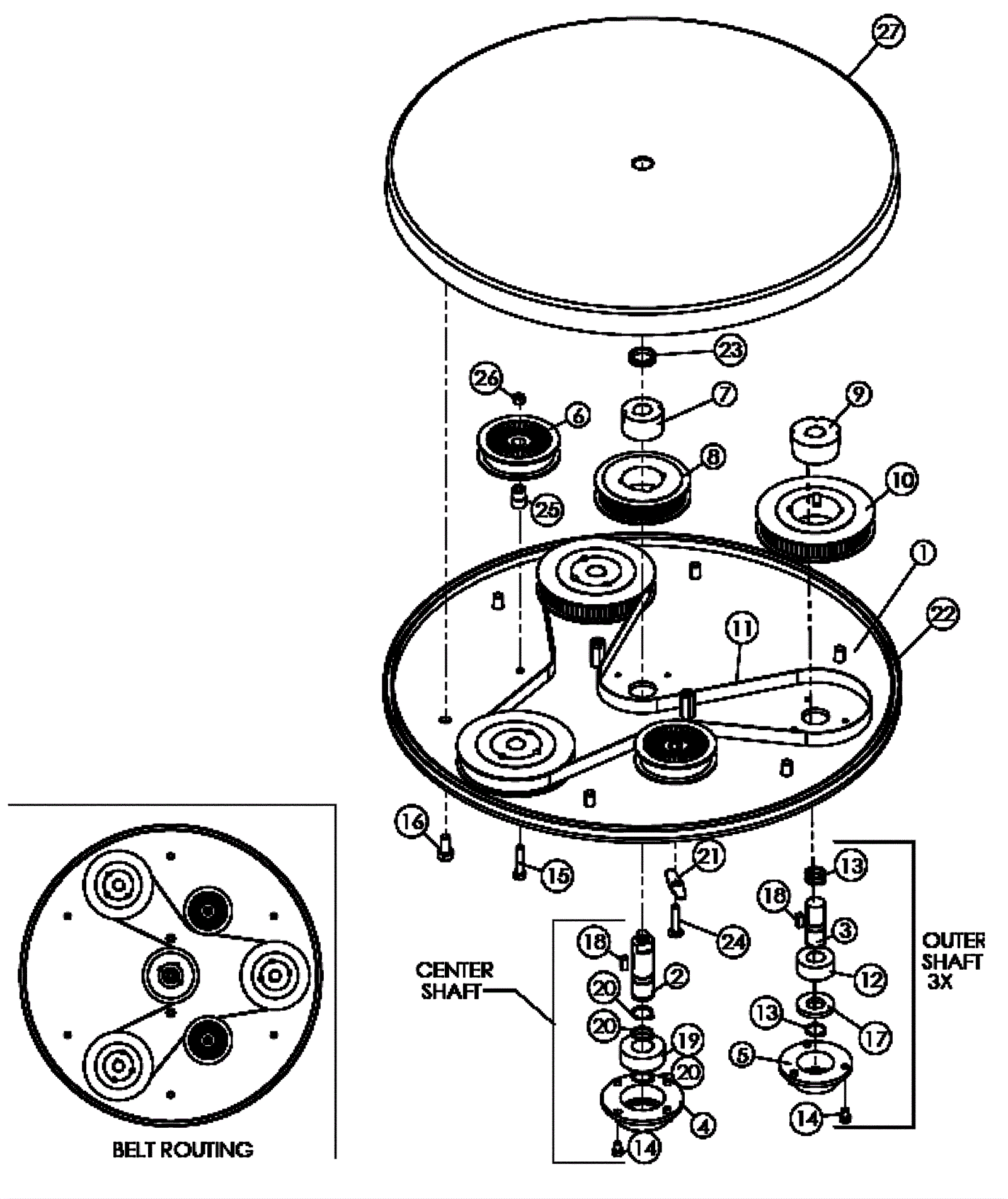

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
201-2178
|
Steel plate |
1 |
|
|
2 |
201-2179
|
Center shaft |
1 |
|
|
3 |
201-2156
|
Outer shaft |
3 |
|
|
4 |
201-2180
|
Center capture |
1 |
|
|
5 |
201-2181
|
Outer capture |
3 |
|
|
6 |
201-2182
|
Flat idler pulley |
2 |
|
|
7 |
201-2183
|
30mm center taper lock bushing |
11 |
|
|
8 |
201-2184
|
Center sprocket |
11 |
|
|
9 |
201-2157
|
25mm center taper lock bushing |
3 |
|
|
10 |
201-2185
|
Outer sprockets |
3 |
|
|
11 |
201-2158
|
Twin power sync belt |
1 |
|
|
12 |
201-2186
|
Output shaft bearing |
3 |
|
|
13 |
201-2159
|
Outer shaft snap ring |
9 |
|
|
14 |
201-2187
|
Screw 5/16-18 x 1/2 hex cap |
13 |
|
|
15 |
999-0107
|
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
1 |
|
|
16 |
999-0115
|
Bolt 1/2-13 x 1 hex head grade 5 |
6 |
|
|
17 |
201-2160
|
Viton seal 25 x 52mm |
3 |
|
|
18 |
201-2188
|
Square end key |
4 |
|
|
19 |
201-2189
|
Center shaft bearing |
1 |
|
|
20 |
201-2190
|
Snap center shaft |
3 |
|
|
21 |
201-2191
|
Dust guard |
1 |
|
|
22 |
201-2161
|
Gearbox seal |
7.5 ft |
|
|
23 |
201-2162
|
V-ring seal |
1 |
|
|
24 |
201-2192
|
Bolt 3/8-16 x 2 carriage head |
1 |
|
|
25 |
201-2193
|
Shoulder adapter |
2 |
|
|
26 |
999-0635
|
Nut 3/8-16 hex stainless steel |
2 |
|
|
27 |
201-2194
|
Drive belt top cover |
1 |
|
|
