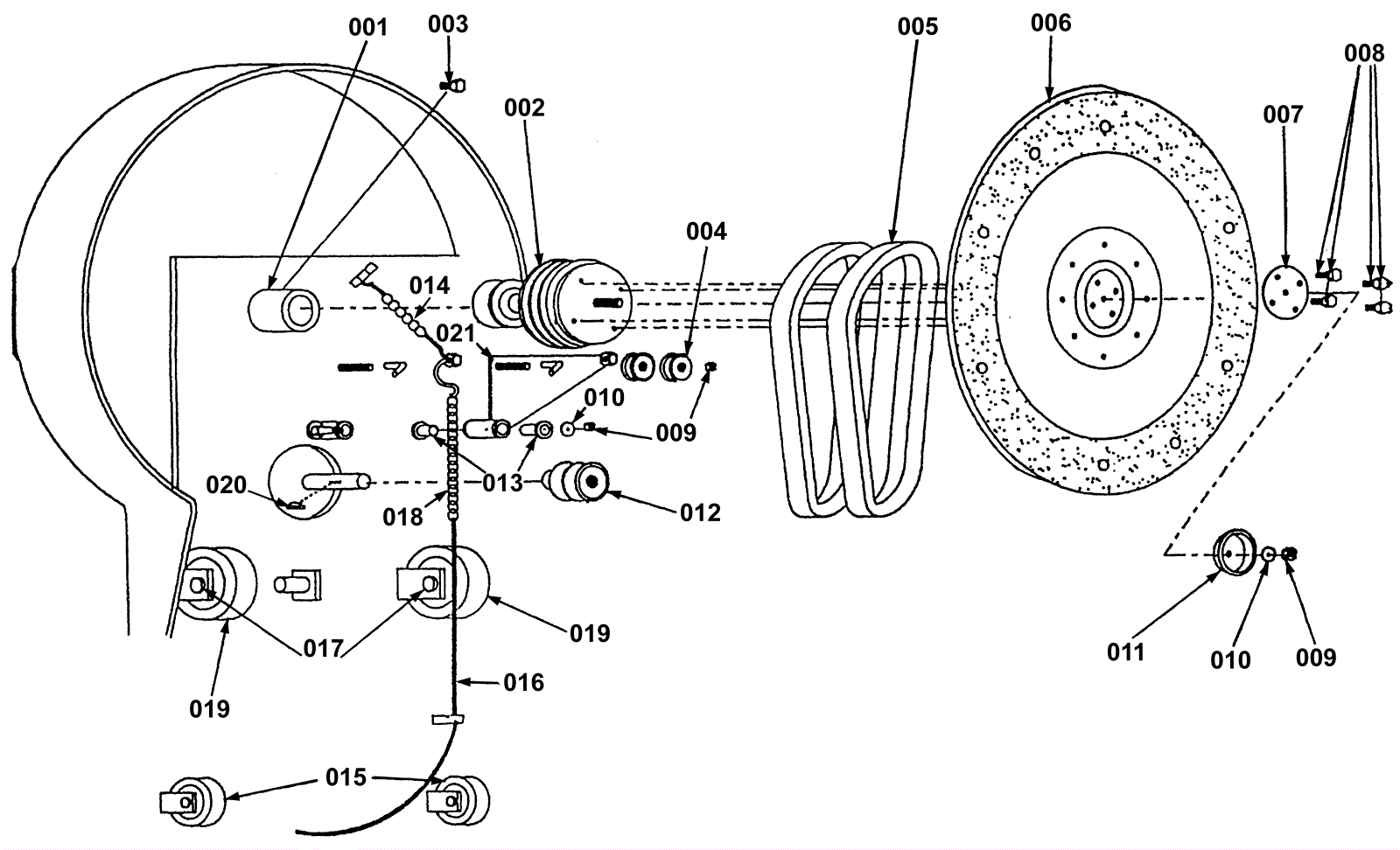

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
Bearing capture |
|
002 |
201-0004
|
Drive shaft assembly |
1 |
|
|
003 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
1 |
|
|
004 |
201-0005
|
Vee idler pulley |
2 |
|
|
005 |
201-0006
|
Belt |
2 |
|
|
006a |
996-1134
|
27 inch pad driver (OBSOLETE) |
1 |
|
|
006b |
991-2206
|
Center-Lok 3 pad holder |
1 |
|
|
007 |
201-0008
|
Washer 8 1/2 plate |
1 |
|
|
008 |
999-0119
|
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
009 |
999-0170
|
Nut 3/8-16 hex plain finish |
4 |
|
|
010 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
011 |
201-0009
|
Drawn cup |
1 |
|
|
012 |
201-0010
|
Engine pulley 14hp |
1 |
|
|
013 |
201-0011
|
Clutching idler 31in (OBSOLETE) |
2 |
|
|
014 |
201-0012
|
Spring 55/64x3/4x5in |
1 |
|
|
015 |
201-0013
|
Poly wheels 3 x 1 1/4 inch |
2 |
|
|
016 |
201-0014
|
Clutch cable |
1 |
|
|
017 |
999-0107
|
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
2 |
|
|
018 |
201-0015
|
Spring 55/64-3/4 x 7 inches |
1 |
|
|
019 |
991-2012
|
5 inch wheel |
2 |
|
|
020 |
201-0017
|
Square keyway |
1 |
|
|
021 |
201-0018
|
Clutching idler 24in |
1 |
|
|
N/S |
162-0007
|
12V 12Ah sealed battery |
1 |
|
|
