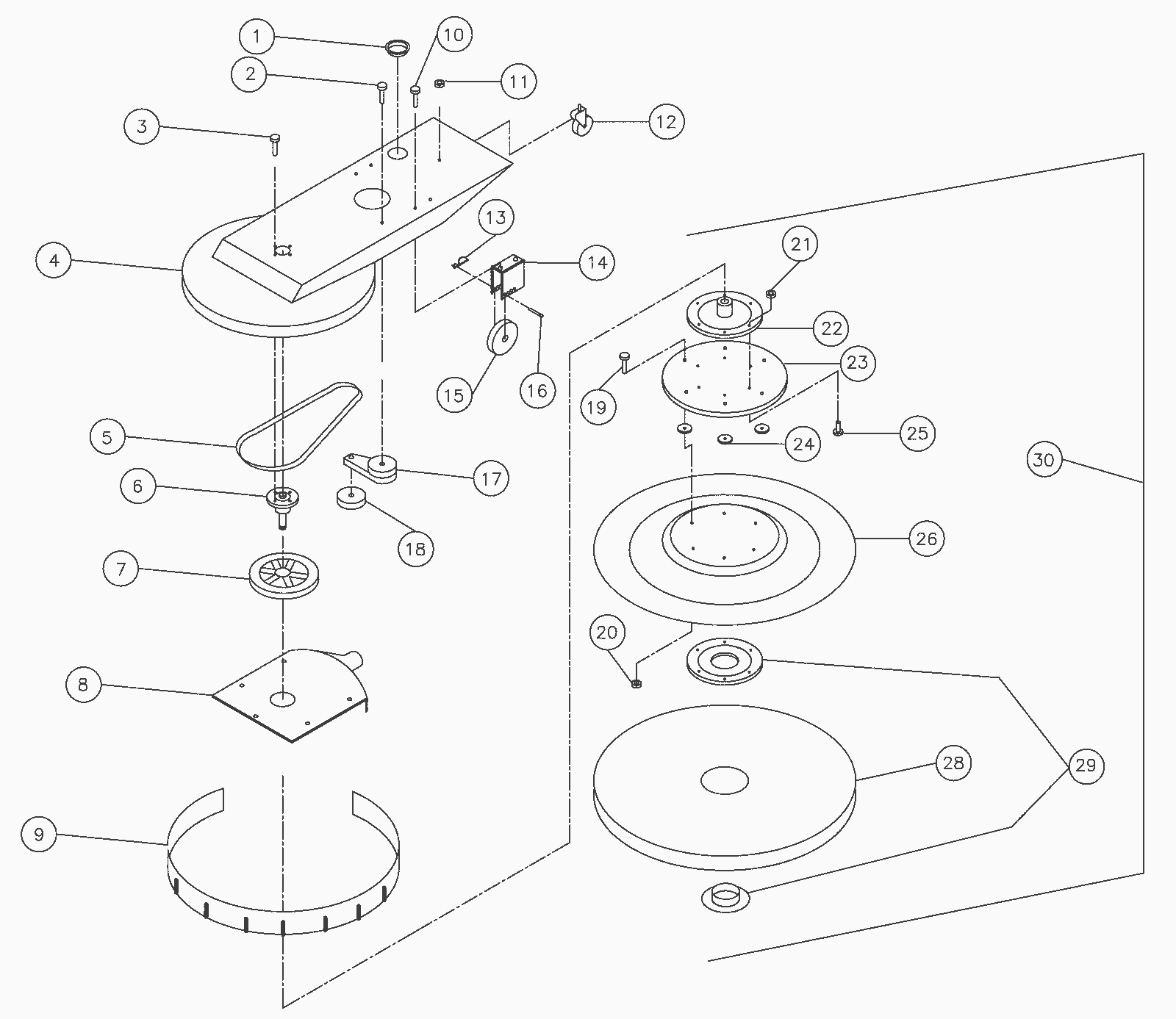

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
201-2004
|
Hose grommet |
1 |
|
|
2 |
999-0107
|
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
1 |
|
|
3 |
999-0115
|
Bolt 1/2-13 x 1 hex head grade 5 |
3 |
|
|
4a |
201-2005
|
21 inch body assembly |
1 |
|
|
4b |
201-2006
|
24 inch body assembly |
1 |
|
|
4c |
201-2007
|
27 inch body assembly |
1 |
|
|
5a |
201-2008
|
21 inch belt |
1 |
|
|
5b |
201-2009
|
24 inch belt |
1 |
|
|
5c |
201-2010
|
27 inch belt |
1 |
|
|
6 |
201-0081
|
Spindle assembly with bub and bearings |
1 |
|
|
7a |
201-2011
|
21 inch pulley |
1 |
|
|
7b |
201-0092
|
Spindle pulley 7 1/2 inch |
1 |
|
|
7c |
201-2012
|
27 inch pulley |
1 |
|
|
8a |
201-2013
|
21 inch dust control plate |
1 |
|
|
8b |
201-2014
|
24 inch dust control plate |
1 |
|
|
8c |
201-2015
|
27 inch dust control plate (OBSOLETE) |
1 |
|
|
9a |
201-2016
|
21 inch dust skirt |
1 |
|
|
9b |
201-2017
|
24 inch dust skirt |
1 |
|
|
9c |
201-2018
|
27 inch dust skirt |
1 |
|
|
10 |
201-2019
|
Bolt 5/16-18 x 1 |
4 |
|
|
11 |
201-0089
|
Nut 1/2-13 x 1 1/2 |
1 |
|
|
12 |
201-0088
|
Swivel castor |
1 |
|
|
13 |
201-0085
|
Hitch pin clip |
2 |
|
|
14a |
201-0087
|
Wheel bracket (OBSOLETE) |
2 |
(since this part is no longer available you can upgrade the wheel and bracket by ordering 14b-14f) |
|
14b |
201-2111
|
Heavy duty wheel bracket |
2 |
|
|
14c |
201-2112
|
Heavy duty wheel |
2 |
|
|
14d |
999-0042
|
Bolt 3/8-16 x 3 hex head grade 5 zinc plated |
2 |
(2 req per wheel) |
|
14e |
201-0072
|
Nut 3/8-16 stover lok |
2 |
(2 req per wheel) |
|
14f |
999-0016
|
Washer 1/4 flat plain finish |
2 |
(2 req per wheel) |
|
15 |
201-0122
|
6 inch wheel |
2 |
|
|
16 |
201-0086
|
Clevis pin |
2 |
|
|
17 |
201-0084
|
Belt tensioner |
1 |
|
|
18 |
201-0083
|
Tensioner pulley |
1 |
|
|
19 |
201-2020
|
Elevator bolt |
6 |
|
|
20 |
201-2021
|
Nut 5/16-18 |
6 |
|
|
21 |
201-2021
|
Nut 5/16-18 |
6 |
|
|
22 |
N/A
|
Not available |
1 |
(Hub) |
|
23 |
201-2022
|
Flex plate |
1 |
|
|
24 |
N/A
|
Not available |
6 |
(Riser) |
|
25 |
201-2023
|
Bolt |
6 |
|
|
26a |
201-2024
|
21 inch flex lok with riser (OBSOLETE) |
1 |
|
|
26b |
201-1085
|
24 inch pad driver |
1 |
|
|
26c |
201-2026
|
27 inch flex lok with riser (OBSOLETE) |
1 |
|
|
28a |
N/A
|
Not available |
1 |
(21 inch pad) |
|
28b |
N/A
|
Not available |
1 |
(24 inch pad) |
|
28c |
N/A
|
Not available |
1 |
(27 inch pad) |
|
29 |
201-1083
|
Pad holder |
1 |
|
|
30a |
201-1084
|
21 inch pad driver |
1 |
(includes 19-29) |
|
30b |
201-1085
|
24 inch pad driver |
1 |
(includes 19-29) |
|
30c |
201-1086
|
27 inch pad driver |
1 |
(includes 19-29) |
|
