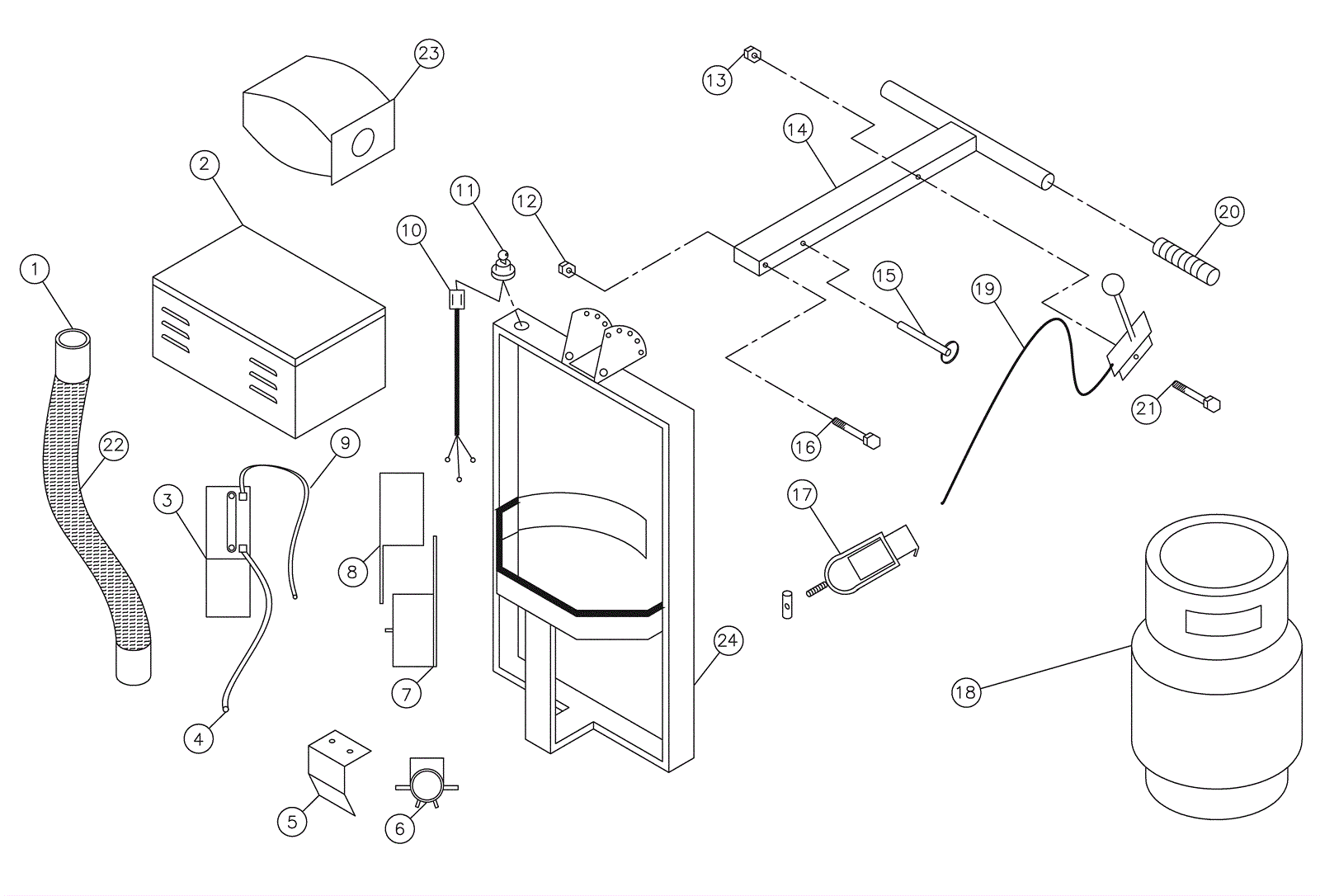

LOWRIDER 27 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 201-1033 Hose cuff $5.58 2 usually ships 3-11 days
2 201-2033 Dust bag box assembly (OBSOLETE) $118.75 1 usually ships 1-5 days
3 162-0007 12V 12Ah sealed battery $124.80 1 ships same day
4 201-0059 Battery cable 16 1/2 inch $22.19 2 usually ships 3-11 days
5 201-2035 Solenoid cover $25.03 1 usually ships 1-5 days
6 201-0061 Starter solenoid $66.72 1 usually ships 3-11 days
7 201-0025 Bottom battery cover $39.56 1 usually ships 3-11 days
8 201-0024 Battery top cover $260.87 1 usually ships 3-11 days
9 201-0073 Battery cable 26 inch $14.95 1 usually ships 1-5 days
10 201-0075 Wire harness $73.06 1 usually ships 3-11 days
11a 201-0074 Key switch $46.29 1 usually ships 3-11 days
11b 201-2114 Key (sold each) $6.20 1 usually ships 3-11 days
12 201-0072 Nut 3/8-16 stover lok $1.75 1 usually ships 3-11 days
13 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 1 ships same day
14 201-2036 T handle $90.10 1 usually ships 1-5 days
15 201-2037 Release pin $23.76 1 usually ships 3-11 days
16 201-2038 Bolt $1.61 1 usually ships 1-5 days
17 201-1060 Toggle & nut $24.80 1 usually ships 3-11 days
18 201-0065 Cylinder 20 lb $582.83 1 usually ships 3-11 days
19 201-0064 Throttle cable $51.16 1 usually ships 3-11 days
20 201-1082 Handle grip $4.59 2 usually ships 3-11 days
21 201-2039 Bolt $1.90 1 usually ships 1-5 days
22 201-1030 Vacuum hose (sold by the foot) $4.73 3 usually ships 3-11 days
23 201-0117 Dust control bag $8.27 1 usually ships 3-11 days
24 201-2040 Handle assembly $315.55 1 usually ships 1-5 days
