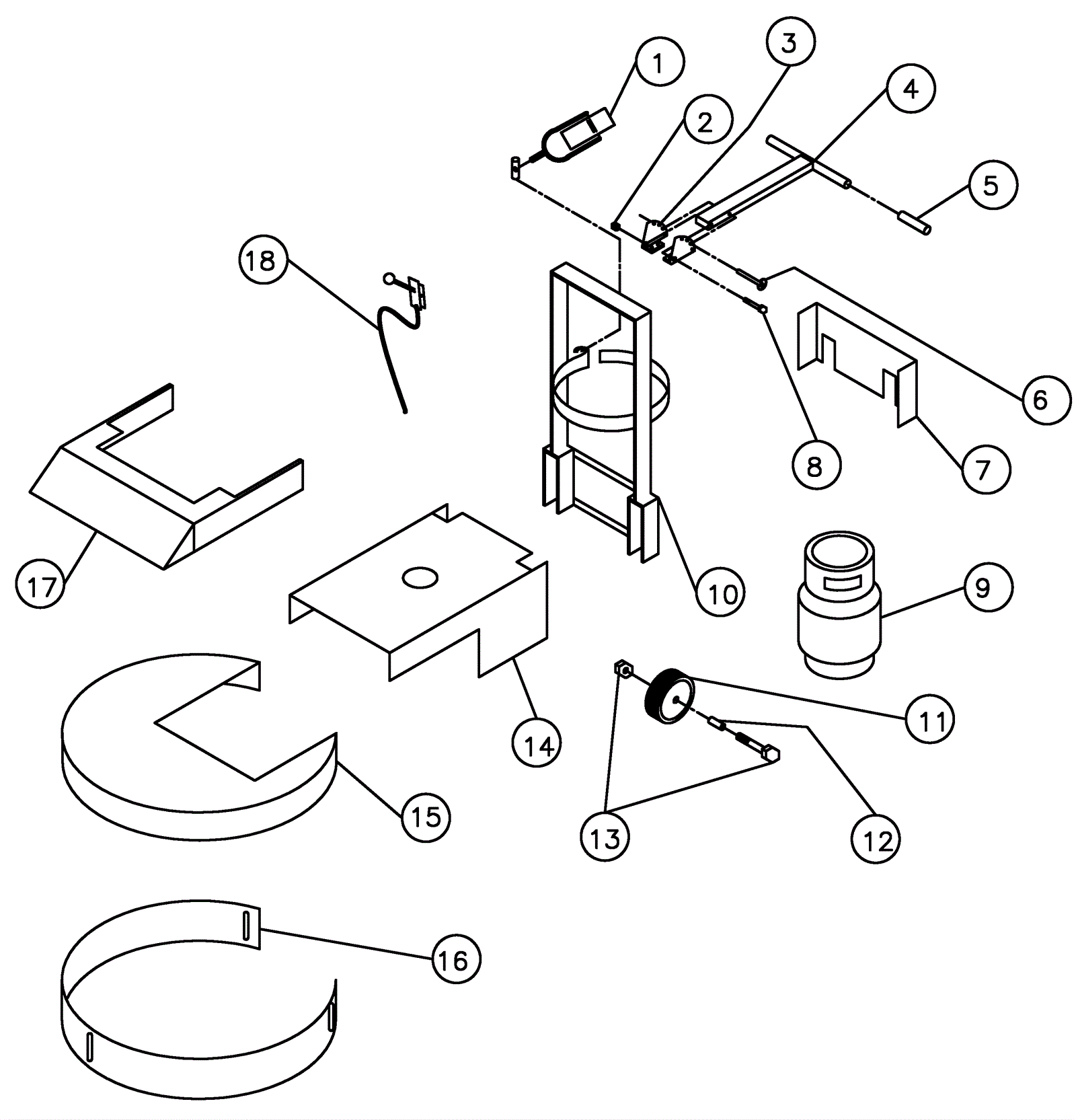

SIDEWINDER P24KS17 Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 201-1060 Toggle & nut $27.28 1 usually ships 3-11 days
2 201-0072 Nut 3/8-16 stover lok $1.93 5 usually ships 3-11 days
3a 201-0068 Handle bracket left $40.08 1 usually ships 1-5 days
3b 201-0070 Handle bracket right $40.27 1 usually ships 1-5 days
4 201-0069 T-handle $74.62 1 usually ships 1-5 days
5 201-0066 Handle grip (OBSOLETE) $4.98 2 usually ships 3-11 days
6 201-0067 Lock pin $21.88 1 usually ships 3-11 days
7 201-1061 Kick plate $95.81 1 usually ships 1-5 days
8 999-0042 Bolt 3/8-16 x 3 hex head grade 5 zinc plated $1.21 1 ships same day
9 201-0065 Cylinder 20 lb $641.11 1 usually ships 3-11 days
10 201-1062 Handle assembly $744.82 1 usually ships 1-5 days
11 201-0037 6 inch wheel $57.48 2 usually ships 1-5 days
12 201-0039 Spanner bushing $3.26 2 usually ships 1-5 days
13 201-0038 Axle bolt and nut $4.25 2 usually ships 1-5 days
14a 201-1064 Body $1,570.65 1 (30 inch model) usually ships 1-5 days
14b 201-1067 Body $1,570.65 1 (24 inch model) usually ships 1-5 days
15a 201-1065 Drive brush cover $910.24 1 (30 inch model) usually ships 1-5 days
15b 201-1068 Drive brush cover $523.33 1 (24 inch model) usually ships 1-5 days
16a 201-1035 30 inch splash skirt $103.07 1 (30 inch model) usually ships 3-11 days
16b 201-1069 Splash skirt $103.07 1 (24 inch model) usually ships 1-5 days
17 201-1066 Belt cover $499.17 1 usually ships 1-5 days
18 201-0064 Throttle cable $51.16 1 usually ships 3-11 days
