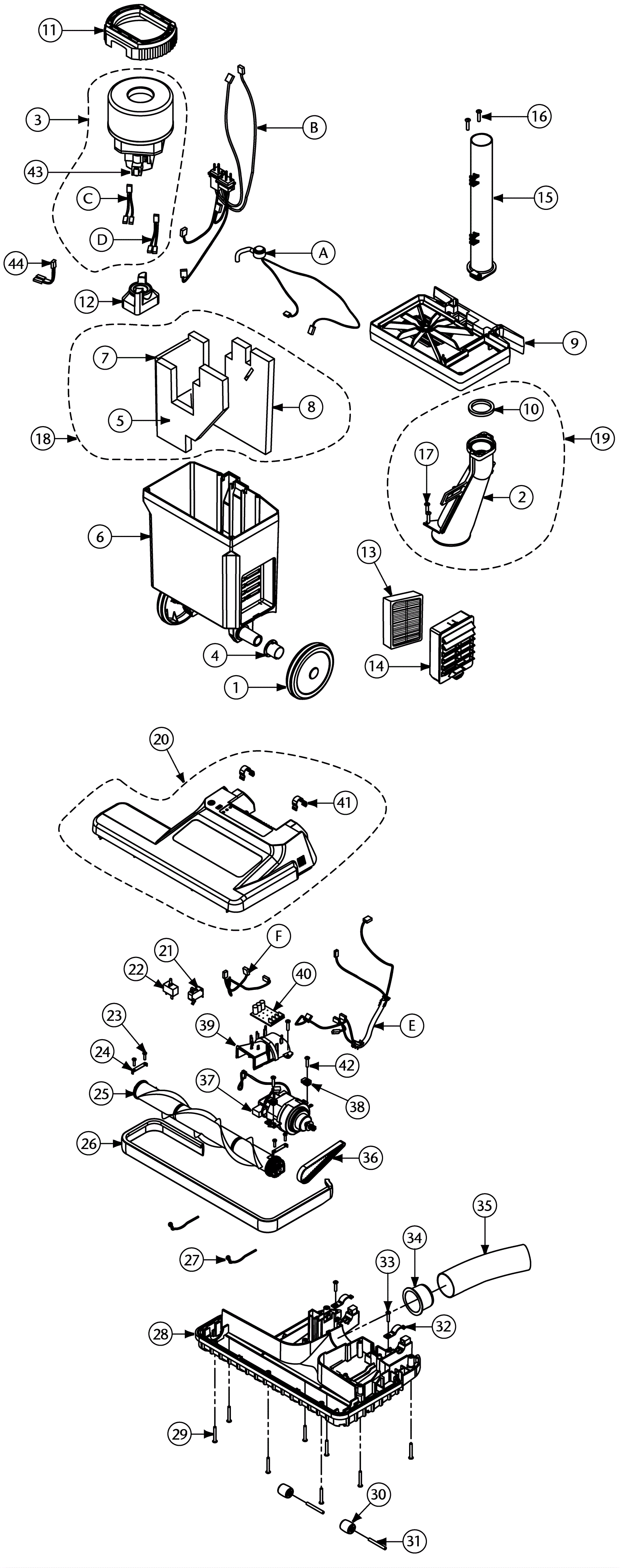

Lower Assembly

#PartDescription ReqNotesAvailability
1 199-0521 Rear wheel (pkg of 2) 1
2 199-0374 Air duct 1
3 199-0254 120V vacuum motor assembly 1
4 199-0178 Pivot bearing (pkg of 2) 1
5 199-0219 Front sound foam 1
6 199-0220 Motor housing (charcoal) 1
7 199-0221 Left sound foam 1
8 199-0222 Rear sound foam 1
9 199-0223 Bulkhead (dark gray) 1
10 199-0224 Lower air duct seal 1
11 199-0227 Upper motor mount 1
12 199-0226 Lower motor mount 1
13 199-0169 Exhaust filter 1
14 199-0166 Exhaust filter cover 1
15 199-0225 Upper Proforce 1500 air duct 1
16 199-0228 Screw 4.2mm x 12mm phillips (pkg of 2) 1
17 199-0229 Screw M4 x 19mm phillips (pkg of 2) 1
18 199-0230 Motor housing sound filter kit 1 (includes 5, 7 and 8)
19 199-0231 Air duct kit 1 (includes 2, 10 and 16)
20 199-0471 Power nozzle cover with detent springs and decal 1
21 199-0233 Lockout safety switch 1
22 199-0234 Circuit breaker 1
23 199-0235 Screw 2.9mm x 35mm phillips (pkg of 4) 1
24 199-0236 Brush roll retainer (pkg of 2) 1
25a 199-0170 15 inch Brush roll 1
25b 991-9135 15 inch brush roll (wooden) 1
27 199-0240 Formed wire brace (pkg of 2) 1
28 199-0241 Power nozzle baseplate 1
29 199-0242 Screw M4 x 35mm phillips (pkg of 8) 1
30 199-0456 Front roller kit 1
31 199-0456 Front roller kit 1
32 199-0245 Rear wheel clamp (pkg of 2) 1
33 199-0246 Screw M4 x 19mm phillips (pkg of 5) 1
34 199-0182 Sleeve 1
35 199-0174 Hose 1
36 199-0173 Belt 1
37 199-0168 120V brush motor 1
38 199-0247 Motor vibration grommet (pkg of 2) 1
39 199-0248 Air duct cover 1
40 199-0249 Vacuum operation indicator board 1
41 199-0250 Locking detent spring (pkg of 2) 1
42 199-0251 Screw 4.2mm x 19mm phillips (pkg of 2) 1
43 199-0252 Carbon brush (pkg of 2) 1
44a 199-0376 Thermal protector (OBSOLETE) 1
44b 199-0253 Wire harness kit 1
