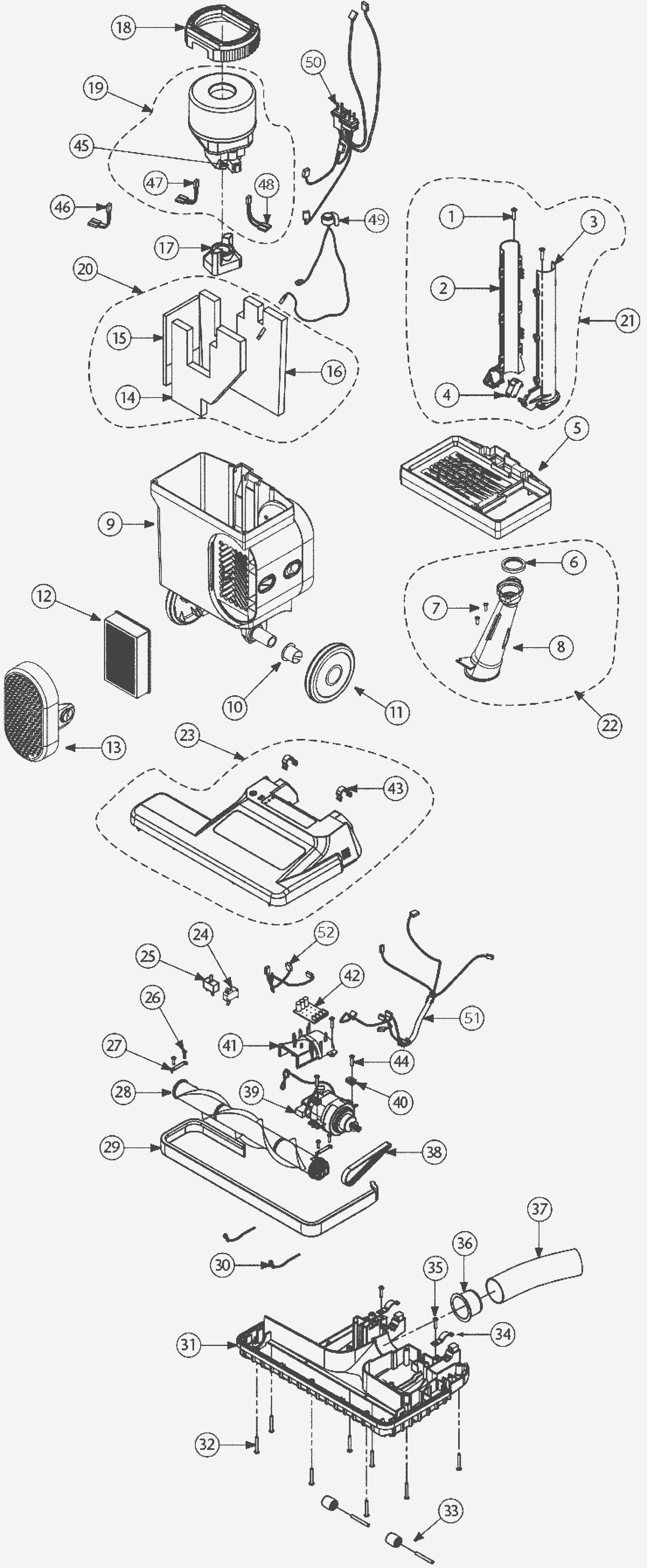

Base Assembly

#PartDescription ReqNotesAvailability
1 199-0229 Screw M4 x 19mm phillips (pkg of 2) 2
2 199-0371 Upper left wand guide 1
3 199-0372 Upper right wand guide 1
4 199-0373 Lockout switch 1
5 199-0467 Bulkhead (dark gray) 1
6 199-0224 Lower air duct seal 1
7 199-0229 Screw M4 x 19mm phillips (pkg of 2) 2
8 199-0374 Air duct 1
9 199-0468 Motor housing (charcoal) 1
10 199-0178 Pivot bearing (pkg of 2) 2
11 199-0521 Rear wheel (pkg of 2) 2
13 199-0470 HEPA exhaust filter cover 1
14 199-0219 Front sound foam 1
15 199-0221 Left sound foam 1
16 199-0222 Rear sound foam 1
17 199-0226 Lower motor mount 1
18 199-0227 Upper motor mount 1
19 199-0254 120V vacuum motor assembly 1 (includes 45, 47-48)
20 199-0230 Motor housing sound filter kit 1 (includes 14-16)
21 199-0771 Wand kit 1 (includes 1-4)
22 199-0231 Air duct kit 1 (includes 6-8)
23a 199-0471 Power nozzle cover with detent springs and decal 1 (includes 43) (1500XP)
23b 199-0473 Power nozzle cover with detent springs and decal 1 (includes 43) (1200XP)
24 199-0233 Lockout safety switch 1
25 199-0234 Circuit breaker 1
26 199-0235 Screw 2.9mm x 35mm phillips (pkg of 4) 2
27 199-0236 Brush roll retainer (pkg of 2) 1
28a 199-0170 15 inch Brush roll 1 (1500XP)
28b 199-0446 12 inch brush roll power nozzle 1 (1200XP)
29b 199-0776 Vinyl bumper 1 (1200XP)
30 199-0240 Formed wire brace (pkg of 2) 2
31a 199-0241 Power nozzle baseplate 1 (1500XP)
31b 199-0475 Power nozzle baseplate 1 (1200XP)
32 199-0242 Screw M4 x 35mm phillips (pkg of 8) 8
33 199-0456 Front roller kit 2
34 199-0245 Rear wheel clamp (pkg of 2) 2
35 199-0246 Screw M4 x 19mm phillips (pkg of 5) 2
36 199-0182 Sleeve 1
37 199-0174 Hose 1
38 199-0173 Belt 1
39 199-0168 120V brush motor 1
40 199-0247 Motor vibration grommet (pkg of 2) 1
41 199-0248 Air duct cover 1
42 199-0249 Vacuum operation indicator board 1
43 199-0250 Locking detent spring (pkg of 2) 2
44 199-0251 Screw 4.2mm x 19mm phillips (pkg of 2) 1
45 199-0251 Screw 4.2mm x 19mm phillips (pkg of 2) 1 PT105281
46 199-0376 Thermal protector (OBSOLETE) 1
47 N/A Not available 1 (red jumper harness) (only available with 19 and KIT1)
48 N/A Not available 1 (white jumber harness) (only available with 19 and KIT1)
49 N/A Not available 1 (bag full indicator sensor) (only available with KIT1)
50 N/A Not available 1 (main power supply harness) (only available with KIT1)
51 N/A Not available 1 (power nozzle wire harness) (only available with KIT1)
52 N/A Not available 1 (power nozzlze switch harness) (only available with KIT1)
KIT1 199-0301 Wire harness kit 1 (includes 47-52)
