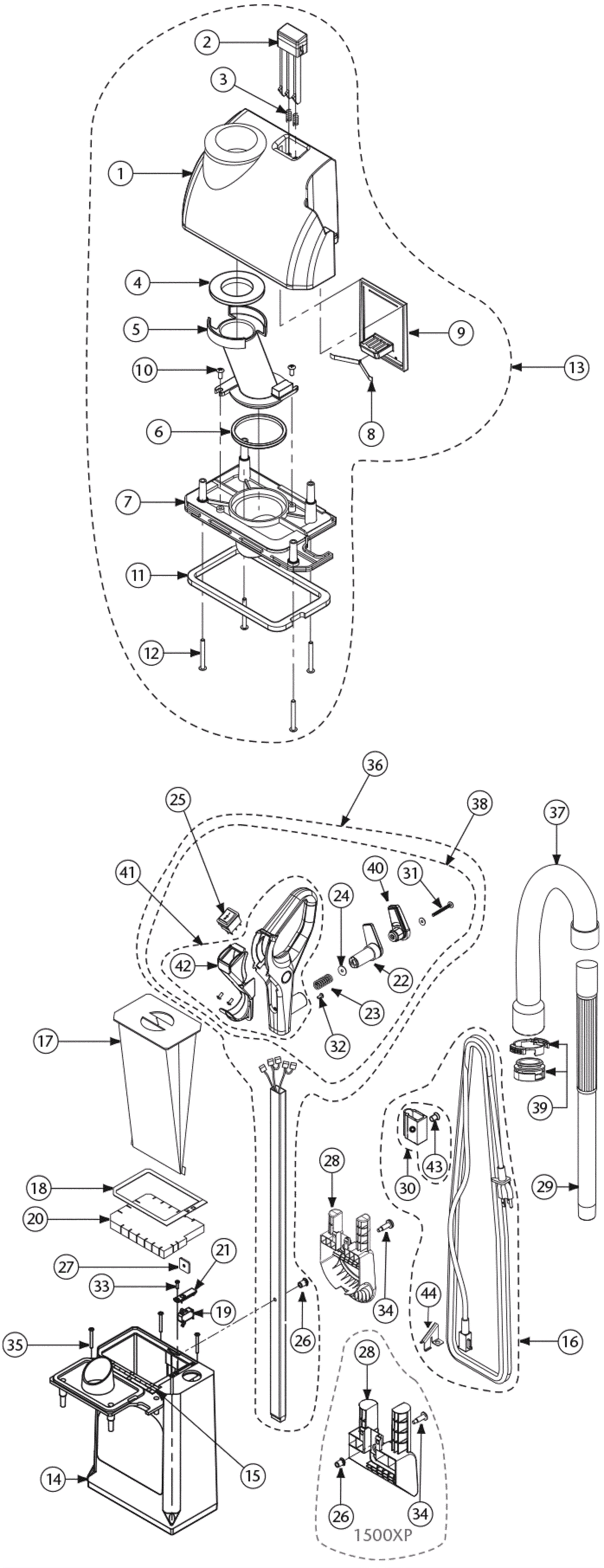

Upper Assembly

#PartDescription ReqNotesAvailability
1 199-0356 Bag housing cover (gray) 1
2 199-0189 Bag cover release latch 1
3 199-0192 Spring 2
4 199-0357 Transition duct seal 1
5 199-0358 Transition duct 1
6 199-0359 Transition duct seal 1
7 199-0360 Bag cover nozzle plate 1
8 199-0193 Spring 1
9 199-0190 Flex plate 1
10 199-0361 Screw M4 x 9.5mm phillips (pkg of 2) 2
11 199-0191 Bag cover gasket 1
12 199-0773 Screw 4.2mm x 35mm phillips (pkg of 4) 4
13 199-0362 Filter cover kit with riveted hinge and 6 rivets 1 (includes 1-12)
14a 199-0363 Bag housing assembly with riveted hinge, nozzle plate, decal 1 (1500XP)
14b 199-0772 Bag housing assembly with riveted hinge, nozzle plate, decal 1 (1200XP)
15 199-0198 Rivet (pkg of 6) 1
16 199-0171 16/3 power cord 50 foot 1 (includes 30, 44)
17 199-0181 Paper bags (pkg of 10) 1
18 199-0200 Bag housing seal gasket 1
19 199-0201 Filter lock out switch 1
20 199-0167 Motor intake filter 1
21 199-0202 Filter lockout switch cover 1
22 199-0205 Cord wrap bracket 1
23 199-0206 Compression spring 1
24 199-0207 Washer 2
25 199-0165 Rocker switch 1
26 199-0217 Bushing 1
27 199-0364 Nut plate 1
28 199-0210 Carry handle 1
29 199-0302 Wand 1
30 199-0213 Strain relief kit 1 (includes 43)
31 199-0208 Screw 4mm x 38mm phillips round head 1
32 199-0204 Screw M4 x 10mm x .07 pitch 1
33 199-0203 Screw 2.9mm x 13mm phillips head 1
34 199-0216 Screw 1
35 199-0773 Screw 4.2mm x 35mm phillips (pkg of 4) 4
36 199-0775 Handle and tube assembly 1 (includes 26, 38)
37 199-0293 Hose assembly with cuffs 1 (includes 39)
38 199-0367 Handle assembly 1 (includes 22-25, 31-32, 40-41)
39 199-0368 Quick release hose cuff 1
40 199-0465 Bumper 1
41 199-0370 Top handle assembly 1 (includes 42) (1500XP)
42 199-0652 Handle bezel 1 (1500XP)
43 199-0443 Ratchet fastener 1
44 199-0466 Cord retention clip 1
