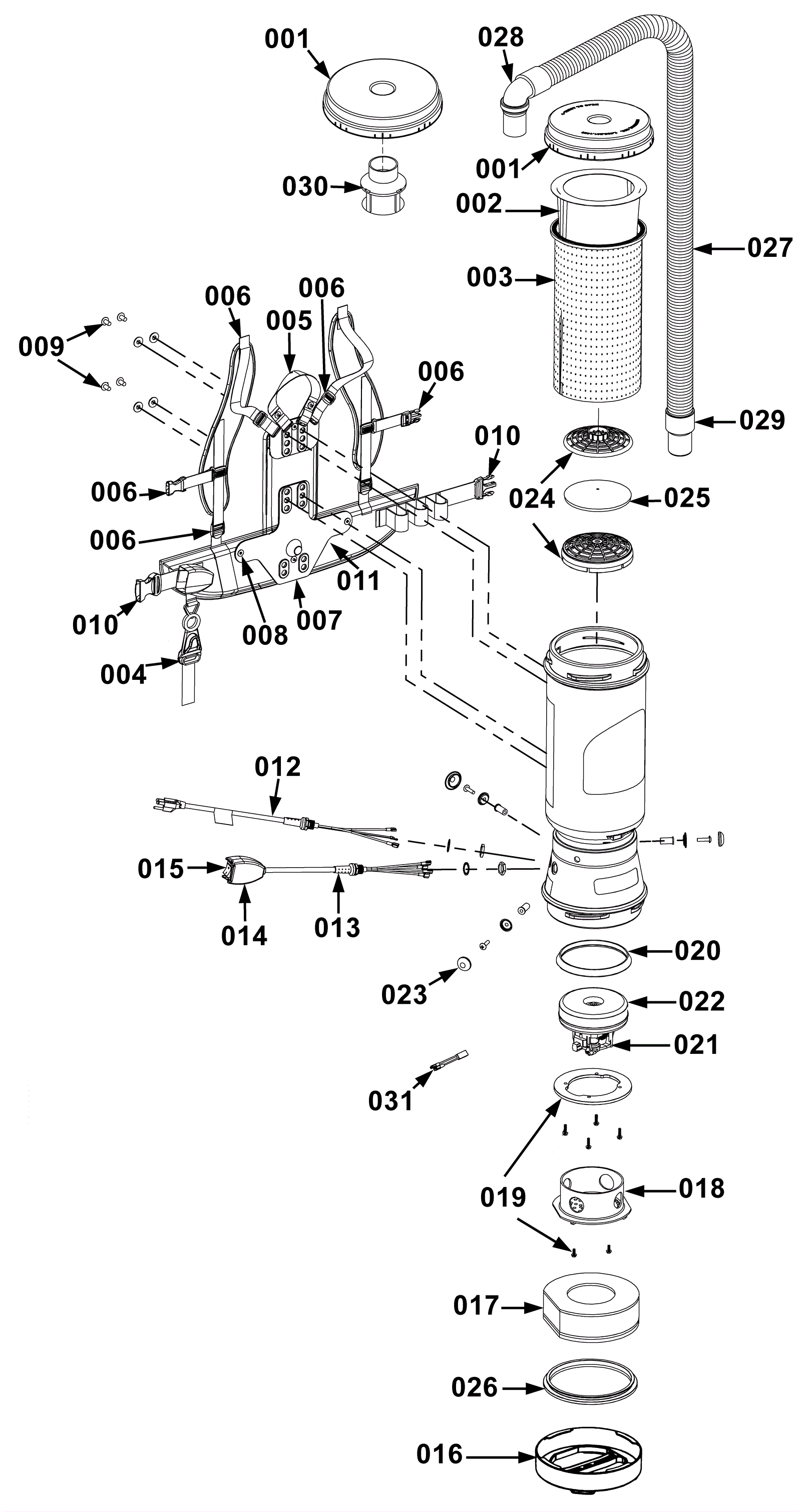

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
199-0349
|
Twist cap (black) |
1 |
|
|
002a |
199-0002
|
Paper bag with 5 3/4 inch opening and 1 inch ring (pkg of 10 |
1 |
(OEM) |
|
002b |
991-9003
|
Paper vacuum bags (pkg of 10) (VP10 & SuperCoach) |
1 |
(NON-OEM) |
|
003 |
199-0003
|
Cloth bag |
1 |
|
|
004 |
199-0350
|
Cord holder |
1 |
|
|
005 |
199-0004
|
Carrying handle with rivet and washer set |
1 |
|
|
006a |
199-0077
|
Shoulder strap assembly |
1 |
(includes 006b, 006c, 006d) |
|
006b |
199-0006
|
Top shoulder strap plastic adjustment buckle |
1 |
|
|
006c |
199-0007
|
Bottom shoulder strap plastic adjustment buckle |
1 |
|
|
006d |
199-0276
|
Sternum strap buckles (latch and keeper) (OBSOLETE) |
1 |
|
|
007 |
199-0275
|
Backplate assembly |
1 |
(includes 008) |
|
008 |
199-0009
|
Barrel nut connection set for backplate |
1 |
|
|
009 |
199-0088
|
Backplate connection set (4 screws with washers, standoffs) |
1 |
|
|
010 |
199-0745
|
Waist belt keeper and latch |
1 |
|
|
011a |
199-0012
|
Waist belt assembly |
1 |
(includes 010) |
|
011b |
199-0013
|
Strap assembly |
1 |
(includes 006a and 011) |
|
011c |
199-0079
|
Two-piece backplate assembly |
1 |
(includes 005, 006, 007, 008, 009 and 011) |
|
012a |
199-0016
|
14/3 18 inch pigtail cord |
1 |
|
|
012b |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
|
|
013a |
199-0015
|
On/off switch cord assembly |
1 |
(includes 014 and 015) |
|
013b |
199-0017
|
Switch cord with crimps |
1 |
|
|
014 |
199-0037
|
Switch box with velcro and switch (new) |
1 |
|
|
015a |
199-0018
|
On/off switch |
1 |
|
|
015b |
199-0352
|
Switch box with velcro |
1 |
|
|
016 |
199-0353
|
Bottom twist cap (black) |
1 |
|
|
017 |
199-0019
|
Sound muffler |
1 |
|
|
018 |
199-0354
|
Motor shroud cover with screws |
1 |
|
|
019a |
199-0039
|
Motor compression ring with screws |
1 |
|
|
019b |
199-0040
|
Compression ring screw set (pkg of 4) |
1 |
|
|
020 |
199-0020
|
Tetraseal gasket |
1 |
|
|
021a |
199-0307
|
Carbon brush (pkg of 2) |
1 |
(Domel motor) |
|
021b |
199-0022
|
Carbon brush (pkg of 2) |
1 |
(Ametek motor) |
|
022a |
199-0026
|
120V vacuum motor assembly with crimps |
1 |
|
|
022b |
199-0041
|
Motor ground connection and wire clamp set |
1 |
|
|
022c |
199-0027
|
Motor crimp set (4 female, 4 male, ground crimp connector) |
1 |
|
|
023 |
199-0042
|
Motor mounting set (3 nuts, 3 bolts, 3 washers, 3 covers) |
1 |
|
|
024 |
199-0029
|
Dome filter with foam media |
1 |
|
|
025a |
199-0030
|
Intake dome filter |
1 |
|
|
025b |
199-0031
|
High filtration disc (pkg of 2) |
1 |
(optional) |
|
026 |
199-0355
|
Bottom twist cap gasket |
1 |
|
|
027 |
199-0032
|
1 1/2 inch static-dissipating hose with cuffs |
1 |
|
|
028 |
199-0256
|
1 1/2 inch double swivel elbow cuff |
1 |
|
|
029 |
199-0074
|
1 1/2 inch swivel cuff |
1 |
|
|
030 |
199-0035
|
Filter guard |
1 |
(optional) |
|
031 |
199-0347
|
Thermal protector |
1 |
|
|
