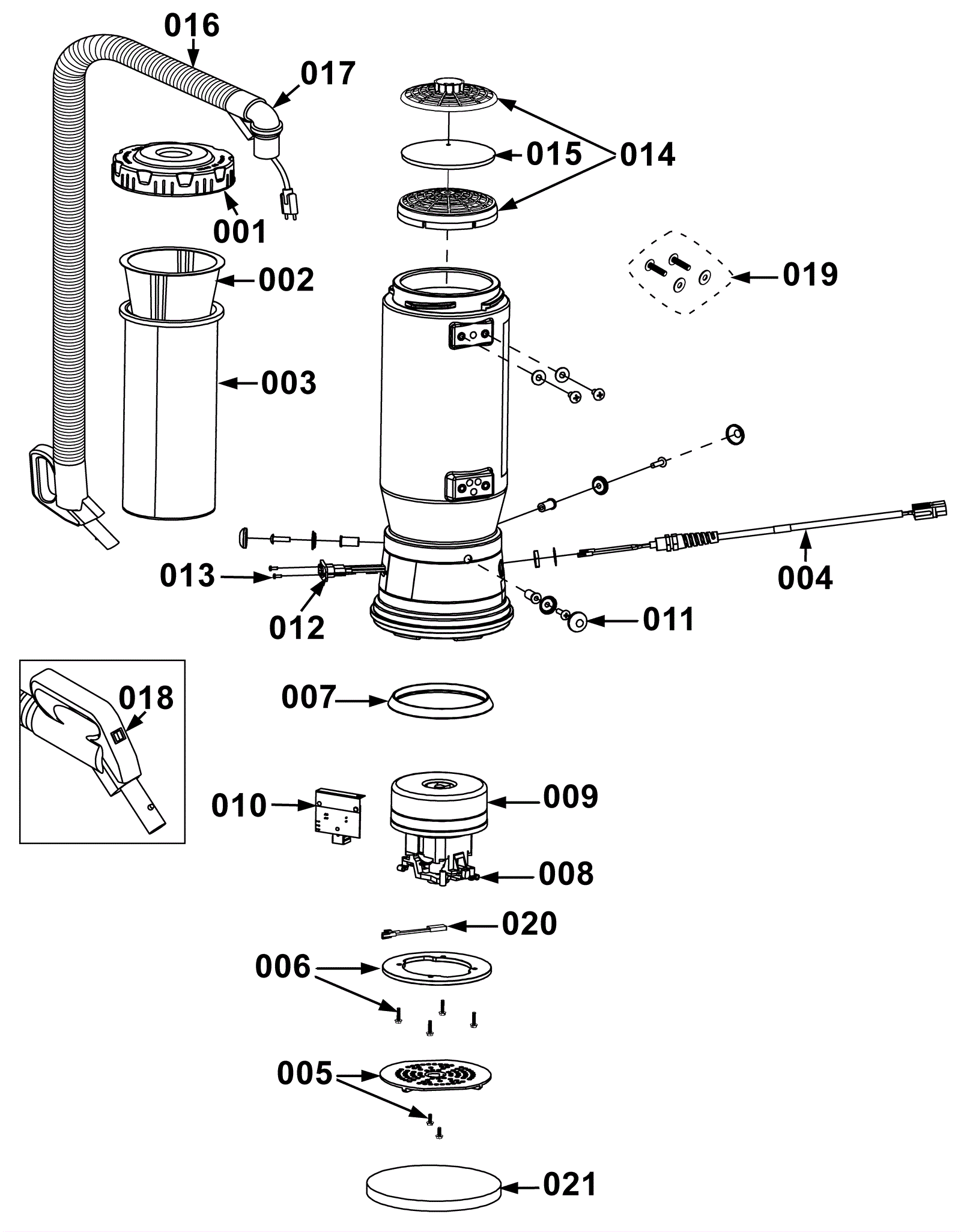

GOCART VAC Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 199-0257 Twist cap black $45.97 1 usually ships 5-16 days
002 199-0049 Paper bag with 5 1/4 inch opening and 1/2 inch ring (pkg of $22.54 1 ships same day
003 199-0048 Micro cloth filter $30.45 1 ships same day
004 199-0337 Power cord assembly $89.78 1 usually ships 1-5 days
005 199-0354 Motor shroud cover with screws $28.02 1 usually ships 5-16 days
006a 199-0039 Motor compression ring with screws $20.09 1 ships same day
006b 199-0040 Compression ring screw set (pkg of 4) $5.19 1 usually ships 5-16 days
007 199-0020 Tetraseal gasket $18.83 1 ships same day
008 199-0338 Carbon brush set $52.82 1 usually ships 5-16 days
009a 199-0339 Vacuum motor with crimps $265.34 1 usually ships 5-16 days
009b 199-0340 Vacuum motor assembly with seal, compression ring and relay $426.50 1 (includes references 006, 007, 008, 009) usually ships 1-5 days
010 199-0341 Battery control module $120.73 1 usually ships 5-16 days
011 199-0042 Motor mounting set (3 nuts, 3 bolts, 3 washers, 3 covers) $16.34 1 usually ships 5-16 days
012 199-0342 Receptacle 2-wire with crimps $9.31 1 usually ships 1-5 days
013 199-0343 Receptacle screw set $3.70 1 usually ships 1-5 days
014 199-0029 Dome filter with foam media $12.57 1 ships same day
015a 199-0030 Intake dome filter $3.19 1 usually ships 5-16 days
015b 199-0031 High filtration disc (pkg of 2) $16.86 1 (optional) usually ships 5-16 days
016 199-0032 1 1/2 inch static-dissipating hose with cuffs $37.35 1 usually ships 3-4 days
017 199-0344 1 1/4 inch double swivel elbow cuff $19.12 1 usually ships 5-16 days
018 199-0345 Switch $14.19 1 usually ships 5-16 days
019 199-0346 Vacuum attachment hardware for cart kit $4.64 1 usually ships 1-5 days
020 199-0347 Thermal protector $22.94 1 usually ships 5-16 days
021 199-0348 Exhaust muffler $10.43 1 usually ships 1-5 days
