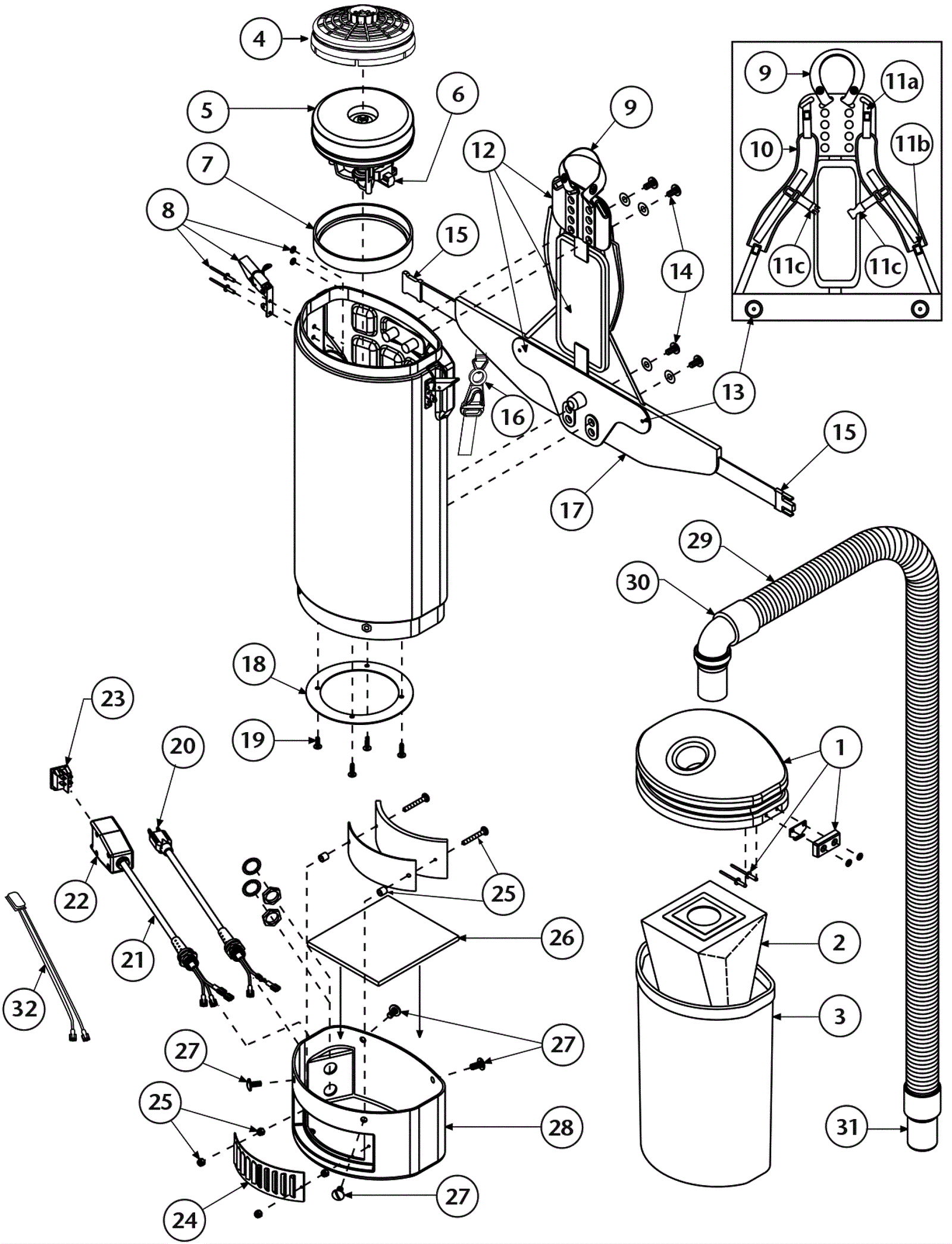

Entire Assembly

#PartDescription ReqNotesAvailability
1 199-0746 Lid assembly (OBSOLETE) 1
2 199-0431 Paper vacuum bag (pkg of 10) 1
3 199-0651 Micro cloth filter 1
4 199-0318 HEPA dome filter 1
5 199-0747 Motor fan with crimps 1
6a 199-0307 Carbon brush (pkg of 2) 1 (Domel)
6b 199-0022 Carbon brush (pkg of 2) 1 (Ametek)
7 199-0262 Motor gasket 1
8 199-0710 Draw latch assembly 1
9 199-0004 Carrying handle with rivet and washer set 1
10 199-0077 Shoulder strap assembly 1
11a 199-0006 Top shoulder strap plastic adjustment buckle 1
11b 199-0007 Bottom shoulder strap plastic adjustment buckle 1
11c 199-0276 Sternum strap buckles (latch and keeper) (OBSOLETE) 1
12 199-0078 Backplate assembly with center pad (OBSOLETE) 1
13 199-0009 Barrel nut connection set for backplate 1
14 199-0036 Backplate hardware set (4 bolts with washers) 1
15 199-0745 Waist belt keeper and latch 1
16 199-0350 Cord holder 1
17 199-0012 Waist belt assembly 1
18 199-0714 Motor plate 1
19 199-0040 Compression ring screw set (pkg of 4) 1
20 199-0485 14/3 pigtail cord assembly with strain relief 18 inch 1
21a 199-0015 On/off switch cord assembly 1 (includes 22 and 23)
21b 199-0017 Switch cord with crimps 1
22 199-0037 Switch box with velcro and switch (new) 1
23 199-0018 On/off switch 1
24 199-0718 Exhaust louver 1
25 199-0720 Exhaust assembly 1
26 199-0719 Accoustic insulator 1
27 199-0721 Bottom cap screw kit (pkg of 4) 1
28 199-0748 Bottom cap (black) 1
29 199-0032 1 1/2 inch static-dissipating hose with cuffs 1
30 199-0256 1 1/2 inch double swivel elbow cuff 1
31a 199-0074 1 1/2 inch swivel cuff 1
32 199-0347 Thermal protector 1
N/S 199-0749 60 foot extension cord 1
KIT1 199-0079 Two-piece backplate assembly 1 (includes 10-16)
