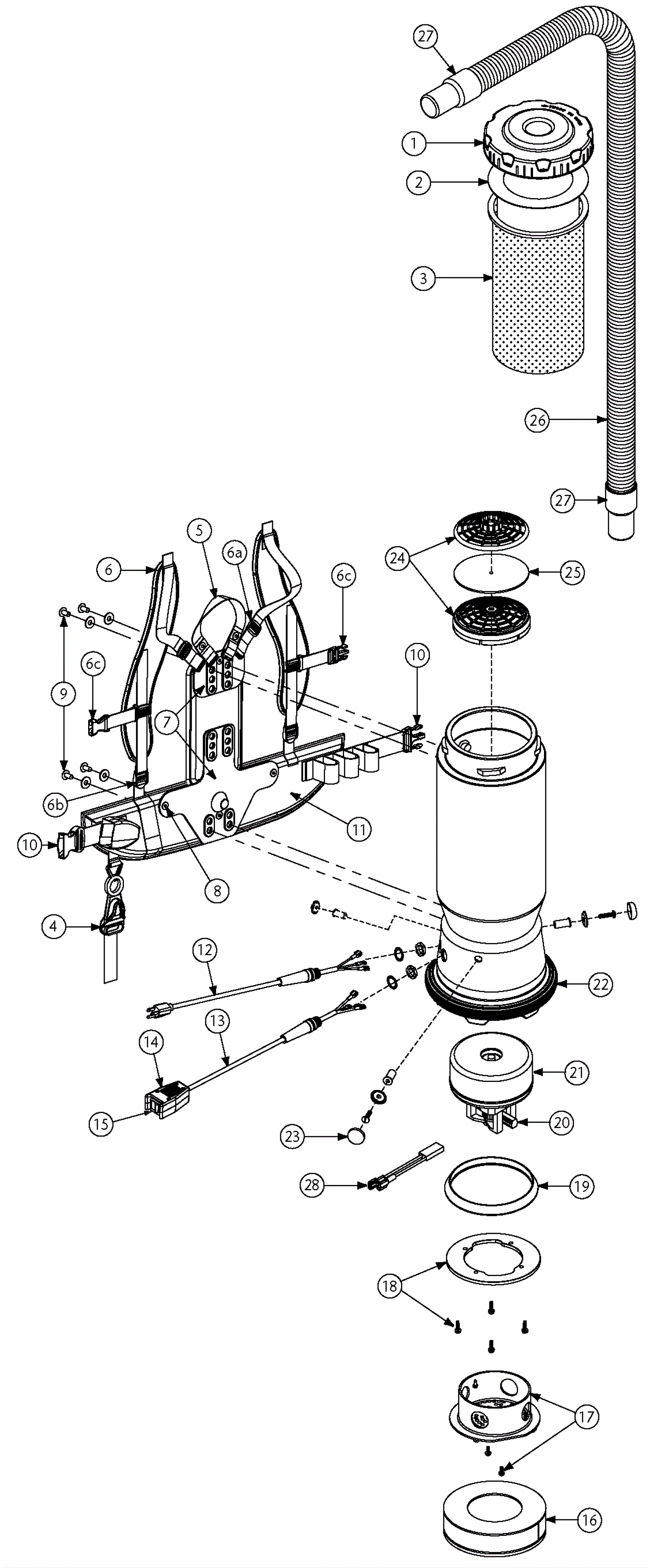

AVIATION VAC Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 199-0257 Twist cap black $45.97 1 usually ships 5-16 days
2 199-0049 Paper bag with 5 1/4 inch opening and 1/2 inch ring (pkg of $22.54 1 ships same day
3 199-0048 Micro cloth filter $30.45 1 ships same day
4 199-0350 Cord holder $3.33 1 ships same day
5 199-0004 Carrying handle with rivet and washer set $11.64 1 usually ships 1-5 days
6a 199-0006 Top shoulder strap plastic adjustment buckle $1.52 1 usually ships 5-16 days
6b 199-0007 Bottom shoulder strap plastic adjustment buckle $1.78 1 usually ships 5-16 days
6c 199-0276 Sternum strap buckles (latch and keeper) (OBSOLETE) $4.91 1 usually ships 5-16 days
7 199-0275 Backplate assembly $41.78 1 (includes 8) usually ships 5-16 days
8 199-0009 Barrel nut connection set for backplate $9.43 1 usually ships 5-16 days
9 199-0036 Backplate hardware set (4 bolts with washers) $20.89 1 usually ships 5-16 days
10 199-0745 Waist belt keeper and latch $14.84 1 usually ships 5-16 days
11a 199-0012 Waist belt assembly $25.63 1 (includes 10) ships same day
11b 199-0013 Strap assembly $83.56 1 (includes 6) ships same day
11c 199-0079 Two-piece backplate assembly $104.43 1 (includes 4-7, 9) ships same day
12 199-0016 14/3 18 inch pigtail cord $23.71 1 ships same day
13a 199-0015 On/off switch cord assembly $45.76 1 (includes 14 and 15) ships same day
13b 199-0017 Switch cord with crimps $20.30 1 usually ships 5-16 days
13c 199-0424 Switch cord with crimps $22.19 1 usually ships 5-16 days
13d 199-0425 Switch cord assembly $50.06 1 ships same day
14a 199-0037 Switch box with velcro and switch (new) $37.59 1 ships same day
14b 199-0352 Switch box with velcro $28.06 1 usually ships 5-16 days
15 199-0018 On/off switch $11.39 1 usually ships 5-16 days
16 199-0284 Sound muffler (exhaust filter) $36.08 1 usually ships 5-16 days
17 199-0354 Motor shroud cover with screws $28.02 1 usually ships 5-16 days
18a 199-0039 Motor compression ring with screws $20.09 1 ships same day
18b 199-0040 Compression ring screw set (pkg of 4) $5.19 1 usually ships 5-16 days
19 199-0020 Tetraseal gasket $18.83 1 ships same day
20a 199-0283 Carbon brush (pkg of 2) $19.74 1 ships same day
20b 199-0021 Carbon brush (pkg of 2) $33.41 1 usually ships 1-5 days
20c 199-0426 Carbon brush set $33.41 1 usually ships 5-16 days
20d 199-0427 Carbon brush set $178.24 1 usually ships 1-5 days
21a 199-0023 120V vacuum motor assembly with crimps $144.79 1 usually ships 5-16 days
21b 199-0081 Motor/Fan w/Rectifier and crimps 400Hz $317.55 1 usually ships 1-5 days
21c 199-0061 Motor recifier $45.97 1 usually ships 1-5 days
21d 199-0041 Motor ground connection and wire clamp set $9.43 1 usually ships 5-16 days
21e 199-0027 Motor crimp set (4 female, 4 male, ground crimp connector) $16.73 1 usually ships 5-16 days
22 199-0028 Bottom bumper $7.33 1 ships same day
23 199-0042 Motor mounting set (3 nuts, 3 bolts, 3 washers, 3 covers) $16.34 1 usually ships 5-16 days
24 199-0029 Dome filter with foam media $12.57 1 ships same day
25a 199-0030 Intake dome filter $3.19 1 usually ships 5-16 days
25b 199-0031 High filtration disc (pkg of 2) $16.86 1 (optional) usually ships 5-16 days
26a 199-0082 Static dissipating hose w/cuffs 1 1/2 inch $41.71 1 usually ships 5-16 days
26b 199-0304 1 1/4 inch static-dissipating hose with cuffs $32.68 1 usually ships 5-16 days
26c 199-0032 1 1/2 inch static-dissipating hose with cuffs $37.35 1 usually ships 3-4 days
27a 199-0074 1 1/2 inch swivel cuff $8.61 1 ships same day
27b 199-0344 1 1/4 inch double swivel elbow cuff $19.12 1 usually ships 5-16 days
27c 199-0428 1 1/4 inch swivel cuff $10.68 1 usually ships 5-16 days
28 199-0347 Thermal protector $22.94 1 usually ships 5-16 days
N/S 199-0077 Shoulder strap assembly $27.16 1 (includes 6a-6c) usually ships 5-16 days
N/S 199-0281 16/3 extension cord 50 foot (yellow) $53.53 1 ships same day
