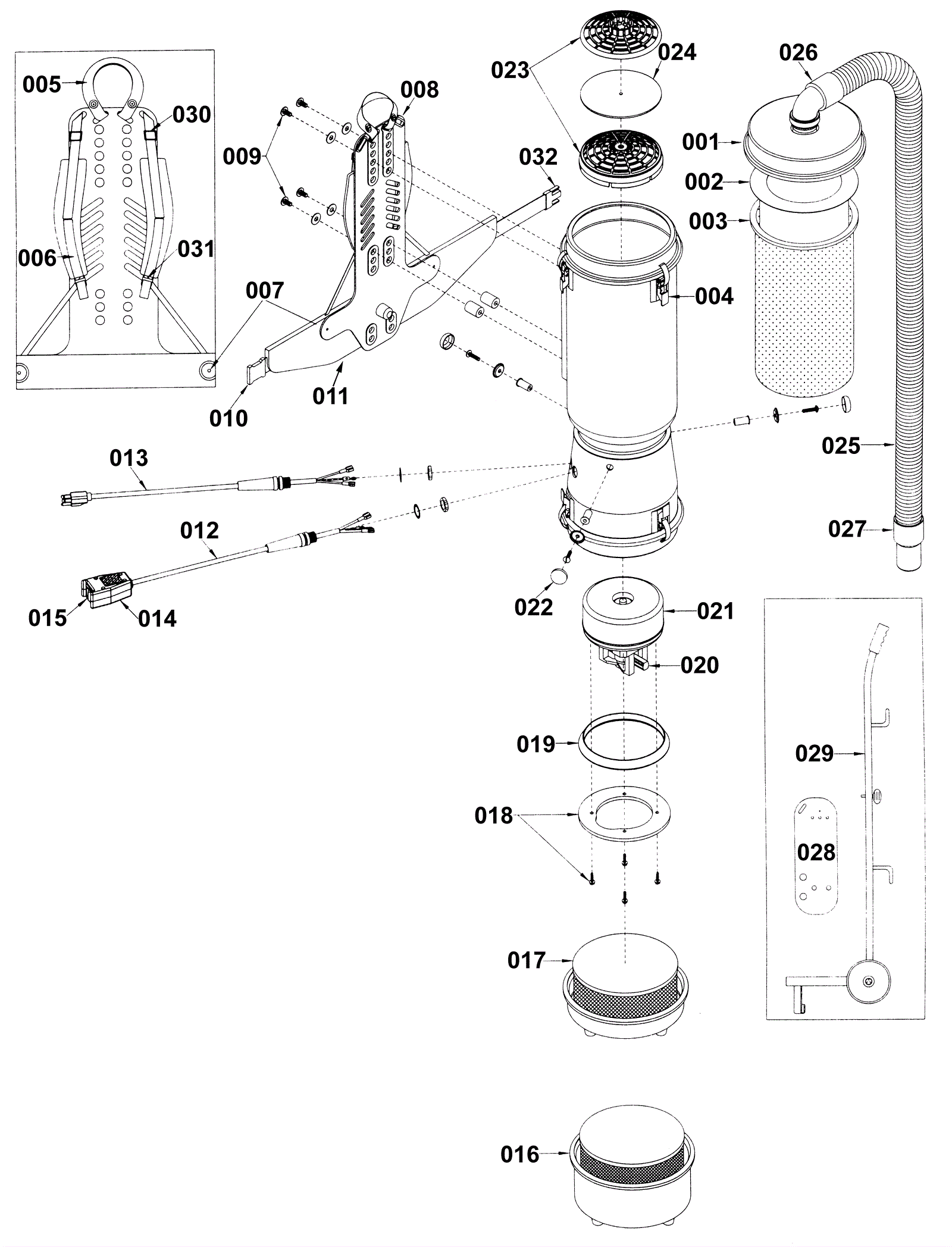

LINEVACER Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 199-0085 Latch cap with cuff $80.94 1 (magenta) usually ships 11-17 days
002a 199-0086 Paper vacuum bag (pkg of 10) $50.30 1 usually ships 11-17 days
002b 991-2131 6 Quart HEPA paper bags (pkg of 10) $20.84 1 ships same day
003 199-0003 Cloth bag $88.53 1 usually ships 11-17 days
004 199-0087 Top or bottom cap latch set $72.41 1 (includes 3 latches, 3 locks with 6 fastening rivets and 6 washers) usually ships 11-17 days
005 199-0004 Carrying handle with rivet and washer set $11.64 1 usually ships 1-5 days
006 199-0077 Shoulder strap assembly $31.89 1 usually ships 11-17 days
007 199-0009 Barrel nut connection set for backplate $9.89 1 usually ships 11-17 days
008 199-0008 Black backplate with hardware set $44.62 1 usually ships 11-17 days
009 199-0088 Backplate connection set (4 screws with washers, standoffs) $24.52 1 (Includes 2 upper and lower bolts with 2 lower stand-offs and 4 lock washers) usually ships 11-17 days
010 199-0745 Waist belt keeper and latch $22.24 1 usually ships 11-17 days
011 199-0012 Waist belt assembly $25.63 1 ships same day
012a 199-0015 On/off switch cord assembly $68.66 1 ships same day
012b 199-0017 Switch cord with crimps $30.45 1 usually ships 11-17 days
012c 199-0089 26 inch switch cord assembly complete w/ switch and box $53.63 1 usually ships 1-5 days
013a 199-0016 14/3 18 inch pigtail cord $35.56 1 ships same day
013b 991-5002 16/3 extension cord 50 foot (yellow) $54.17 1 usually ships 8-9 days
014a 199-0037 Switch box with velcro and switch (new) $44.12 1 ships same day
014b 199-0091 Switch box w/belt clip $32.99 1 usually ships 1-5 days
015 199-0018 On/off switch $13.37 1 usually ships 11-17 days
016 199-0092 ULPA filter assembly complete w/bottom cap $558.66 1 usually ships 1-5 days
017 199-0093 HEPA filter assembly complete w/bottom cap $245.15 1 usually ships 11-17 days
018a 199-0039 Motor compression ring with screws $23.58 1 usually ships 11-17 days
018b 199-0040 Compression ring screw set (pkg of 4) $4.95 1 usually ships 11-17 days
019 199-0020 Tetraseal gasket $22.11 1 usually ships 11-17 days
020 199-0021 Carbon brush (pkg of 2) $35.00 1 usually ships 1-5 days
021a 199-0023 120V vacuum motor assembly with crimps $151.69 1 usually ships 11-17 days
021b 199-0024 220 V Motor/fan with crimps $177.41 1 usually ships 1-5 days
022 199-0042 Motor mounting set (3 nuts, 3 bolts, 3 washers, 3 covers) $24.52 1 (includes 3 well nuts, 3 bolts, 3 washers, and 3 covers) usually ships 11-17 days
023 199-0029 Dome filter with foam media $14.76 1 usually ships 11-17 days
024 199-0030 Intake dome filter $3.05 1 usually ships 11-17 days
025 199-0032 1 1/2 inch static-dissipating hose with cuffs $37.35 1 ships same day
026 199-0256 1 1/2 inch double swivel elbow cuff $27.13 1 usually ships 18-30 days
027 199-0074 1 1/2 inch swivel cuff $8.61 1 usually ships 18-30 days
028 199-0094 Cart plate for cart assembly $27.20 1 usually ships 1-5 days
029 199-0095 Linevacer cart assembly complete $298.32 1 usually ships 1-5 days
030 199-0006 Top shoulder strap plastic adjustment buckle $1.69 1 usually ships 11-17 days
031 199-0007 Bottom shoulder strap plastic adjustment buckle $1.89 1 usually ships 11-17 days
032 199-0745 Waist belt keeper and latch $22.24 1 usually ships 11-17 days
N/S 199-0013 Strap assembly $98.04 1 (includes items 6, 10, 11, 30, 31, and 32) usually ships 11-17 days
N/S 199-0027 Motor crimp set (4 female, 4 male, ground crimp connector) $17.53 1 (includes 5 female, 3 male, and a ground crimp connector) usually ships 11-17 days
N/S 199-0041 Motor ground connection and wire clamp set $9.89 1 (includes wire clamp and ground crimp with connection screws) usually ships 11-17 days
N/S 199-0079 Two-piece backplate assembly $122.54 1 (includes items 5 - 10, 30, 31, and 32) usually ships 11-17 days
