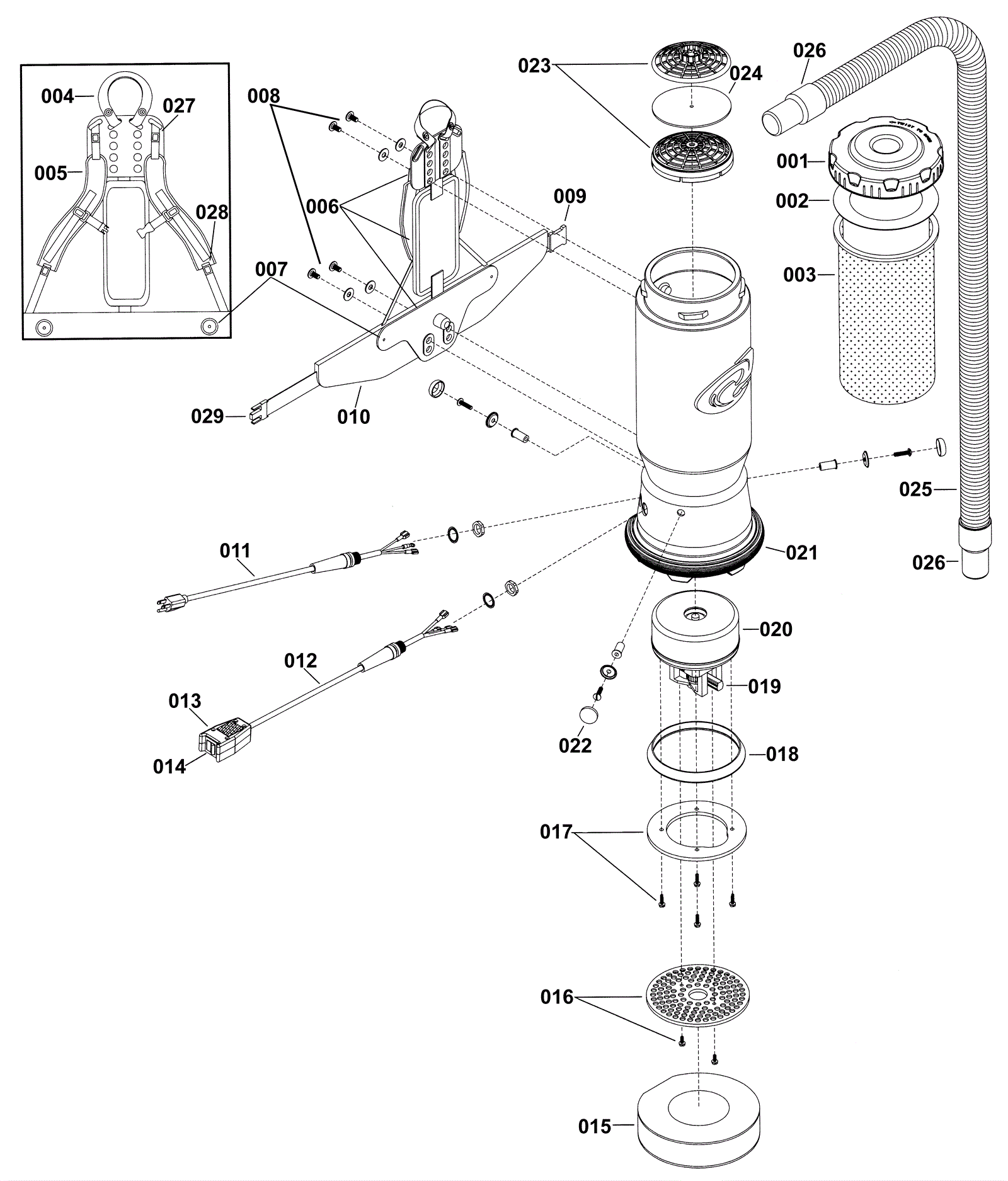

PRO VAC Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 199-0257 Twist cap black $48.17 1 usually ships 12-18 days
002 199-0049 Paper bag with 5 1/4 inch opening and 1/2 inch ring (pkg of $22.54 1 usually ships 12-18 days
003 199-0048 Micro cloth filter $45.69 1 ships same day
004 199-0004 Carrying handle with rivet and washer set $11.64 1 usually ships 1-5 days
005 199-0077 Shoulder strap assembly $31.89 1 (with 2 S-shaped shoulder straps with sternum strap and 2 buckles) usually ships 12-18 days
006 199-0078 Backplate assembly with center pad $38.38 1 usually ships 12-18 days
007 199-0009 Barrel nut connection set for backplate $9.89 1 usually ships 12-18 days
008 199-0036 Backplate hardware set (4 bolts with washers) $24.52 1 usually ships 12-18 days
009 199-0745 Waist belt keeper and latch $22.24 1 usually ships 12-18 days
010 199-0012 Waist belt assembly $25.63 1 ships same day
011 199-0016 14/3 18 inch pigtail cord $35.56 1 (with strain relief with locknut and washer) ships same day
012a 199-0015 On/off switch cord assembly $68.66 1 ships same day
012b 199-0017 Switch cord with crimps $30.45 1 usually ships 12-18 days
013 199-0037 Switch box with velcro and switch (new) $44.12 1 ships same day
014 199-0018 On/off switch $13.37 1 usually ships 12-18 days
015 199-0080 Sound Muffler $31.87 1 usually ships 12-18 days
016 199-0354 Motor shroud cover with screws $42.02 1 usually ships 12-18 days
017a 199-0039 Motor compression ring with screws $23.58 1 usually ships 12-18 days
017b 199-0040 Compression ring screw set (pkg of 4) $4.95 1 usually ships 12-18 days
018 199-0020 Tetraseal gasket $22.11 1 usually ships 12-18 days
019 199-0021 Carbon brush (pkg of 2) $35.00 1 (for 928 watt motor) usually ships 1-5 days
020a 199-0023 120V vacuum motor assembly with crimps $151.69 1 usually ships 12-18 days
020b 199-0024 220 V Motor/fan with crimps $177.41 1 usually ships 1-5 days
021 199-0028 Bottom bumper $7.33 1 ships same day
022 199-0042 Motor mounting set (3 nuts, 3 bolts, 3 washers, 3 covers) $24.52 1 (with 3 well nuts, 3 bolts, 3 washers, and 3 covers) usually ships 12-18 days
023 199-0029 Dome filter with foam media $14.76 1 usually ships 12-18 days
024a 199-0030 Intake dome filter $3.05 1 usually ships 12-18 days
024b 199-0031 High filtration disc (pkg of 2) $19.80 1 (optional) usually ships 12-18 days
025 199-0082 Static dissipating hose w/cuffs 1 1/2 inch $43.70 1 usually ships 12-18 days
026 199-0074 1 1/2 inch swivel cuff $8.61 1 usually ships 12-18 days
027 199-0006 Top shoulder strap plastic adjustment buckle $1.69 1 usually ships 12-18 days
028 199-0007 Bottom shoulder strap plastic adjustment buckle $1.89 1 usually ships 12-18 days
029 199-0745 Waist belt keeper and latch $22.24 1 usually ships 12-18 days
N/S 199-0027 Motor crimp set (4 female, 4 male, ground crimp connector) $17.53 1 usually ships 12-18 days
N/S 199-0041 Motor ground connection and wire clamp set $9.89 1 usually ships 12-18 days
N/S 199-0061 Motor recifier $48.17 1 usually ships 1-5 days
N/S 199-0079 Two-piece backplate assembly $122.54 1 (includes items 004 - 010, 027, and 028) usually ships 12-18 days
N/S 199-0081 Motor/Fan w/Rectifier and crimps 400Hz $332.66 1 usually ships 1-5 days
