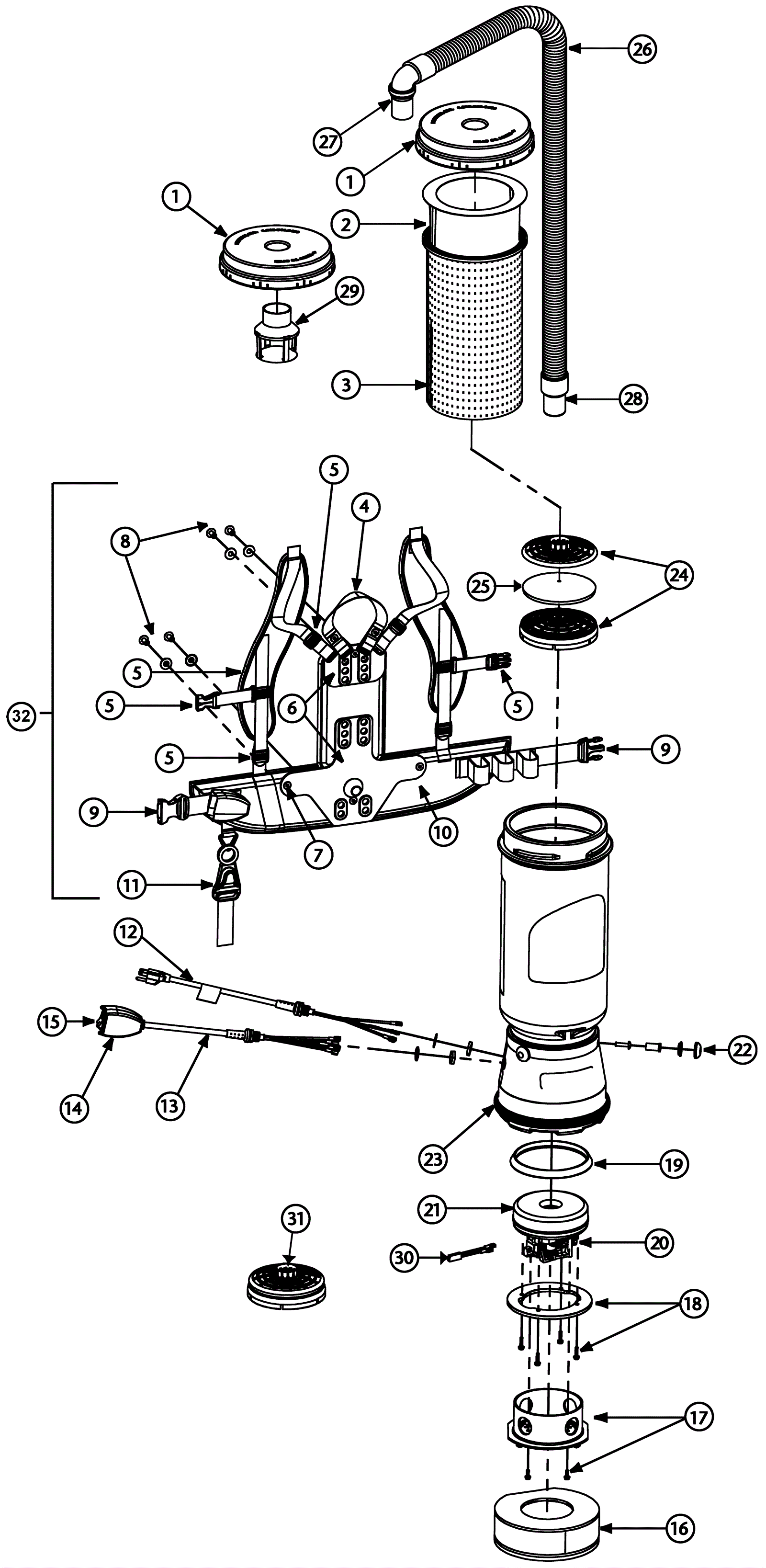

SUPERCOACHVAC Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1a 199-0001 Twist cap (purple) $56.89 1 (Super Coach and Super Coach HEPA) usually ships 11-17 days
1b 199-0349 Twist cap (black) $56.89 1 (Coach) usually ships 11-17 days
2 199-0002 Paper bag with 5 3/4 inch opening and 1 inch ring (pkg of 10 $30.05 1 ships same day
3 199-0003 Cloth bag $55.33 1 usually ships 11-17 days
4 199-0004 Carrying handle with rivet and washer set $11.64 1 usually ships 1-5 days
5a 199-0077 Shoulder strap assembly $31.89 1 (includes 5b, 5c, 5d) usually ships 11-17 days
5b 199-0006 Top shoulder strap plastic adjustment buckle $1.69 1 usually ships 11-17 days
5c 199-0007 Bottom shoulder strap plastic adjustment buckle $1.89 1 usually ships 11-17 days
5d 199-0276 Sternum strap buckles (latch and keeper) (OBSOLETE) $4.91 1 usually ships 11-17 days
6 199-0275 Backplate assembly $49.02 1 (includes 7) usually ships 11-17 days
7 199-0009 Barrel nut connection set for backplate $9.89 1 usually ships 11-17 days
8 199-0036 Backplate hardware set (4 bolts with washers) $24.52 1 usually ships 11-17 days
9 199-0745 Waist belt keeper and latch $22.24 1 usually ships 11-17 days
10a 199-0012 Waist belt assembly $25.63 1 (includes 9) ships same day
10b 199-0013 Strap assembly $98.04 1 (includes 5a and 10a) usually ships 11-17 days
11 199-0350 Cord holder $5.01 1 ships same day
12a 199-0016 14/3 18 inch pigtail cord $35.56 1 ships same day
12b 991-5002 16/3 extension cord 50 foot (yellow) $54.17 1 ships same day
13a 199-0015 On/off switch cord assembly $68.66 1 (includes 13b, 14 and 15) ships same day
13b 199-0017 Switch cord with crimps $30.45 1 usually ships 11-17 days
14 199-0037 Switch box with velcro and switch (new) $44.12 1 ships same day
15a 199-0018 On/off switch $13.37 1 (must use with 15b) usually ships 11-17 days
15b 199-0352 Switch box with velcro $32.95 1 usually ships 11-17 days
16 199-0019 Sound muffler $54.13 1 usually ships 11-17 days
17 199-0354 Motor shroud cover with screws $42.02 1 usually ships 11-17 days
18a 199-0039 Motor compression ring with screws $23.58 1 usually ships 11-17 days
18b 199-0040 Compression ring screw set (pkg of 4) $4.95 1 usually ships 11-17 days
19 199-0020 Tetraseal gasket $22.11 1 usually ships 11-17 days
20a 199-0283 Carbon brush (pkg of 2) $35.00 1 (Coach) (Domel motor) usually ships 11-17 days
20b 199-0021 Carbon brush (pkg of 2) $35.00 1 (Coach) (Ametek motor) usually ships 1-5 days
20c 199-0307 Carbon brush (pkg of 2) $35.00 1 (Super Coach) (Domel motor) ships same day
20d 199-0022 Carbon brush (pkg of 2) $35.00 1 (Super Coach) (Ametek motor) ships same day
21a 199-0023 120V vacuum motor assembly with crimps $151.69 1 (Coach) usually ships 11-17 days
21b 199-0026 120V vacuum motor assembly with crimps $196.88 1 (Super Coach) ships same day
21c 199-0041 Motor ground connection and wire clamp set $9.89 1 usually ships 11-17 days
21d 199-0027 Motor crimp set (4 female, 4 male, ground crimp connector) $17.53 1 usually ships 11-17 days
22 199-0042 Motor mounting set (3 nuts, 3 bolts, 3 washers, 3 covers) $24.52 1 usually ships 11-17 days
23 199-0028 Bottom bumper $7.33 1 ships same day
24 199-0029 Dome filter with foam media $14.76 1 usually ships 11-17 days
25a 199-0030 Intake dome filter $3.05 1 usually ships 11-17 days
25b 199-0031 High filtration disc (pkg of 2) $19.80 1 usually ships 11-17 days
26 199-0032 1 1/2 inch static-dissipating hose with cuffs $37.35 1 ships same day
27 199-0256 1 1/2 inch double swivel elbow cuff $27.13 1 usually ships 18-30 days
28 199-0074 1 1/2 inch swivel cuff $8.61 1 usually ships 18-30 days
29 199-0035 Filter guard $15.83 1 usually ships 11-17 days
30 199-0347 Thermal protector $24.04 1 usually ships 11-17 days
31 199-0318 HEPA dome filter $25.06 1 ships same day
32 199-0079 Two-piece backplate assembly $122.54 1 (includes 4-6, 8, 10a and 10b) usually ships 11-17 days
