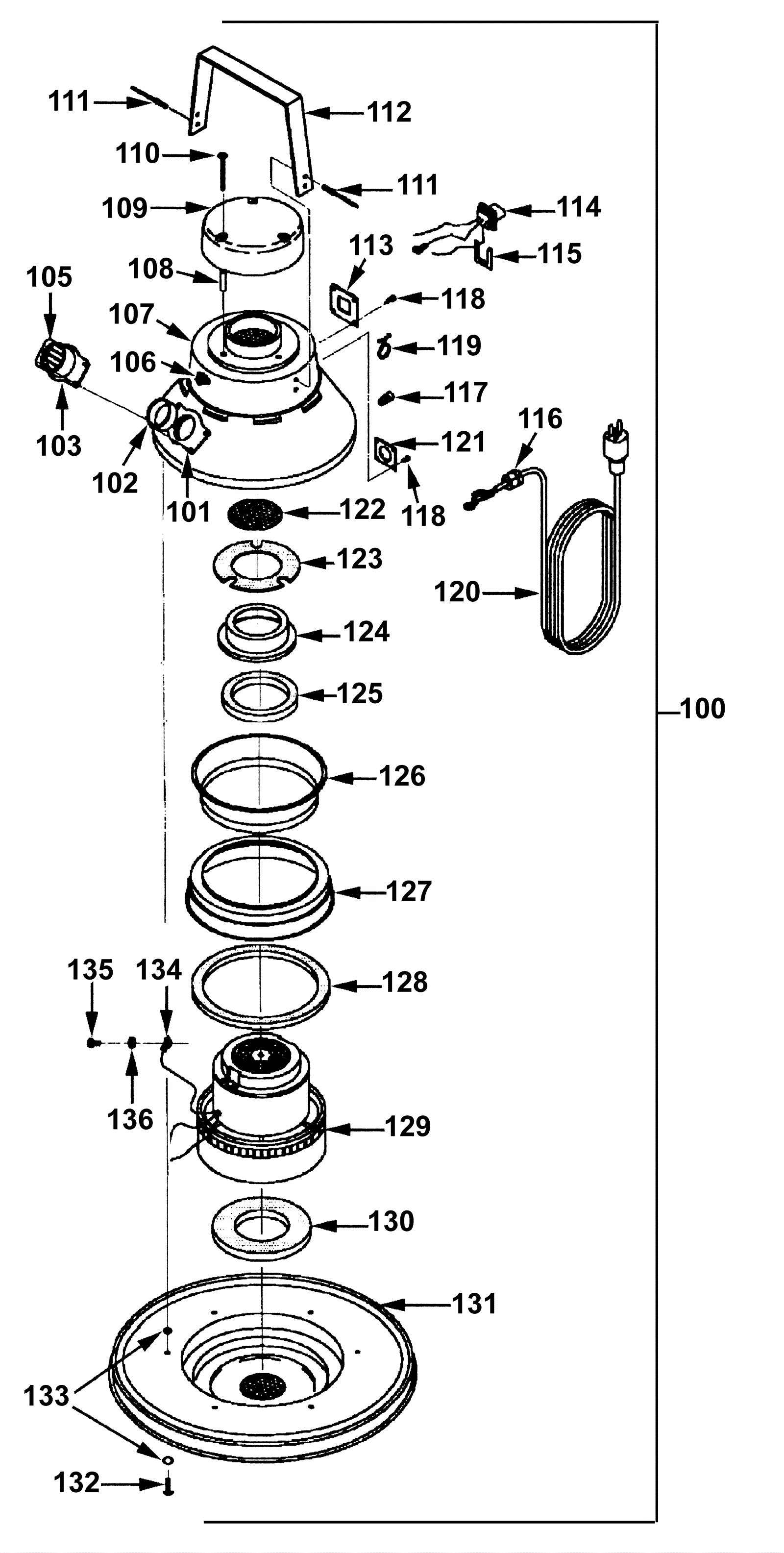

SOOTMASTER 16 Inch - 2 1/4 HP Motor Head Assembly

#PartDescriptionPriceReqNotesAvailability
100 195-9690 16 inch cover assembly Call for price 1 (includes 101-136) usually ships 1-5 days
101 195-9663 Exhaust connector gasket Call for price 1 usually ships 1-5 days
102 195-9664 Flat gasket Call for price 1 usually ships 1-5 days
103 195-9229 Deflector $8.32 1 usually ships 1-5 days
105a 195-9691 Exhaust assembly Call for price 1 usually ships 1-5 days
105b 195-9184 Exhaust connector with pins $15.60 1 usually ships 1-5 days
106 295-1251 Switch $42.91 1 usually ships 9-26 days
107a 195-9692 Dome assembly Call for price 1 usually ships 1-5 days
107b 195-9665 Dome Call for price 1 usually ships 1-5 days
108 195-9225 Spacer $1.78 3 usually ships 1-5 days
109 195-9666 Dome cover $35.64 1 usually ships 1-5 days
110 195-9656 Screw #10-24 x 1 3/4 Call for price 3 usually ships 1-5 days
111 295-1203 Pop rivet $1.78 4 usually ships 1-5 days
112 195-9224 Handle $27.04 1 usually ships 1-5 days
113 195-9667 Receptacle mounting plate Call for price 1 usually ships 1-5 days
114 295-1487 Electrical convenience outlet $7.48 1 usually ships 1-5 days
115 295-1490 Clip retainer $4.68 1 usually ships 9-26 days
116 195-9685 Strain relief Call for price 1 usually ships 1-5 days
117 195-6150 Wire connector $1.78 4 usually ships 9-26 days
118 195-6092 Screw 6-32 x 1/4 $0.99 8 usually ships 1-5 days
119 195-9204 Large purse lock $1.78 2 usually ships 1-5 days
120a 295-1127 14/3 power cord 30 ft. $85.98 1 (OEM) usually ships 9-26 days
120b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) (does not include strain relief) ships same day
121 195-9232 Strain relief plate $3.12 1 usually ships 1-5 days
122 195-9672 Disc screen Call for price 1 usually ships 1-5 days
123 195-9226 Gasket $4.16 1 usually ships 9-26 days
124 195-9231 Air conductor $20.79 1 usually ships 1-5 days
125 295-1189 Motor gasket $15.84 1 usually ships 9-26 days
126 195-9227 Motor hold down $29.11 1 usually ships 9-26 days
127 195-9228 Air collector assembly $45.74 1 usually ships 1-5 days
128 195-9351 Gasket $9.24 1 usually ships 9-26 days
129 195-9668 115V vacuum motor 2.25HP $456.72 1 usually ships 1-5 days
130 195-9348 Gasket $13.13 1 usually ships 9-26 days
131 195-9693 16 inch cover Call for price 1 usually ships 1-5 days
132 195-9670 Screw 10-24 x 1/2 Call for price 6 usually ships 1-5 days
133 195-9172 Washer $1.78 2 usually ships 9-26 days
134 195-9671 Electrical terminal Call for price 1 usually ships 1-5 days
135 295-1411 Screw $1.78 1 usually ships 1-5 days
136 295-1352 Nut #10 hex with extended lockwasher $1.78 3 usually ships 1-5 days
