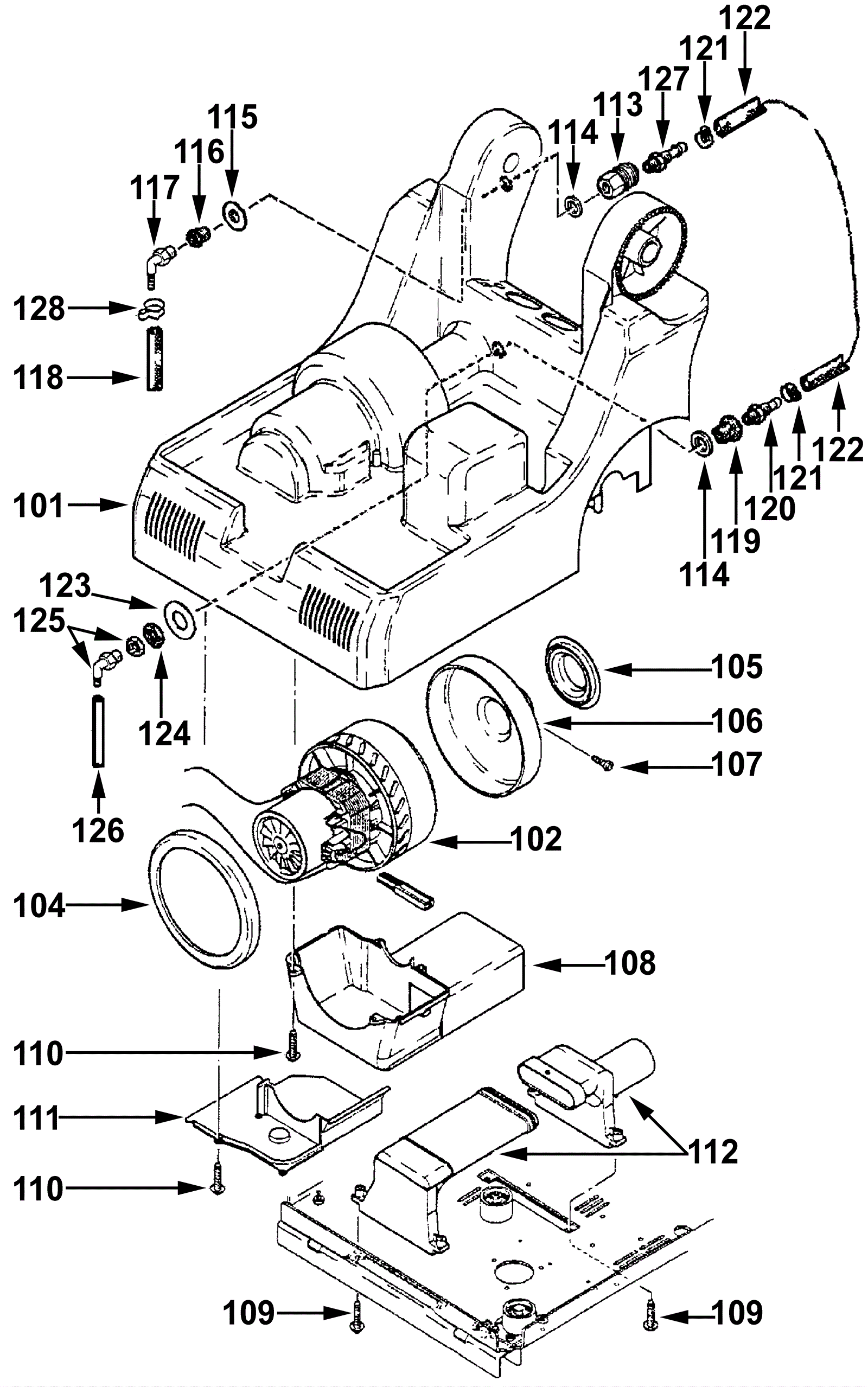

SURFER MSR-15E Motor and Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
101 195-7766 Chassis cover housing $425.26 usually ships 1-5 days
102a 295-4034 Vacuum motor $337.20 usually ships 1-5 days
102b 295-4035 Carbon brushes (set of 2) $6.60 usually ships 9-26 days
104 195-7777 Motor seal gasket $37.80 usually ships 1-5 days
105 195-7778 Sealing gasket $15.12 usually ships 1-5 days
106 261-0018 Hose connector $18.00 usually ships 1-5 days
107 295-4036 Screw 2.9 x 9.5 Call for price usually ships 1-5 days
108 195-7779 Motor cover $61.20 usually ships 1-5 days
109 295-4037 Screw KA50 x 16 PT Call for price usually ships 1-5 days
110 295-0641 Screw M12 x 16mm phillips head $8.50 usually ships 1-5 days
111 295-4038 Air canal cover Call for price usually ships 1-5 days
112 195-7768 Air compressor canal $136.08 usually ships 1-5 days
113 295-4039 Coupling Call for price usually ships 1-5 days
114 295-0258 Washer $9.46 usually ships 1-5 days
115 195-7769 Washer M12 $7.09 usually ships 1-5 days
116 195-7770 Brass reducer fitting $18.90 usually ships 1-5 days
117 195-7773 Angeled connector fitting $81.28 usually ships 1-5 days
118 295-4040 Pressure hose Call for price usually ships 1-5 days
119 295-4041 Straight nipple Call for price usually ships 1-5 days
120 195-7772 Brass barb fitting $23.62 usually ships 1-5 days
121 295-0596 90 degree fitting $17.00 usually ships 9-26 days
122 195-7774 Solution hose connection $11.34 usually ships 1-5 days
123 295-0258 Washer $9.46 usually ships 1-5 days
124 295-8411 Nut G3/8 inch hex head Call for price usually ships 1-5 days
125 195-7775 Angled nipple fitting stainless steel $26.46 usually ships 1-5 days
126 195-7776 Solution hose connector $11.34 usually ships 1-5 days
127 195-7771 Male quick disconnect fitting $160.66 usually ships 1-5 days
128 173-8894 Hose clip d=50 $62.50 usually ships 1-5 days
