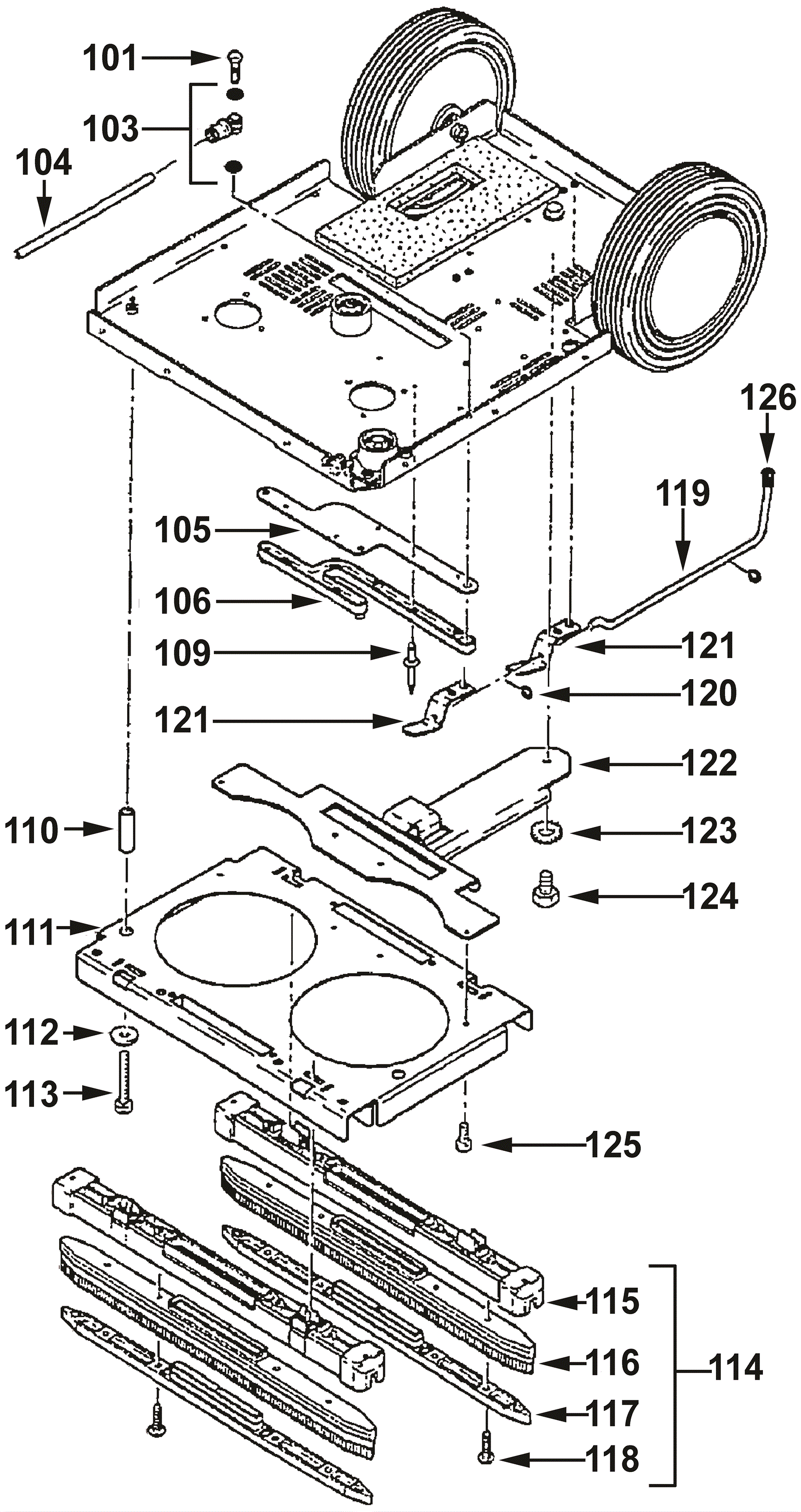

SURFER MSR-15E Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
101 295-0459 Screw $10.41 usually ships 1-5 days
103 295-4031 Angled fitting $60.72 usually ships 1-5 days
104 195-7776 Solution hose connector $12.47 usually ships 1-5 days
105 295-0699 Isolated water canal $10.41 usually ships 1-5 days
106 295-0700 Water canal $62.37 usually ships 1-5 days
109 N/A Not available Call for price Rivet 3 x 10mm usually ships 3-26 days
110 295-0458 Guide sleeve $20.79 usually ships 1-5 days
111 195-7764 Vac bracket $665.28 usually ships 1-5 days
112 195-6211 Washer M6 Call for price usually ships 1-5 days
113 295-0457 Screw $6.25 usually ships 1-5 days
114 195-6108 Squeegee assembly complete (OBSOLETE) $206.57 usually ships 10-11 days
115 195-6098 Vac nozzle $59.40 usually ships 10-11 days
116 295-0190 Squeegee blade $87.12 usually ships 1-5 days
117 195-7765 Squeegee blade bracket $93.57 usually ships 1-5 days
118 295-4032 Screw KA50 x 16 PT Call for price usually ships 1-5 days
119 295-0186 Squeegee lever $103.95 usually ships 1-5 days
120 295-0456 Safety ring $6.25 usually ships 1-5 days
121 295-0685 Lever guide $29.11 usually ships 1-5 days
122 295-0726 Canal support $135.15 usually ships 1-5 days
123 295-4033 Lockwasher M8 serrated Call for price usually ships 1-5 days
124 295-4010 Screw M8 x 10 hex head Call for price usually ships 1-5 days
125 295-0727 Screw M8 x 10mm hex head $3.52 usually ships 1-5 days
126 295-0455 Cover $6.25 usually ships 1-5 days
