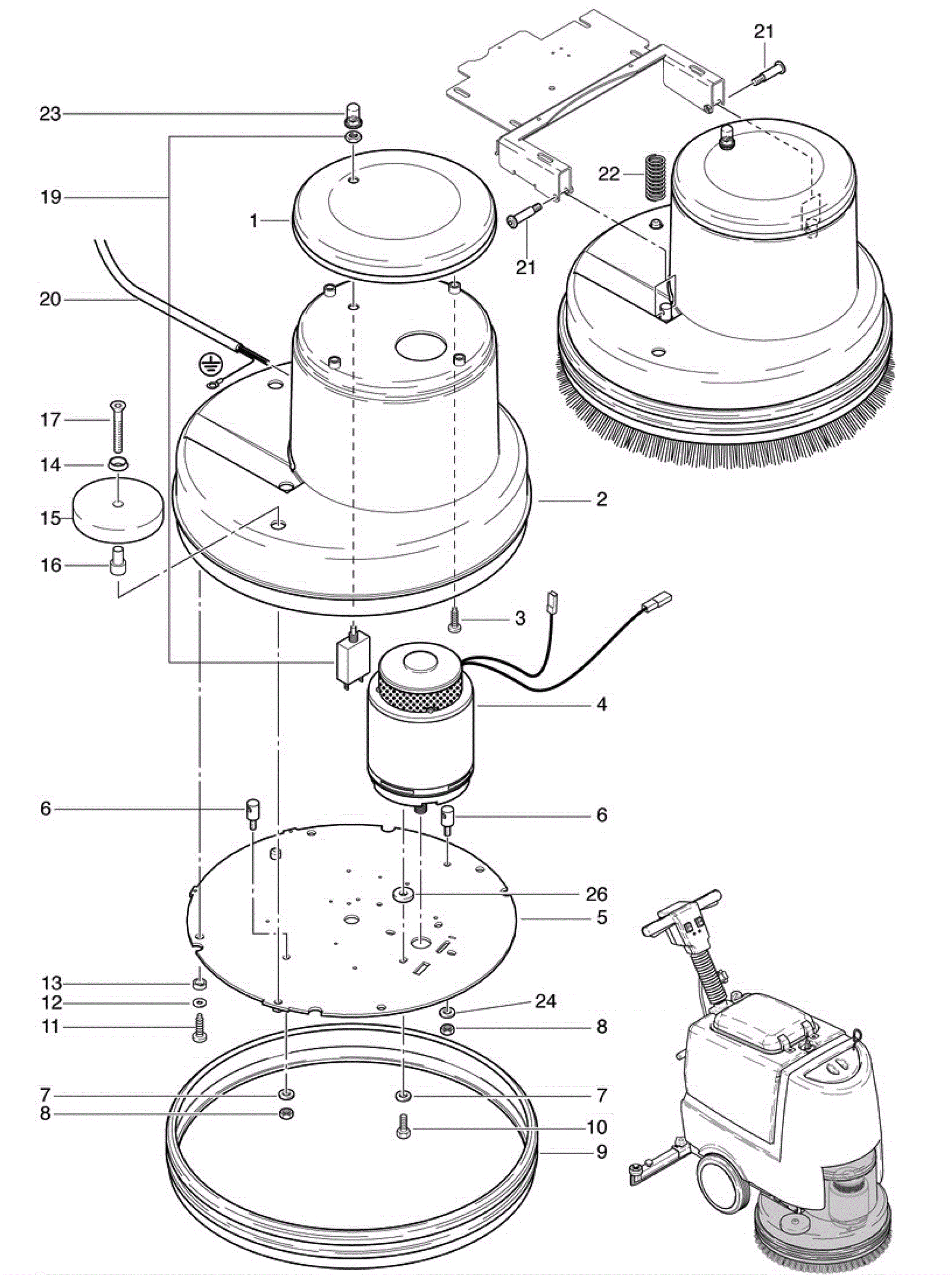

RA 501B Motor Assemby

#PartDescriptionPriceReqNotesAvailability
1 195-3708 Cover Call for price 1 usually ships 15-20 days
2 195-3709 Drive disk cover Call for price 1 usually ships 15-20 days
3 195-3673 Screw Call for price 4 usually ships 15-20 days
4 195-3710 24V motor Call for price 1 usually ships 15-20 days
5 195-3711 Drive disk Call for price 1 usually ships 15-20 days
6 195-3712 Bolt Call for price 2 usually ships 15-20 days
7 195-3623 Washer M5 x 15mm Call for price 2 usually ships 15-20 days
8 195-3713 Nut M8 Call for price 2 usually ships 15-20 days
9 195-3714 Shock protection Call for price 1 usually ships 15-20 days
10 195-3715 Screw M8 x 16 Call for price 2 usually ships 15-20 days
11 195-3670 Tapping screw Call for price 4 usually ships 15-20 days
12 195-3627 Washer M5 x 14MM Call for price 4 usually ships 15-20 days
13 195-3716 Ring Call for price 4 usually ships 15-20 days
14 195-3717 Washer Call for price 1 usually ships 15-20 days
15 195-3718 Fender wheel Call for price 1 usually ships 15-20 days
16 195-3719 Ring Call for price 1 usually ships 15-20 days
17 195-3720 Screw Call for price 1 usually ships 15-20 days
19 195-3721 Protective switch gear Call for price 1 usually ships 15-20 days
20 195-3722 Motor cable Call for price 1 usually ships 15-20 days
21 195-3723 Shoulder screw Call for price 2 usually ships 15-20 days
22 195-3724 Compression spring Call for price 1 usually ships 15-20 days
23 195-3725 Protective cap Call for price 1 usually ships 15-20 days
