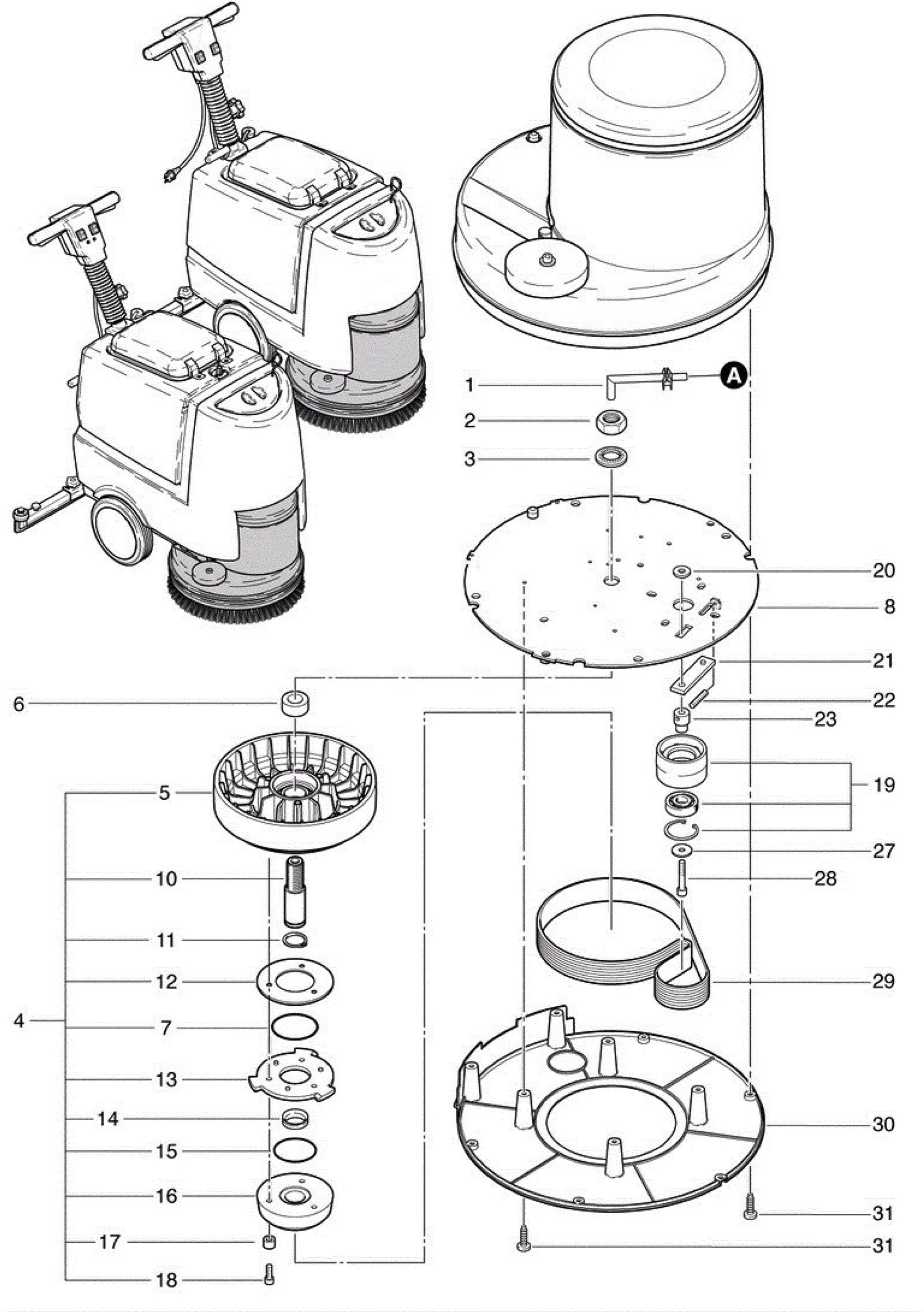

RA 501B Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 195-3640 Distribution tube Call for price 1 usually ships 15-20 days
2 195-3641 Nut M20 Call for price 1 usually ships 15-20 days
3 195-3642 Washer M20 Call for price 1 usually ships 15-20 days
4 195-3643 Belt mount assembly Call for price 1 (includes 5-18) usually ships 15-20 days
5 195-3644 Drive pulley Call for price 1 (includes 6-9) usually ships 15-20 days
6 195-3645 Can Call for price 1 usually ships 15-20 days
7 195-3646 O-ring Call for price 1 usually ships 15-20 days
8a 195-3647 Ball bearing Call for price 1 usually ships 15-20 days
8b 195-3648 Ball bearing Call for price 1 usually ships 15-20 days
9 195-3649 Intermediate ring Call for price 1 usually ships 15-20 days
10 195-3650 Axle Call for price 1 usually ships 15-20 days
11 195-3651 Security ring Call for price 1 usually ships 15-20 days
12 195-3652 Distance ring Call for price 1 usually ships 15-20 days
13 195-3653 Star wheel $58.30 1 usually ships 15-20 days
14 195-3654 V-profile ring Call for price 1 usually ships 15-20 days
15 195-3656 O-ring Call for price 1 usually ships 15-20 days
16 195-3655 Brush support Call for price 1 usually ships 15-20 days
17 195-3562 Washer Call for price 1 usually ships 15-20 days
18 195-3657 Screw M6 x 20 Call for price 1 usually ships 15-20 days
19 195-3658 Idler Call for price 1 usually ships 15-20 days
20 195-3659 Groove nut Call for price 1 usually ships 15-20 days
21 195-3660 Support Call for price 1 usually ships 15-20 days
22 195-3661 Threaded pin Call for price 1 usually ships 15-20 days
23 195-3662 Federation tap Call for price 1 usually ships 15-20 days
24 195-3663 Idler Call for price 1 usually ships 15-20 days
25 195-3664 Ball bearing Call for price 1 usually ships 15-20 days
26 195-3665 Security ring Call for price 1 usually ships 15-20 days
27 195-3666 Washer M8 Call for price 1 usually ships 15-20 days
28 195-3668 Screw M8 x 25 Call for price 1 usually ships 15-20 days
29 195-3667 Rib tape Call for price 1 usually ships 15-20 days
30 195-3669 Cover plate Call for price 1 usually ships 15-20 days
31 195-3670 Tapping screw Call for price 1 usually ships 15-20 days
32 195-3671 Screw M5 x 16 Call for price 3 usually ships 15-20 days
33 195-3672 Stoppers Call for price 1 usually ships 15-20 days
N/S 295-4078 20 inch standard brush $473.19 1 usually ships 15-20 days
