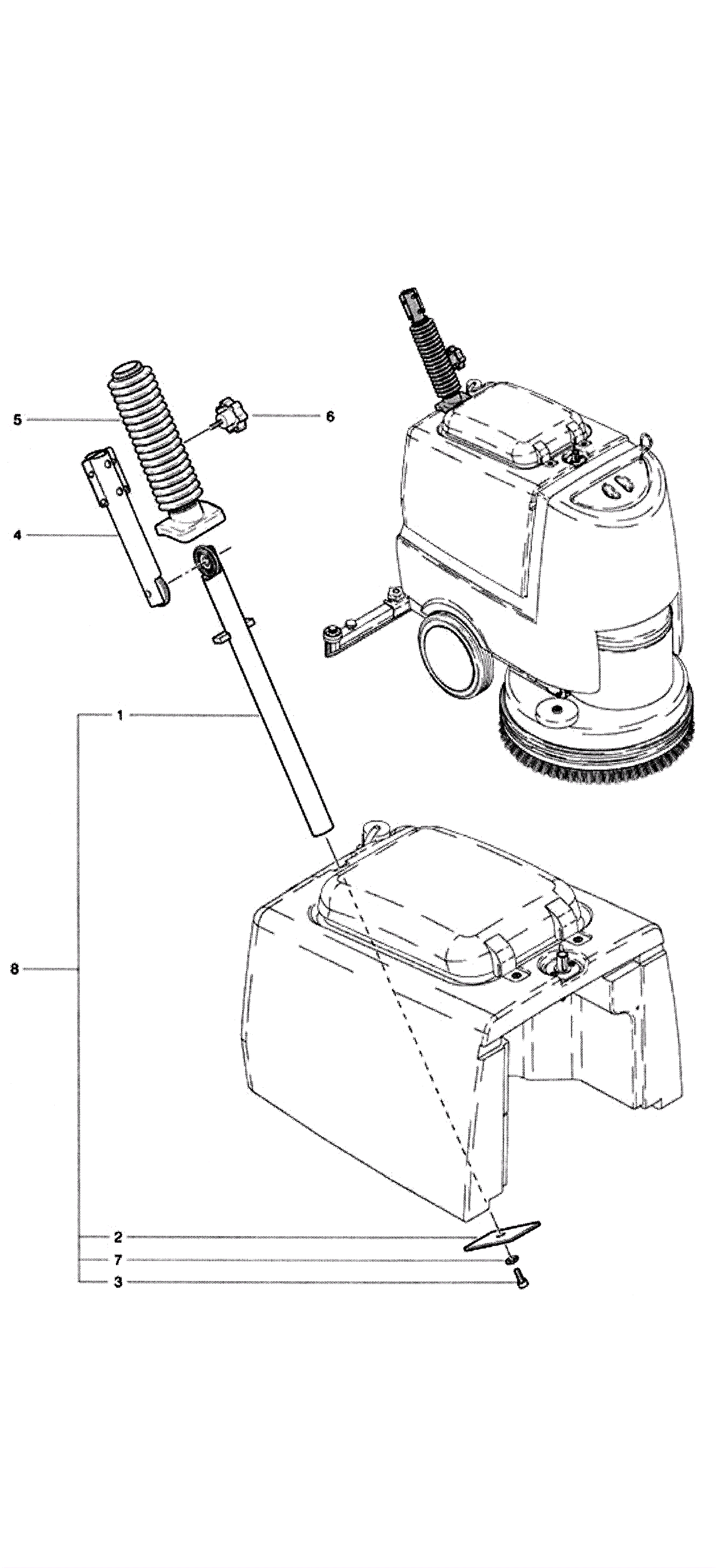

RA 501B Tube Assembly

#PartDescriptionPriceReqNotesAvailability
1 195-3540 Lower angled tube $167.48 1 usually ships 15-20 days
2 195-3541 Disk $12.38 1 usually ships 15-20 days
3 195-3542 Cylindrical screw $5.78 1 usually ships 15-20 days
4 295-8511 Upper handle tube $311.52 1 usually ships 1-5 days
5 195-3544 Protection $47.85 1 usually ships 15-20 days
6 195-3545 Star handle $37.13 1 usually ships 15-20 days
7 195-3546 Lock washer $5.50 1 usually ships 15-20 days
8 N/A Not available Call for price 1 (Tube kit) (Includes 1-3 and 7) usually ships 3-26 days
