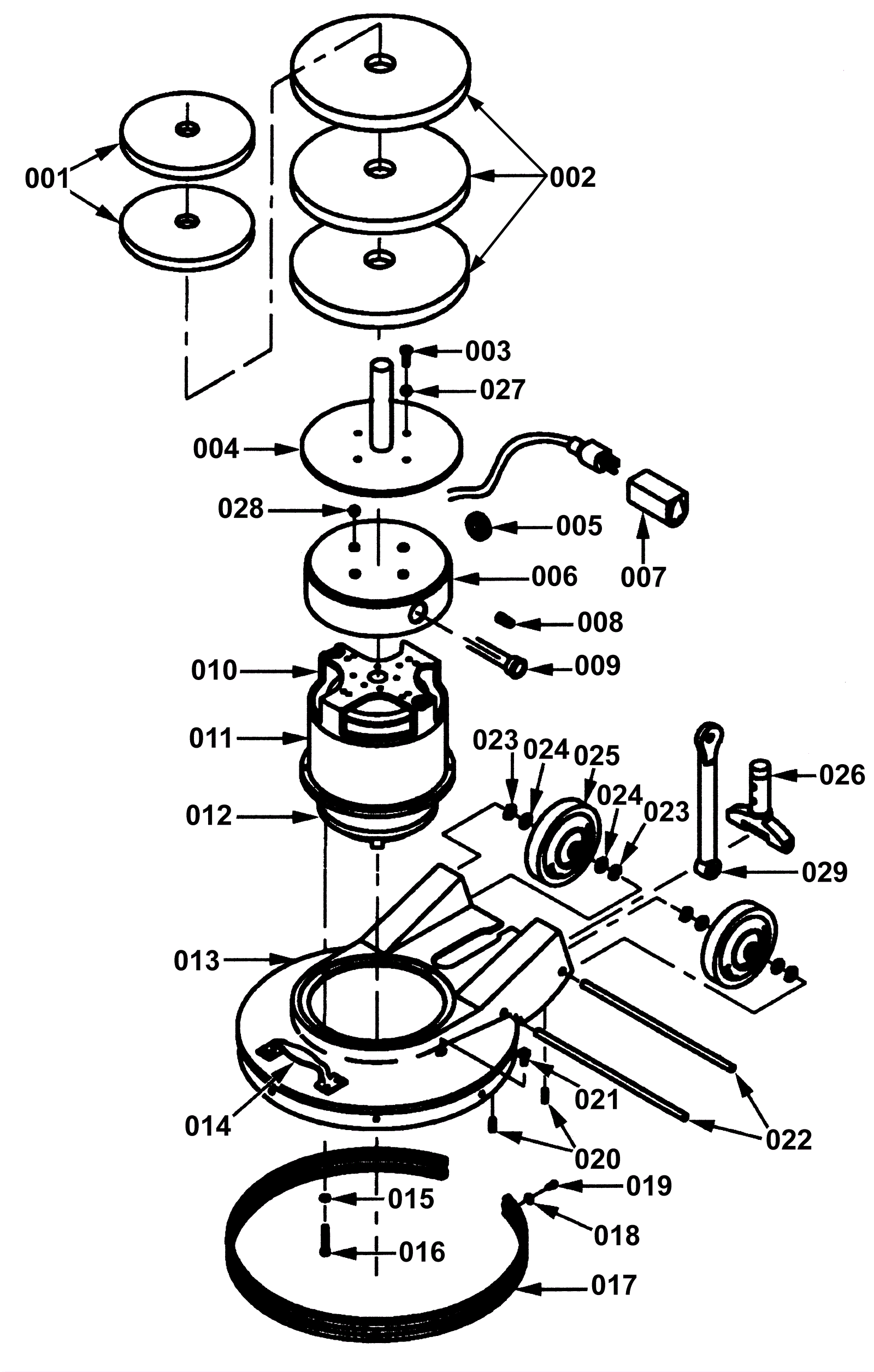

Motor and Chassis Assembly

#PartDescription ReqNotesAvailability
001 295-1279 Weight vinyl coated #10 yellow 2
002 295-1280 Weight vinyl coated #25 yellow 3
003 295-1879 Screw #10-24 x 3/4 inch 4
004 295-1275 Weight holder stainless steel 1
005 195-6002 Grommet 1
006 295-1178 Motor canopy 1
007 195-6155 Sleeve connector grey 1
008 195-6003 Electrical wire connector 2
010a 195-6123 Motor with gearbox 1
010b 195-6067 Carbon brush set Imperial motor (pkg of 4) 1
012 295-1397 Gear box 1
013a 195-6133 Apron 17 inch 1
013b 195-9074 Apron 20 inch 1
013c 295-1408 Apron 24 in aluminum with handle hole 1
014 295-1030 Lift handle black 1
015 999-1049 Washer 1/4 split lock zinc plated 8
016 295-0852 Screw 1/4-20 x 3/4 inch 4
017a 295-1881 Bumper 17 inch 1
017b 195-6138 Bumper 20 inch 1
017c 195-8361 Bumper 24 inch blue on gray 1
018 195-6333 Washer flat 3/16 inch 5
019 195-9303 Pop rivet 9
020 999-0121 Screw 5/16-18 x 1/2 cup point socket set alloy plain finish 2
021a 295-1062 1/4 inch brass fitting 1 17 inch and 20 inch models
021b 195-6117 Washer flat square hole 1 24 inch models
022a 195-6074 Axle shaft 2 17 inch and 20 inch models
022b 295-1882 Axle shaft 1 24 inch models
023 195-6023 Spring washer 5
024 999-0617 Washer 3/8 x 1 flat stainless steel 6
025a 195-6073 Wheel 5 inch 2 17 inch and 20 inch models
025b 195-6024 Wheel 4 inch 2 24 inch models
026 195-6312 T casting 1
027 195-9374 Washer lock 4
028 195-9195 Nylon spacer 4
029a 195-6319 Support strut casting 1 17 inch and 20 inch models
029b 295-1883 Support strut 1 24 inch models
N/S 295-0150 20 inch diamond disc pad driver w/ vinyl splash guard 1
N/S 295-1991 20 inch showerfeed pad driver 1
N/S 295-0150 20 inch diamond disc pad driver w/ vinyl splash guard 1 20 inch
N/S 295-4079 Diamond disk driver 1 17 inch
N/S 170-0694 Odum coupling 1
