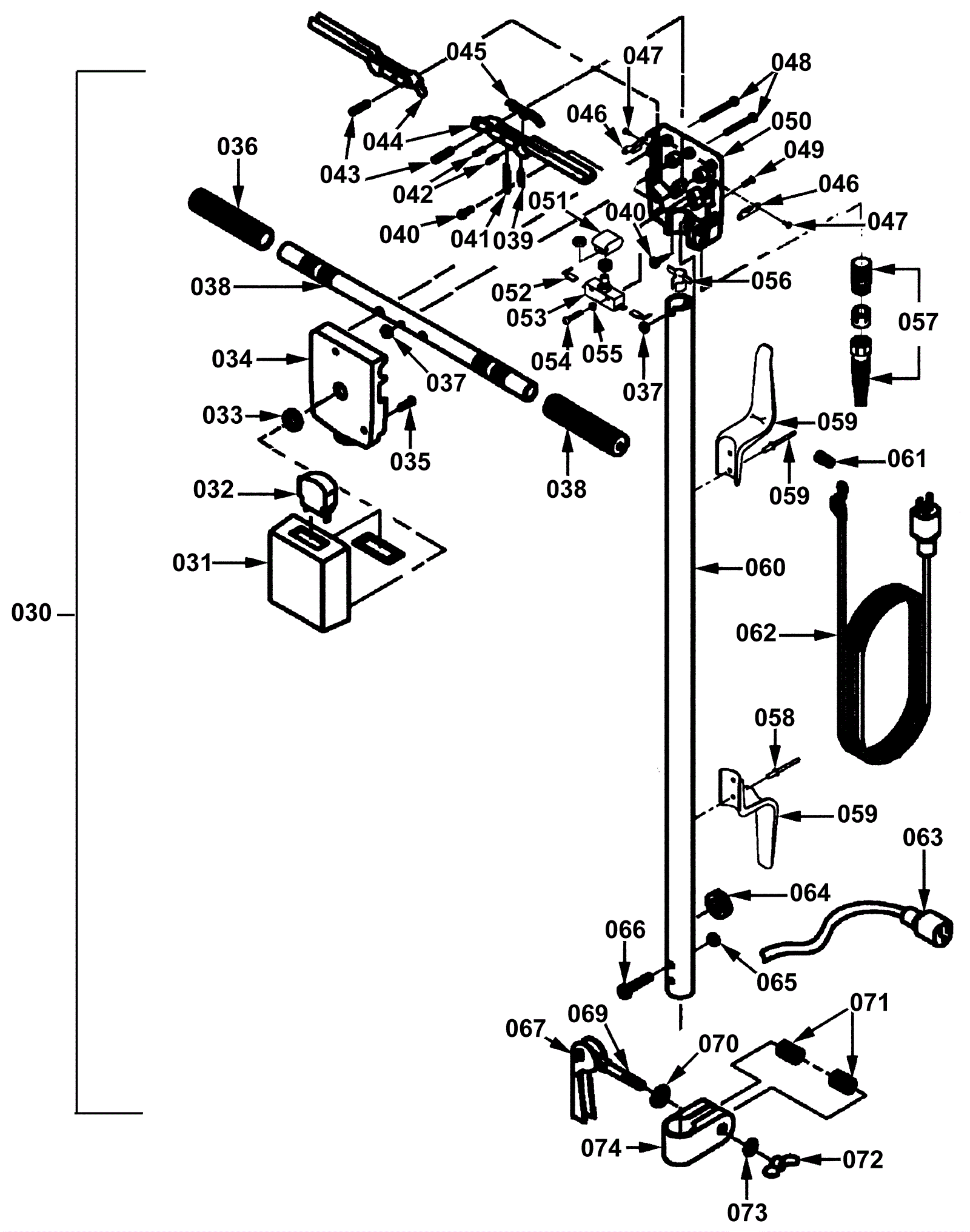

Handle Assembly

#PartDescription ReqNotesAvailability
030 295-1258 Handle and switch box assembly 1 includes 031 thru 075
031 295-1878 Control box 1
032 195-6126 Amp meter with mounting plate 1
033 195-6307 Snap in bushing 1
034 195-6308 Switch box cover (OBSOLETE) 1
035 195-6309 Screw 8-32 x 1/2 swage 3
036 195-6076 Ribbed handle grip 2
037 195-6077 Nut hex #12-24 with washer 3
038 195-6079 Handle bar 1
039 195-6072 Trigger lock spring 2
040 195-6095 Screw 8-32 x 1/4 2
041 195-6085 Extension spring 2
042 195-6086 Roll pin 4
043 195-6087 Trigger pin 2
043b 195-6151 Switch 1 New style Cherryl switch with 2 holes. For the old style switch McGill - 4 holes please order 195-9318
044a 195-6088 Plastic handle 2
044b 195-6089 Trigger and spring assembly 2
045 195-6090 Trigger lock 2
046 195-6091 Reinforcing plate 2
047 195-6092 Screw 6-32 x 1/4 4
048 195-6093 Screw 12-24 x 1 7/16 4
049 195-6094 Screw 12-24 x 1/2 2
050 195-8180 Switch box blue (OBSOLETE) 1
051 195-6084 Leaf spring 1
052 195-6083 Flag terminal 2
053a 195-6151 Switch 1 Old style switch McGill - 4 holes. For new style Cherryl switch with 2 holes please order 195-6151.
054 195-6082 Screw 6-32 x 1 inch 2
055 195-6081 Washer internal tooth 2
056 195-6080 Cord clamp 1
057 195-6148 Strain relief 1
058 195-6153 Pop rivet 4
059 195-6139 Cord hook 2
060 195-6128 Handle tube 1
061 295-1617 Wire connector 1
062 195-6071 14/3 power cord 50ft 1
063 295-0581 14/3 power cord 48 inch 1
064 195-6156 Grommet 1
065 999-0069 Nut 5/16-18 hex 2
066 195-6014 Bolt 5/16-18 x 1 1/2 2
067a 195-6157 Clamp lever kit with U-clamp 1
067b 195-6157 Clamp lever kit with U-clamp 1
069 195-6158 Bolt .37-16 x 3.37 1
070 195-6117 Washer flat square hole 1
071 195-6157 Clamp lever kit with U-clamp 2
072 195-6157 Clamp lever kit with U-clamp 1
073 999-0617 Washer 3/8 x 1 flat stainless steel 1
074 195-6157 Clamp lever kit with U-clamp 1
075 195-6157 Clamp lever kit with U-clamp 1
N/S 295-1384 Solution tank white 1
