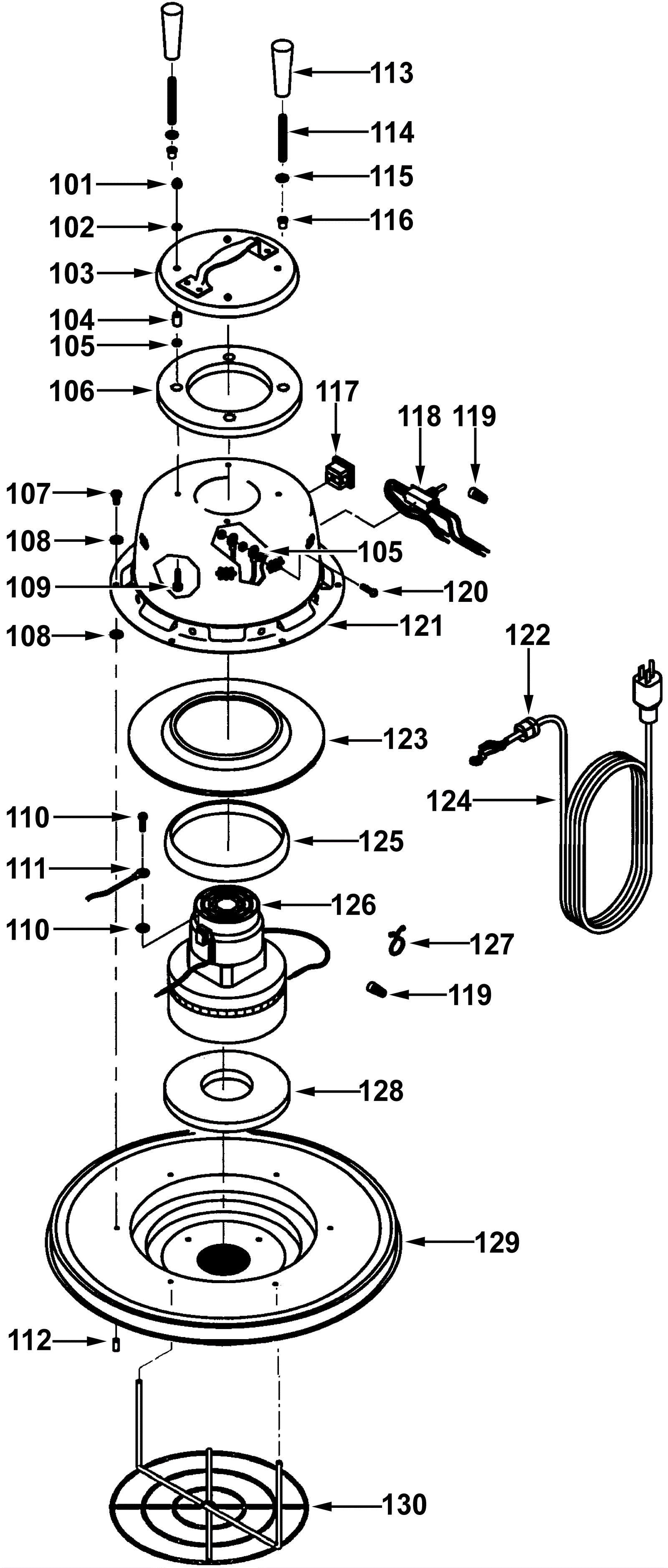

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
999-0345
|
Nut 10-24 acorn brass |
4 |
|
|
102 |
195-6333
|
Washer flat 3/16 inch |
8 |
|
|
103 |
195-9162
|
Top cover |
1 |
|
|
104 |
295-1360
|
Nylon spacer |
4 |
|
|
105 |
295-1352
|
Nut #10 hex with extended lockwasher |
7 |
|
|
106 |
195-9123
|
Silencer disc |
1 |
|
|
107 |
295-1149
|
Screw |
6 |
|
|
108 |
195-9172
|
Washer |
3 |
|
|
109 |
295-1390
|
Screw 10-24 x 1 |
4 |
|
|
110 |
195-9597
|
Screw 10-32 x .31 phillips |
1 |
|
|
111 |
295-1079
|
Lead #16 with terminal green |
1 |
|
|
112 |
295-1483
|
Screw protector |
6 |
|
|
113 |
195-6803
|
Plastic taper handle |
2 |
|
|
114 |
195-8163
|
Coiled spring |
2 |
|
|
115 |
295-0485
|
Washer flat |
2 |
|
|
116 |
195-6804
|
Black nylon bushing |
2 |
|
|
117 |
195-8382
|
Push in plug |
1 |
|
|
118 |
295-1251
|
Switch |
1 |
|
|
119 |
195-6150
|
Wire connector |
2 |
|
|
120 |
295-1411
|
Screw |
1 |
|
|
121 |
295-0680
|
Dome white |
1 |
|
|
122 |
195-9648
|
Strain relief |
1 |
|
|
123 |
295-1160
|
Motor adapter |
1 |
|
|
124 |
295-1066
|
16/3 power cord 30 ft |
1 |
|
|
125 |
195-7465
|
Motor gasket rubber |
1 |
|
|
126 |
195-9675
|
115V vacuum motor 2 HP |
1 |
|
|
127 |
195-9204
|
Large purse lock |
1 |
|
|
128 |
195-9348
|
Gasket |
1 |
|
|
129 |
295-1117
|
Deep cover assembly with screen |
1 |
|
|
130 |
195-6841
|
Filter shaker frame |
1 |
|
|
