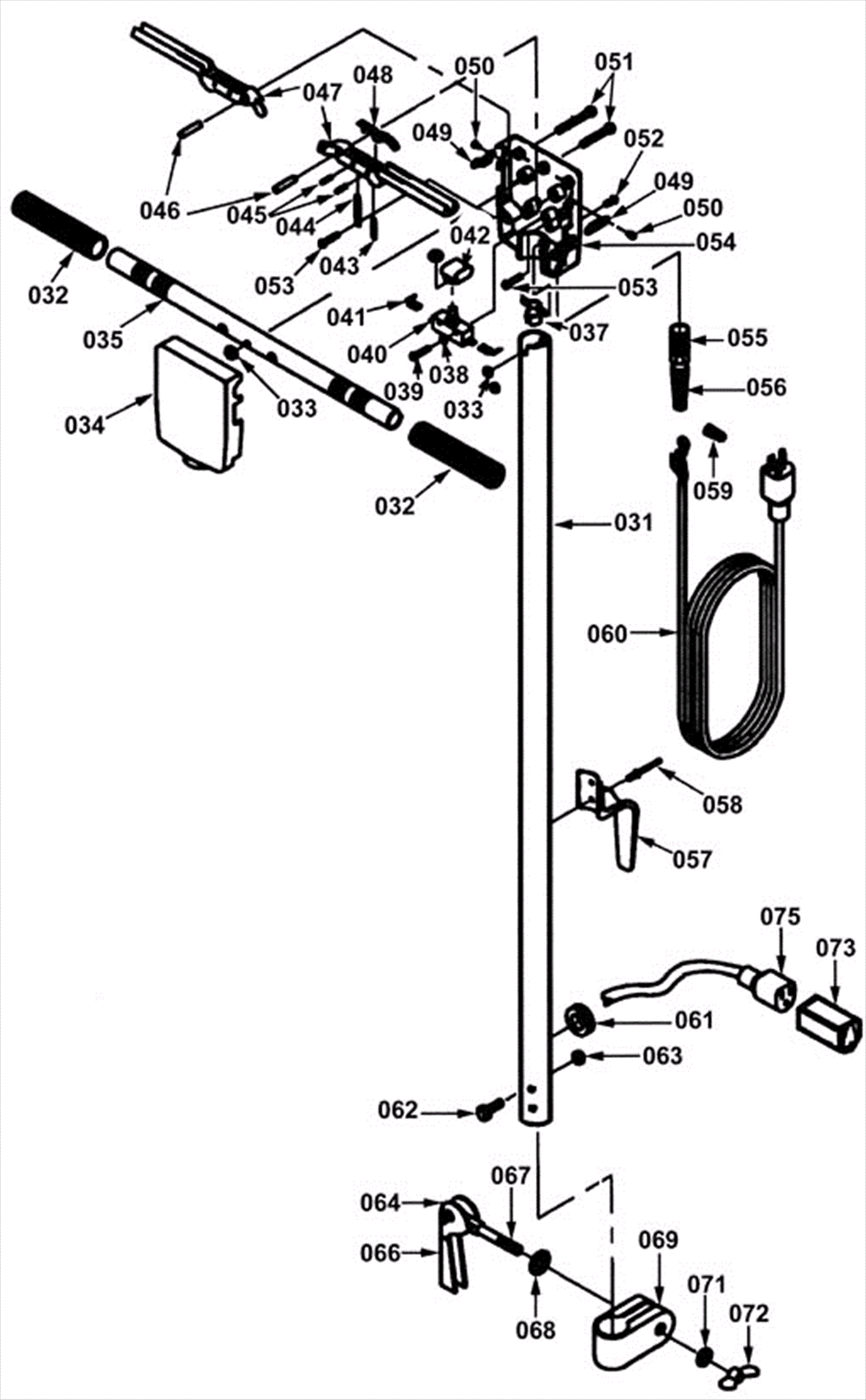

MD-10B Handle Assembly

#PartDescriptionPriceReqNotesAvailability
031a 295-1875 Handle tube $487.52 1 10 inch models usually ships 1-5 days
031b 195-6128 Handle tube $71.51 1 13 inch models usually ships 9-26 days
032 195-6076 Ribbed handle grip $9.55 2 usually ships 9-26 days
033 195-6077 Nut hex #12-24 with washer $0.99 3 usually ships 9-26 days
034 195-8179 Switch box cover blue $38.46 1 usually ships 1-5 days
035 195-6079 Handle bar $20.90 1 usually ships 9-26 days
037 195-6080 Cord clamp $9.24 1 usually ships 9-26 days
038 195-6081 Washer internal tooth $0.99 2 usually ships 1-5 days
039 195-6082 Screw 6-32 x 1 inch $0.99 2 usually ships 9-26 days
040a 195-6151 Switch $38.21 1 Old style switch McGill - 4 holes. For new style Cherryl switch with 2 holes please order 195-6151. usually ships 9-26 days
040b 195-6151 Switch $38.21 1 New style Cherryl switch with 2 holes. For the old style switch McGill - 4 holes please order 195-9318 usually ships 9-26 days
041 195-6083 Flag terminal $2.20 2 usually ships 9-26 days
042 195-6084 Leaf spring $7.70 1 usually ships 9-26 days
043 195-6072 Trigger lock spring $2.48 2 ships same day
044 195-6085 Extension spring $5.97 2 ships same day
045 195-6086 Roll pin $1.20 4 usually ships 9-26 days
046 195-6087 Trigger pin $5.50 2 ships same day
047 195-6088 Plastic handle $20.26 2 usually ships 9-26 days
048 195-6090 Trigger lock $13.20 2 usually ships 9-26 days
049 195-6091 Reinforcing plate $11.00 2 usually ships 9-26 days
050 195-6092 Screw 6-32 x 1/4 $0.99 4 usually ships 1-5 days
051 195-6093 Screw 12-24 x 1 7/16 $1.20 4 usually ships 9-26 days
052 195-6094 Screw 12-24 x 1/2 $2.20 2 usually ships 9-26 days
053 195-6095 Screw 8-32 x 1/4 $0.99 3 usually ships 1-5 days
054 195-8180 Switch box blue (OBSOLETE) $47.83 1 usually ships 9-26 days
055 295-1876 Bushing reducer brass Call for price 1 MD-10A and MD-13A usually ships 1-5 days
056a 295-1877 Strain relief Call for price 1 MD-10A, MD-10B, MD-13A, MD-13B usually ships 1-5 days
056b 295-0560 Strain relief $21.82 1 MD-10B, MD-10C, MD-13B, MD-13C, MD-13D usually ships 1-5 days
057 195-6139 Cord hook $28.60 2 usually ships 9-26 days
058 195-6153 Pop rivet $1.78 4 usually ships 1-5 days
059 295-1617 Wire connector $1.78 1 usually ships 9-26 days
060a 195-9321 16/3 power cord 50 ft $93.57 1 MD-10A, MD-10B, MD-13A, MD-13B usually ships 1-5 days
060b 195-6071 14/3 power cord 50ft $156.42 1 MD-10C, MD-13C, MD-13D ships same day
061 195-6156 Grommet $1.38 1 usually ships 9-26 days
062 195-6014 Bolt 5/16-18 x 1 1/2 $0.99 2 usually ships 9-26 days
063 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
064a 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
064b 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
066a 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
066b 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
067 195-9444 Bolt $10.41 1 usually ships 1-5 days
068 195-6117 Washer flat square hole $6.60 1 usually ships 1-5 days
069 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
071 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
072 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
073 195-6155 Sleeve connector grey $10.91 1 usually ships 1-5 days
075a 295-0581 14/3 power cord 48 inch $26.27 1 13 inch models usually ships 9-26 days
075b 195-6154 Handle cable $19.80 1 10 inch models usually ships 9-26 days
