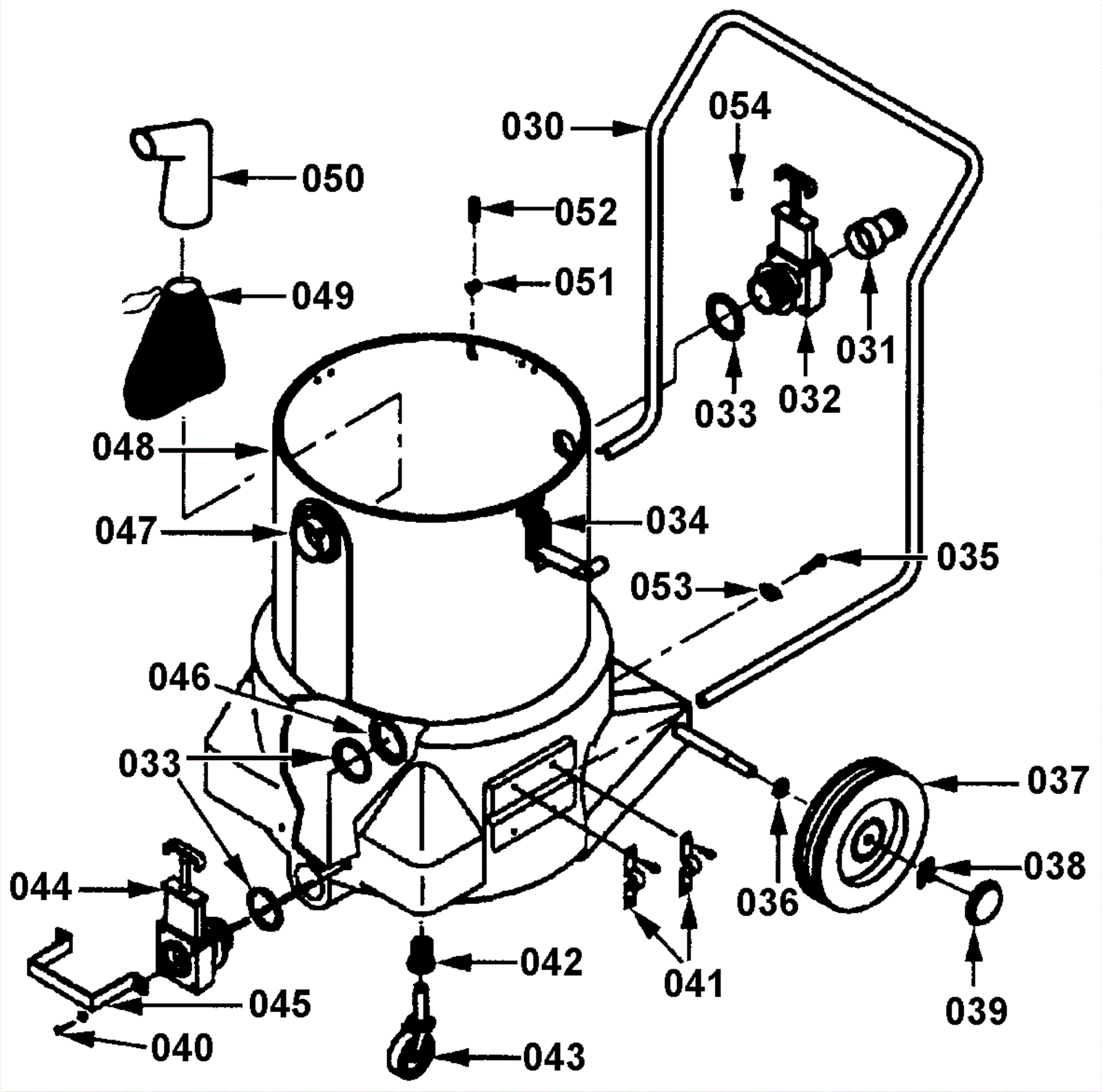

Tank Assembly

#PartDescription ReqNotesAvailability
030 295-1154 Push handle 1
031 195-9043 Hosebarb 1
032 295-0563 Rear gate valve 1
033 295-1081 Ring gasket 3
034 195-9113 Spring loaded clamp 3
035 195-8697 Screw 1/4 - 20 x 3/4 2
036 195-6315 Washer wave 2
037 195-9236 8 inch wheel 2
038 195-6033 Washer large retainer 2
039 195-6034 Hub cap 2
040 195-6337 Screw 1/4-20 x 1/2 10
041 195-8698 Handle brackets 4
042 195-9263 Plastic wheel socket 2
043 195-8699 Swivel casters 3 inch 2
044 295-1196 Front gate valve 1
045 195-9651 Guard for valve gate 1
046 295-1064 Conduit nut 1.5 in 1
047 195-8700 Inlet connector 1
048 295-0482 Can 1
049 295-1094 Sack strainer 1
050 295-0576 Inlet deflector 1
051 195-8701 Grommet 1
052 195-8702 Plug 1
053 295-0485 Washer flat 2
054 195-8703 Aluminum spacer 2
