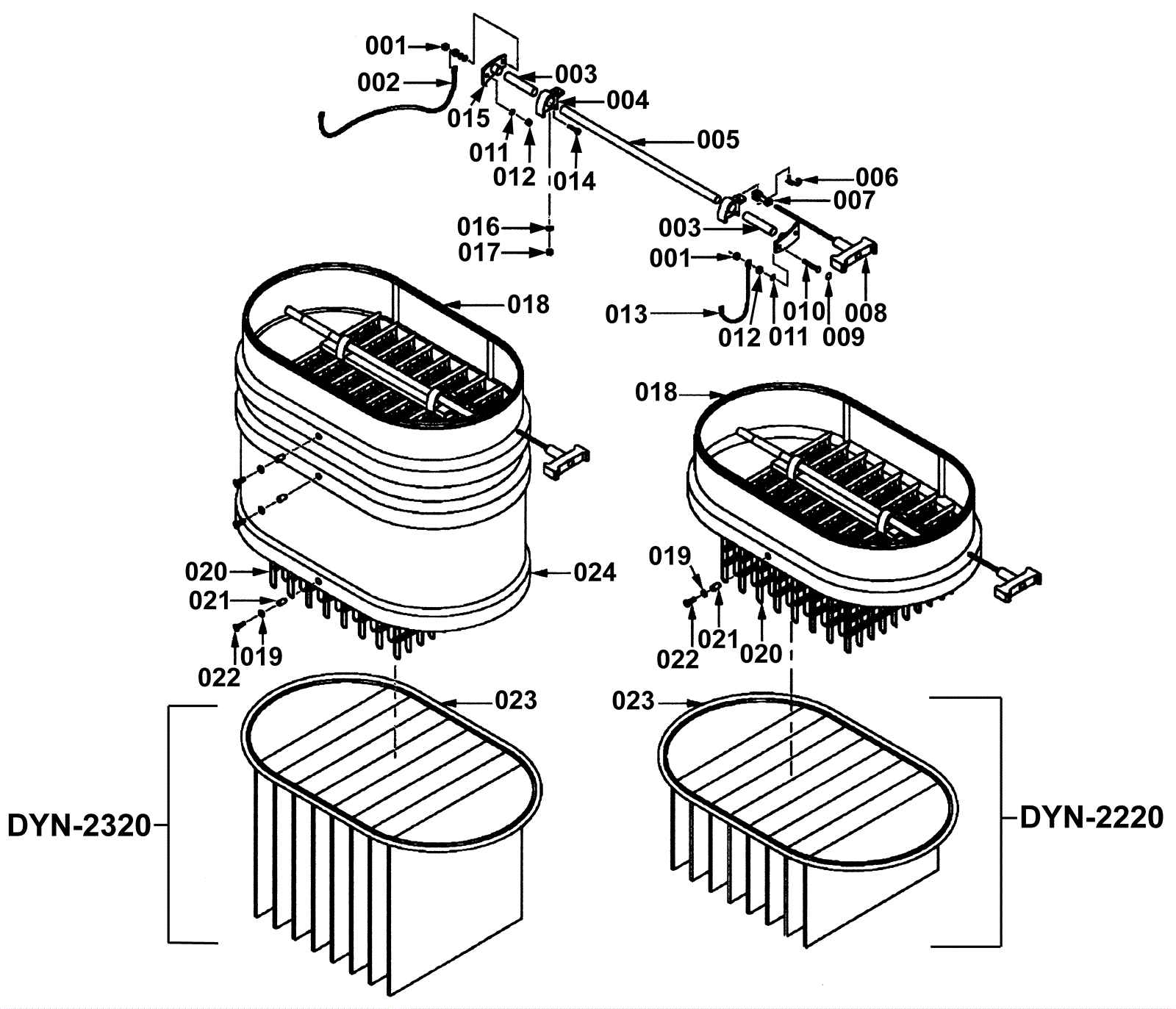

Deck Assembly

#PartDescription ReqNotesAvailability
001 195-8616 Nut M6 lock 2
002a 195-8679 Ground deflector 1 Dyn-2220
002b 195-8668 Ground deflector 1 Dyn-2320
003 195-8669 Clear hose 2
004 195-8670 Slide assembly with hook 2
005 195-8671 Slide bar 1
006 195-8672 Spring clip 6 x 12 1
007 195-8673 Steel yoke end 1
008 195-8674 Shaker bar with swivel handle 1
009 195-8675 Plastic plug 4
010 195-8676 Screw M6 x 30 allen head countersunk 4
011 195-8607 Washer M6 split lock 4
012 195-8678 Nut M6 hex 4
013 195-8685 Shaker rod mounting support 1
014 195-8660 Screw M8 1.25 x 20 hex cap 1
015 195-8680 Ground shaker for motor deck 2
016 195-8681 Washer M8 lock 1
017 195-8639 Nut M8 hex 1
018 195-8682 Small housing spacer blue 1
019 195-8614 Washer 1/4 external star 2
020 195-7177 Filter screen insert 1
021 195-8613 Blind pem M6 2
022 195-8615 Screw M6 x 25 allen head 2
023a 195-8175 Filter 1 Dyn-2220
023b 195-8683 Filter 1 Dyn-2320
024 195-8684 Large housing spacer blue 1
