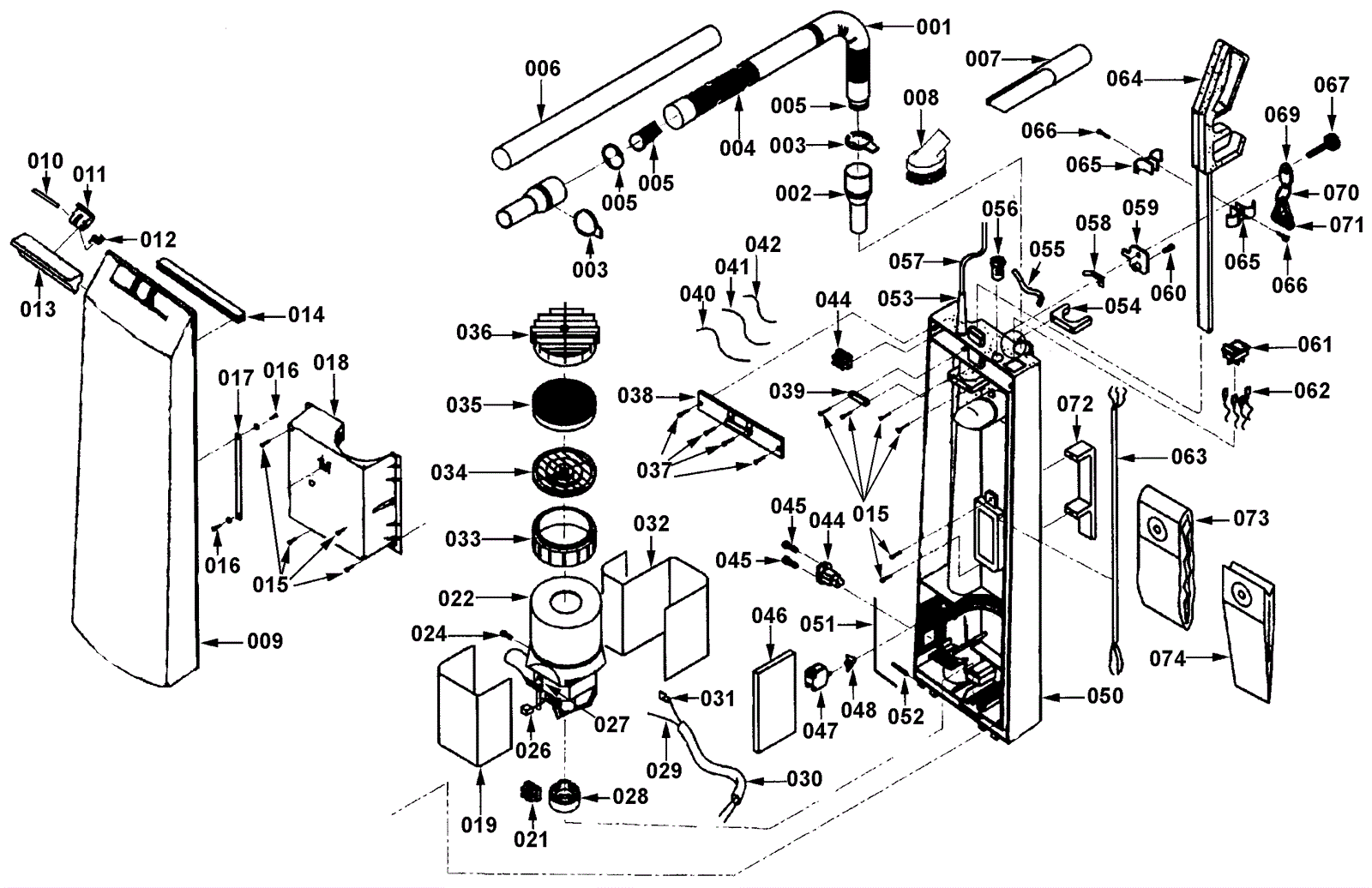

TM-1895 Upper Body Assembly

#PartDescriptionPriceReqNotesAvailability
001 295-1051 Stretch hose with lock coupler $153.85 1 includes 002 thru 005a usually ships 1-5 days
002 195-8573 Hose cuff $10.89 2 usually ships 1-5 days
003 295-1624 Hose end lock $9.35 2 usually ships 1-5 days
004 295-1050 Strech hose $87.32 1 usually ships 1-5 days
005a 195-8574 Hose couplng felt seal Call for price 2 usually ships 1-5 days
005b 295-1389 Coupling inside hose end $8.32 2 usually ships 1-5 days
006 295-1620 Steel wand $81.31 1 usually ships 1-5 days
007 295-1625 Crevice tool $16.63 1 usually ships 1-5 days
008 295-1053 Dusting brush $27.50 1 usually ships 9-26 days
009 295-1232 Cover assembly complete new style $299.38 1 includes 010 thru 014 usually ships 1-5 days
010 195-8574 Hose couplng felt seal Call for price 1 usually ships 1-5 days
011 195-8575 Cover lock Call for price 1 usually ships 1-5 days
012 195-8576 Spring Call for price 1 usually ships 1-5 days
013 195-8577 Cover latch $13.52 1 usually ships 1-5 days
014 195-8578 Sealing gasket Call for price 1 usually ships 1-5 days
015 195-8500 Screw M4 x 10 Call for price 11 usually ships 1-5 days
016 195-8579 Screw 3 x 8 Call for price 2 usually ships 1-5 days
017 195-8580 Cover movement restraint Call for price 1 usually ships 1-5 days
018 195-8534 Motor housing cover $27.25 1 usually ships 1-5 days
019 195-8581 Vac motor foam Call for price 1 usually ships 1-5 days
021 195-8582 Terminal block Call for price 2 usually ships 1-5 days
022a 195-8583 Vac motor assembly Call for price 1 includes 022b thru 027 usually ships 1-5 days
022b 195-8584 Vac motor Call for price 1 usually ships 1-5 days
026 195-7431 Thermal cut out $26.20 1 usually ships 1-5 days
027 295-1049 Carbon brush $24.95 1 usually ships 1-5 days
028 195-8586 Bottom motor mount Call for price 1 usually ships 1-5 days
029 195-8587 Wire Call for price 1 usually ships 1-5 days
030 195-8588 Sleeve $29.52 1 usually ships 1-5 days
031 195-9626 Thermal cut off Call for price 1 usually ships 1-5 days
032 295-1627 Vacuum motor foam $8.32 1 usually ships 1-5 days
033 195-8538 Upper motor gasket Call for price 1 usually ships 1-5 days
034 295-1630 Motor filter grill $16.63 1 usually ships 1-5 days
035 295-1629 Micro dust filter $6.39 1 usually ships 1-5 days
036 195-8589 Dust filter holder Call for price 1 usually ships 1-5 days
037 195-8533 Screw M8.5 x 16 Call for price 4 usually ships 1-5 days
038 195-8531 Connection cover assembly Call for price 1 usually ships 1-5 days
039 195-8566 Cable lock Call for price 1 usually ships 1-5 days
040 195-8590 Lead wire Call for price 1 usually ships 1-5 days
041 195-8591 Lead wire Call for price 1 usually ships 1-5 days
042 195-8592 Lead wire $51.99 1 usually ships 1-5 days
044 195-7422 3 plug receptacle $51.99 1 usually ships 1-5 days
045 295-1380 Screw 3.5 x 13 $3.49 2 usually ships 1-5 days
046 295-1628 Filter $9.15 1 usually ships 1-5 days
047 195-7429 Open switch $68.62 1 usually ships 1-5 days
048 195-7427 Switch button $3.64 1 usually ships 1-5 days
050 295-0688 Housing gray $266.11 1 includes 051 thru 053 usually ships 1-5 days
051 195-7425 Gasket $13.07 1 usually ships 1-5 days
052 195-8540 Cover shaft Call for price 2 usually ships 1-5 days
053 195-8593 Strain relief $8.71 1 usually ships 1-5 days
054 195-8594 Wand lock Call for price 1 usually ships 1-5 days
055 195-8595 Rubber tube Call for price 1 usually ships 1-5 days
056 195-8596 Full bag indicator Call for price 1 usually ships 1-5 days
057 195-9497 18/3 power cord 50 ft $76.93 1 usually ships 1-5 days
058 195-8511 Anti static line assembly Call for price 1 usually ships 1-5 days
059 195-8512 Cover Call for price 1 usually ships 1-5 days
060 195-8533 Screw M8.5 x 16 Call for price 1 usually ships 1-5 days
061 295-1623 On/off switch $26.52 1 usually ships 1-5 days
062 295-1622 Terminal $62.37 4 usually ships 1-5 days
063 195-8597 Cable 3 x 3/4 Call for price 1 usually ships 1-5 days
064 295-1231 Handle grip and metal tube with head $137.50 1 includes 065 thru 067 usually ships 1-5 days
065 195-8598 Tool holder Call for price 2 usually ships 1-5 days
066 195-8599 Screw 4 x 20 Call for price 2 usually ships 1-5 days
067 195-8600 Screw M5-8 x 40 thumb Call for price 1 usually ships 1-5 days
069a 195-8527 Cable holder kit $10.89 1 includes 069b thru 071 usually ships 1-5 days
069b 195-8601 Cable holder $3.49 1 usually ships 1-5 days
070 195-8602 Metal ring $3.49 1 usually ships 1-5 days
071 195-8603 Cord restraint $5.75 1 usually ships 1-5 days
072 195-8522 Lift handle Call for price 1 usually ships 1-5 days
073 295-1615 Cloth shake out bag $42.96 1 usually ships 9-26 days
074 195-6134 Paper bags (pkg of 5) $15.40 1 usually ships 9-26 days
