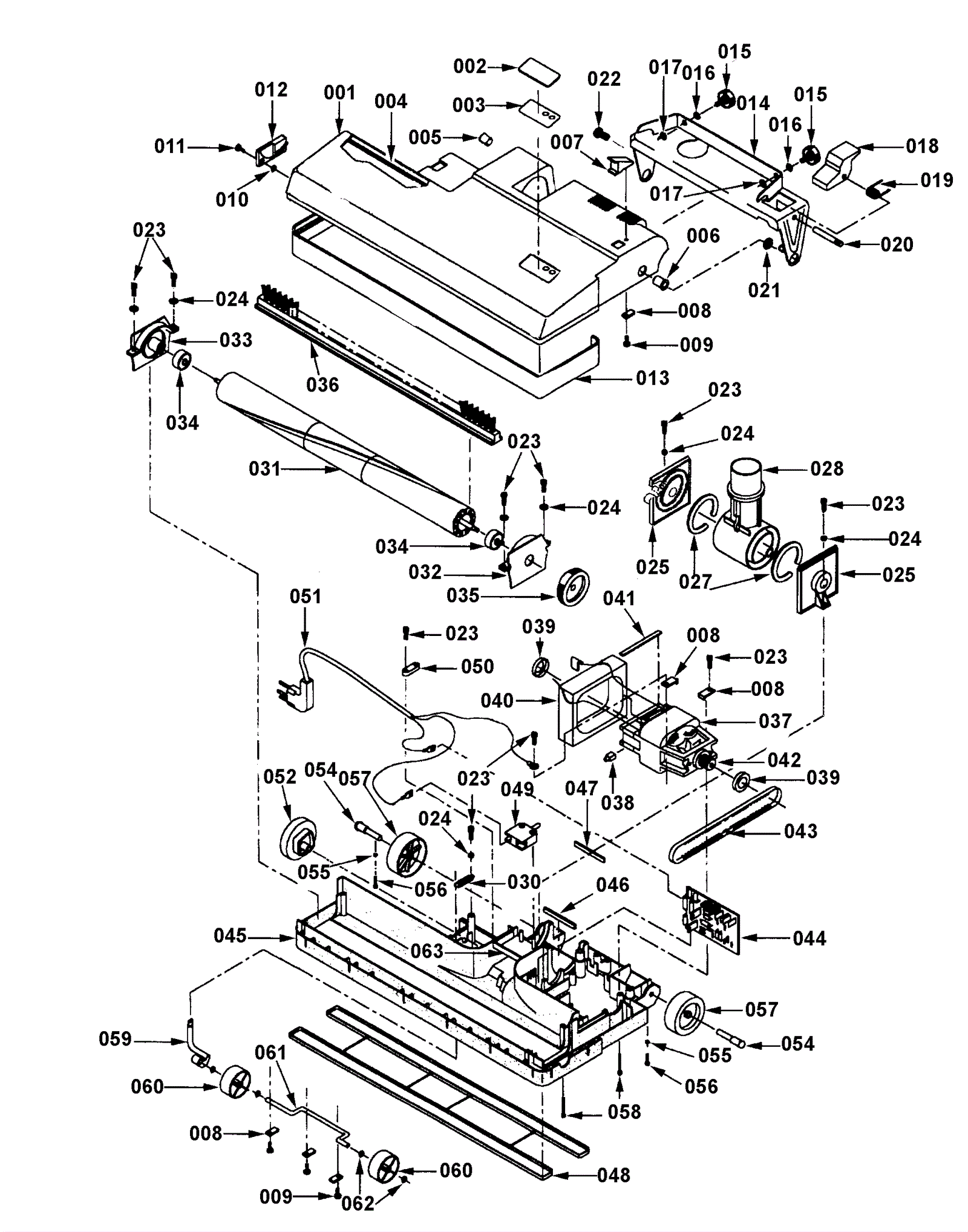

TM-1895 Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 295-0138 Cover assembly 18 inch gray $311.85 1 includes 002 thru 009 usually ships 1-5 days
002 195-8541 LED cover Call for price 1 usually ships 1-5 days
003 195-7426 Electronic instructor $5.19 1 usually ships 1-5 days
004 195-7432 Sealing brush rubber $12.47 1 usually ships 1-5 days
005 195-8542 Right bushing Call for price 1 usually ships 1-5 days
006 195-8543 Left bushing $2,286.90 1 usually ships 1-5 days
007 195-8544 Latch $8.47 1 usually ships 9-26 days
008 195-7441 Fixing plate $8.71 6 usually ships 1-5 days
009 295-1382 Screw 4 x 10 $1.78 3 usually ships 1-5 days
010 195-7433 Lock washer $14.56 1 usually ships 1-5 days
011 295-1380 Screw 3.5 x 13 $3.49 1 usually ships 1-5 days
012 195-7443 Brush access cover $17.89 1 usually ships 1-5 days
013 195-8545 18 inch bumper Call for price 1 usually ships 1-5 days
014 295-1235 Wraparound support bar new style $397.10 1 includes 015 thru 020 usually ships 1-5 days
015 195-7440 Screw $10.91 2 usually ships 1-5 days
016 195-8546 Ratchet washer Call for price 4 usually ships 1-5 days
017 295-0555 Fiber washer $4.16 2 usually ships 1-5 days
018 195-7423 Handle release pedal $16.70 1 usually ships 1-5 days
019 195-7452 Spring $4.16 1 usually ships 1-5 days
020 195-8547 Pedal shaft Call for price 1 usually ships 1-5 days
021 195-8548 Washer metal Call for price 1 usually ships 1-5 days
022 195-6111 Screw $15.60 1 usually ships 1-5 days
023 195-8500 Screw M4 x 10 Call for price 8 usually ships 1-5 days
024 195-8549 Washer steel Call for price 8 usually ships 1-5 days
025 195-8550 Neck guide assembly with felt Call for price 2 usually ships 1-5 days
027 195-8551 Felt gasket Call for price 2 usually ships 1-5 days
028 195-6109 Swivel neck $37.94 1 usually ships 1-5 days
029 295-1382 Screw 4 x 10 $1.78 1 usually ships 1-5 days
030 195-8552 Spring Call for price 1 usually ships 1-5 days
031 195-9119 Brush roller assembly $411.64 1 includes 032a thru 036 usually ships 1-5 days
032a 295-1234 Brush roller assembly with driver $220.70 1 usually ships 1-5 days
032b 195-8553 Left roller support Call for price 1 usually ships 1-5 days
033a 295-1048 Right roll support assembly $29.11 1 usually ships 1-5 days
033b 195-8554 Right roller support Call for price 1 usually ships 1-5 days
034 195-8555 Brush bearing $15.84 1 usually ships 1-5 days
035 195-8556 Brush pulley $20.33 1 usually ships 1-5 days
036 195-8557 18 inch brush strip $33.40 1 usually ships 1-5 days
037 195-8558 Brush motor 115V Call for price 1 usually ships 1-5 days
038 195-8559 Carbon brush with holder Call for price 2 usually ships 1-5 days
039 195-8560 Brush motor rubber $2.55 2 usually ships 1-5 days
040 195-8561 Brush motor foam Call for price 1 usually ships 1-5 days
041 195-7432 Sealing brush rubber $12.47 2 usually ships 1-5 days
042 195-7444 Motor pulley $21.78 1 usually ships 1-5 days
043 195-7445 Belt $21.05 1 usually ships 1-5 days
044 195-7446 Electronic brush control $198.00 1 usually ships 1-5 days
045 195-8562 Bottom brush housing gray Call for price 1 includes 046 thru 048 usually ships 1-5 days
046 195-8563 Brush housing felt Call for price 1 usually ships 1-5 days
047 195-8664 Switch housing felt Call for price 1 usually ships 1-5 days
048 195-9219 Brush protector $145.53 1 usually ships 1-5 days
049 195-8565 Closed switch Call for price 1 usually ships 1-5 days
050 195-8566 Cable lock Call for price 1 usually ships 1-5 days
051 195-7447 Cable with plug $45.74 1 usually ships 1-5 days
052 195-8567 Height adjustment knob Call for price 1 usually ships 1-5 days
054a 195-6732 Axle kit $29.70 2 includes 054b thru 056 usually ships 1-5 days
054b 195-7449 Caster shaft $18.72 1 usually ships 1-5 days
055 195-8569 Washer M3 spring Call for price 1 usually ships 1-5 days
056 195-8570 Screw M3 x 16 Call for price 1 usually ships 1-5 days
057 195-7448 Rear caster $13.01 2 usually ships 9-26 days
058 295-1381 Screw 5 x 40 $2.76 5 usually ships 1-5 days
059 195-9220 Caster adjustment handle $58.21 1 usually ships 1-5 days
060 195-7450 Brush caster front $10.41 1 usually ships 1-5 days
061 195-9221 Front shaft $47.83 1 usually ships 1-5 days
062 295-0573 Starlock palnut 6mm $6.25 4 usually ships 1-5 days
063 195-8572 Switch box Call for price 1 usually ships 1-5 days
