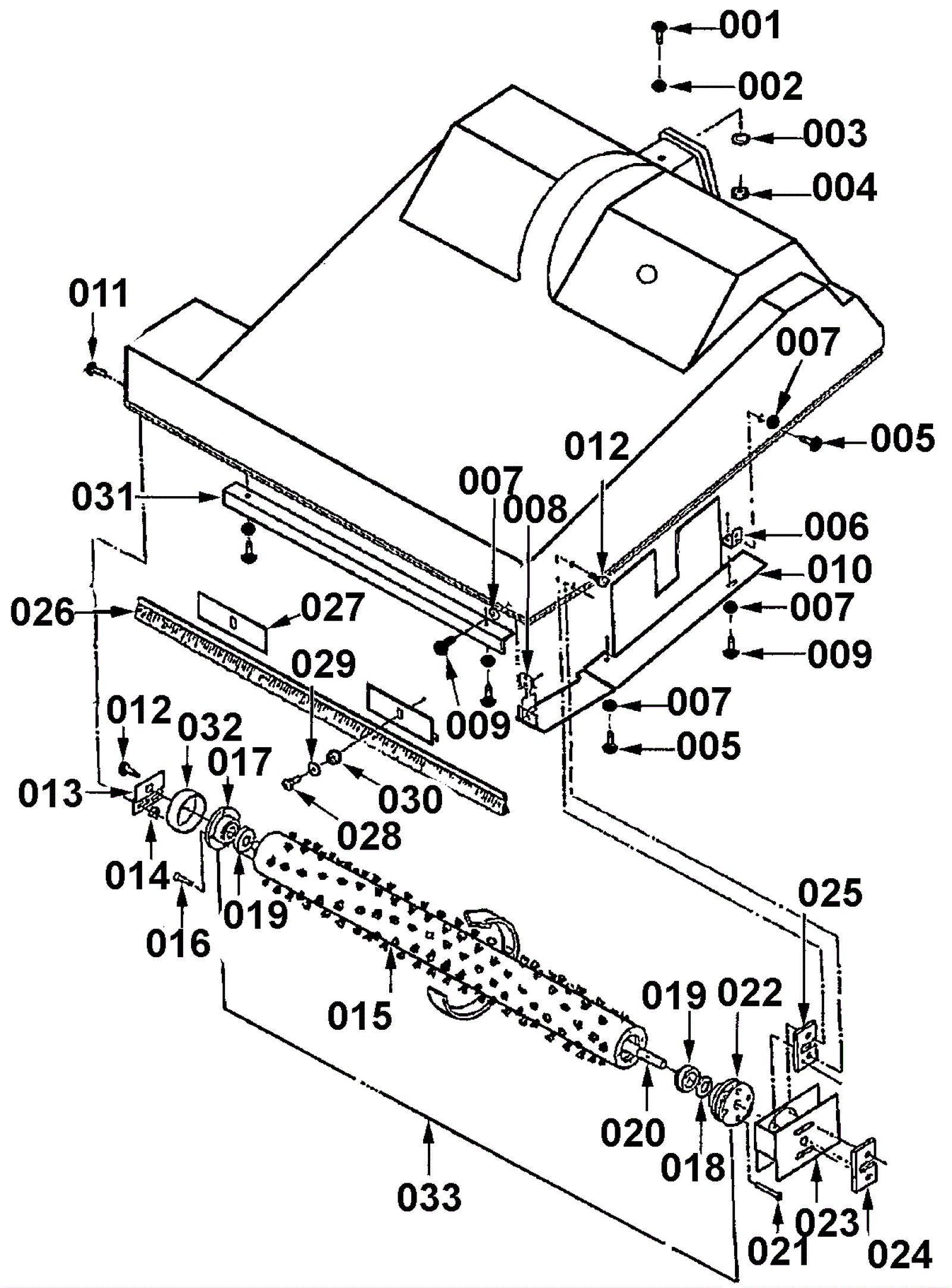

BG-CC28 Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 1 ships same day
002 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
003 999-1049 Washer 1/4 split lock zinc plated $0.99 1 ships same day
004 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
005 195-9426 Screw lens head $1.62 2 usually ships 1-5 days
006 195-8475 Tinnerman nut Call for price 1 usually ships 1-5 days
007 195-9373 Washer $1.62 6 usually ships 1-5 days
008 195-8476 Tinnerman nut Call for price 1 usually ships 1-5 days
009 195-9426 Screw lens head $1.62 2 usually ships 1-5 days
010a 195-9410 Belt guard $52.92 1 (SV Models) usually ships 1-5 days
010b 195-8477 Belt guard Call for price 1 (SVG Models) usually ships 1-5 days
011 195-9382 Screw $1.62 2 usually ships 9-26 days
012 195-9384 Screw $1.68 3 usually ships 9-26 days
013 195-9399 Brush bracket $10.84 1 usually ships 9-26 days
014 195-9385 Nut $1.62 2 usually ships 9-26 days
015a 195-8478 20 inch brush Call for price 1 (SV200) usually ships 1-5 days
015b 195-8479 24 inch brush $220.80 1 (SV240) usually ships 9-26 days
015c 195-9442 28 inch brush assembly $250.30 1 (SV280) (includes 15-22) usually ships 9-26 days
015d 195-8481 20 inch brush $72.00 1 (SVG201) usually ships 9-26 days
015e 195-8482 24 inch brush $173.88 1 (SVG241) usually ships 1-5 days
015f 195-9442 28 inch brush assembly $250.30 1 (SV281) (includes 15-22) usually ships 9-26 days
016 195-9510 Screw $1.80 4 usually ships 9-26 days
017 195-6592 Bearing cap $48.00 1 usually ships 9-26 days
019 195-6593 Bearing $18.00 2 usually ships 9-26 days
020a 195-9416 20 inch brush shaft $56.70 1 usually ships 1-5 days
020b 195-9402 24 inch brush shaft $59.54 1 usually ships 9-26 days
020c 195-9417 28 inch brush shaft $56.70 1 usually ships 9-26 days
021 195-9511 Screw 8-18 x 1 1/4 hi/lo $0.90 4 usually ships 9-26 days
022 195-9397 Brush pulley $48.00 1 usually ships 1-5 days
023 195-9415 Thread guard $25.52 1 usually ships 9-26 days
024 195-9418 Plate $26.01 1 usually ships 9-26 days
025 195-9413 Plate $20.59 1 usually ships 9-26 days
026a 195-8484 20 inch brush strip Call for price 1 usually ships 1-5 days
026b 295-1197 24 inch brush strip $34.96 1 usually ships 1-5 days
026c 295-1198 28 inch brush strip $28.00 1 usually ships 9-26 days
027 195-8485 Brush strip holder $7.99 2 usually ships 1-5 days
028 195-6304 Screw 10-24 x 1/2 type F $1.62 2 usually ships 1-5 days
029 195-9242 Knob washer $1.62 4 usually ships 1-5 days
030 195-6326 Washer nylon $1.35 4 usually ships 9-26 days
031 195-9405 Mount bracket $18.90 1 usually ships 1-5 days
032 195-9419 Thread guard $13.95 1 usually ships 9-26 days
033a 195-9440 20 inch brush assembly $267.30 1 (SV200) (includes 15-22) usually ships 1-5 days
033b 195-8479 24 inch brush $220.80 1 (SV240) (includes 15-22) usually ships 9-26 days
033c 195-9442 28 inch brush assembly $250.30 1 (SV280) (includes 15-22) usually ships 9-26 days
033d 195-9440 20 inch brush assembly $267.30 1 (SV201) (includes 15-22) usually ships 1-5 days
033e 195-8487 24 inch brush assembly (OBSOLETE) Call for price 1 (SV241) (includes 15-22) usually ships 1-5 days
033f 195-8488 28 inch brush assembly $250.30 1 (SV281) (includes 15-22) usually ships 9-26 days
N/S 195-8489 24 inch baffle strip Call for price 1 usually ships 1-5 days
N/S 295-1187 20 inch baffle strip $9.46 1 usually ships 1-5 days
N/S 295-1188 28 inch baffle strip $19.19 1 usually ships 1-5 days
