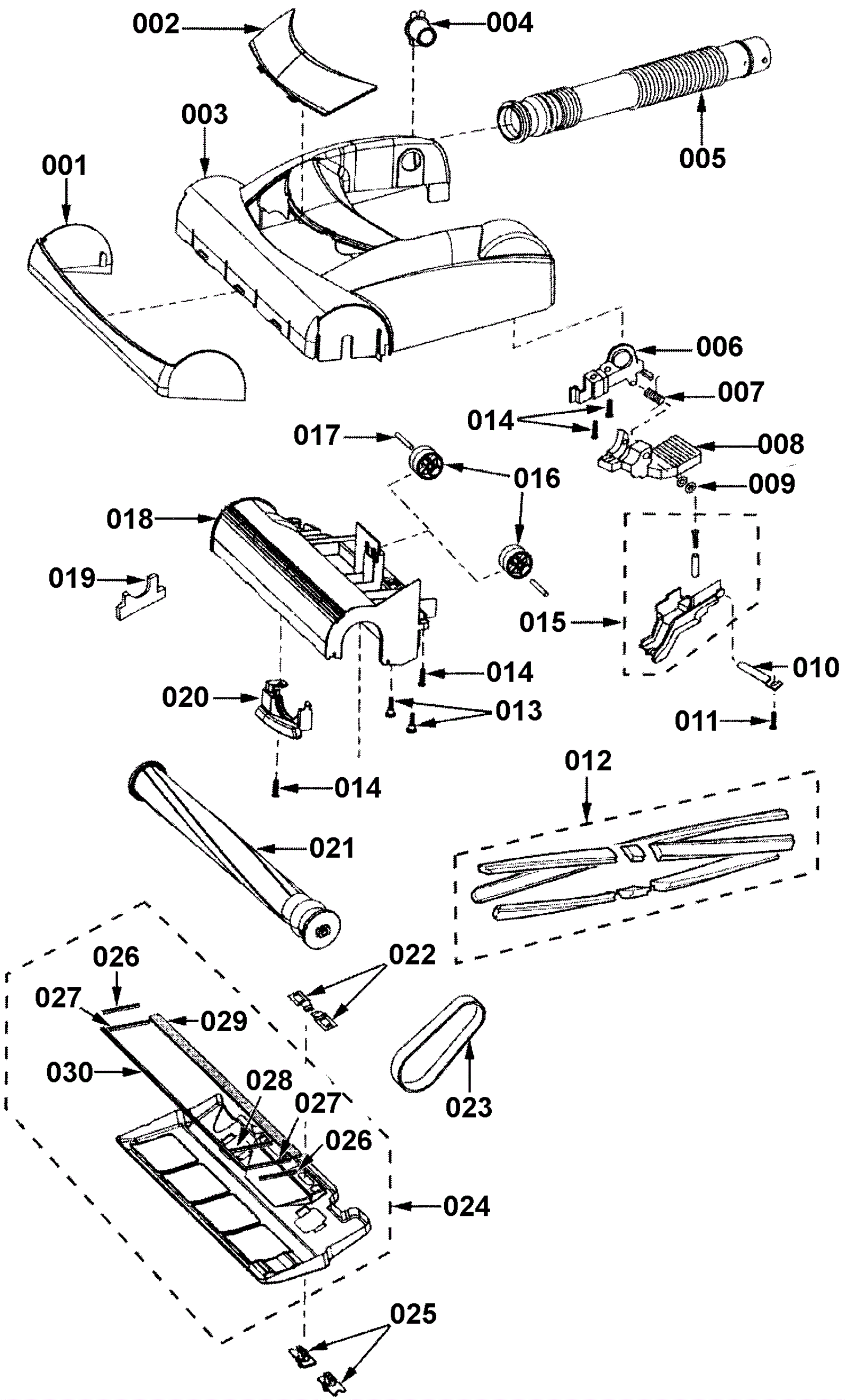

QC-1415 PLUS Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 195-6636 Furniture guard bumper $30.80 1 usually ships 15-20 days
002 195-6637 Window cover $27.04 1 usually ships 1-5 days
003 195-6635 Nozzle housing $73.08 1 usually ships 15-20 days
004 195-8038 Plastic shaft $6.25 1 usually ships 1-5 days
005 195-8051 Nozzle hose $29.04 1 usually ships 1-5 days
006 195-6638 Bracket $8.71 1 usually ships 1-5 days
007 195-8043 Pedal spring $2.09 1 usually ships 15-20 days
008 195-6639 Pedal $7.70 1 usually ships 15-20 days
009 195-8445 Washer $17.89 2 usually ships 1-5 days
010 195-8044 Pedal shaft $3.59 1 usually ships 1-5 days
011 195-7989 Screw $9.57 1 usually ships 1-5 days
012a 195-6646 Brush set with spacer $54.05 1 usually ships 1-5 days
012b 195-6101 Brush strips (pkg of 4) $28.60 1 usually ships 15-20 days
013 195-8056 Screw for nozzle housing $3.58 2 usually ships 15-20 days
014 195-8034 Screw $4.80 4 usually ships 1-5 days
015 195-6640 Belt cover $13.20 1 usually ships 15-20 days
016 195-8058 Wheel (pkg of 2) $9.24 2 usually ships 15-20 days
017 195-8035 Wheel shaft (pkg of 2) $19.80 2 usually ships 15-20 days
018 195-6641 Upper body $35.20 1 ships same day
019 195-6645 Agitator holder (OBSOLETE) $3.30 1 usually ships 15-20 days
020 195-6642 Body cap (OBSOLETE) $6.60 1 usually ships 15-20 days
021 195-8033 Agitator assembly $104.06 1 (includes 012) usually ships 15-20 days
022 195-8055 Stop latch spring $5.19 2 usually ships 1-5 days
023 195-6104 Belt $5.96 1 usually ships 15-20 days
024 195-6643 Lower plate assembly $102.96 1 includes 022, 025 thru 030 usually ships 1-5 days
025 195-7685 Lower plate latch $7.80 2 usually ships 1-5 days
026 195-8446 Lower plate packing gasket Call for price 2 usually ships 1-5 days
027 195-7680 Lower plate packing gasket $1.98 2 usually ships 1-5 days
028 195-8447 Lower plate packing gasket $31.41 1 usually ships 1-5 days
029 195-8448 Lower plate packing gasket Call for price 1 usually ships 1-5 days
030 195-8449 Lower plate packing gasket Call for price 1 usually ships 1-5 days
