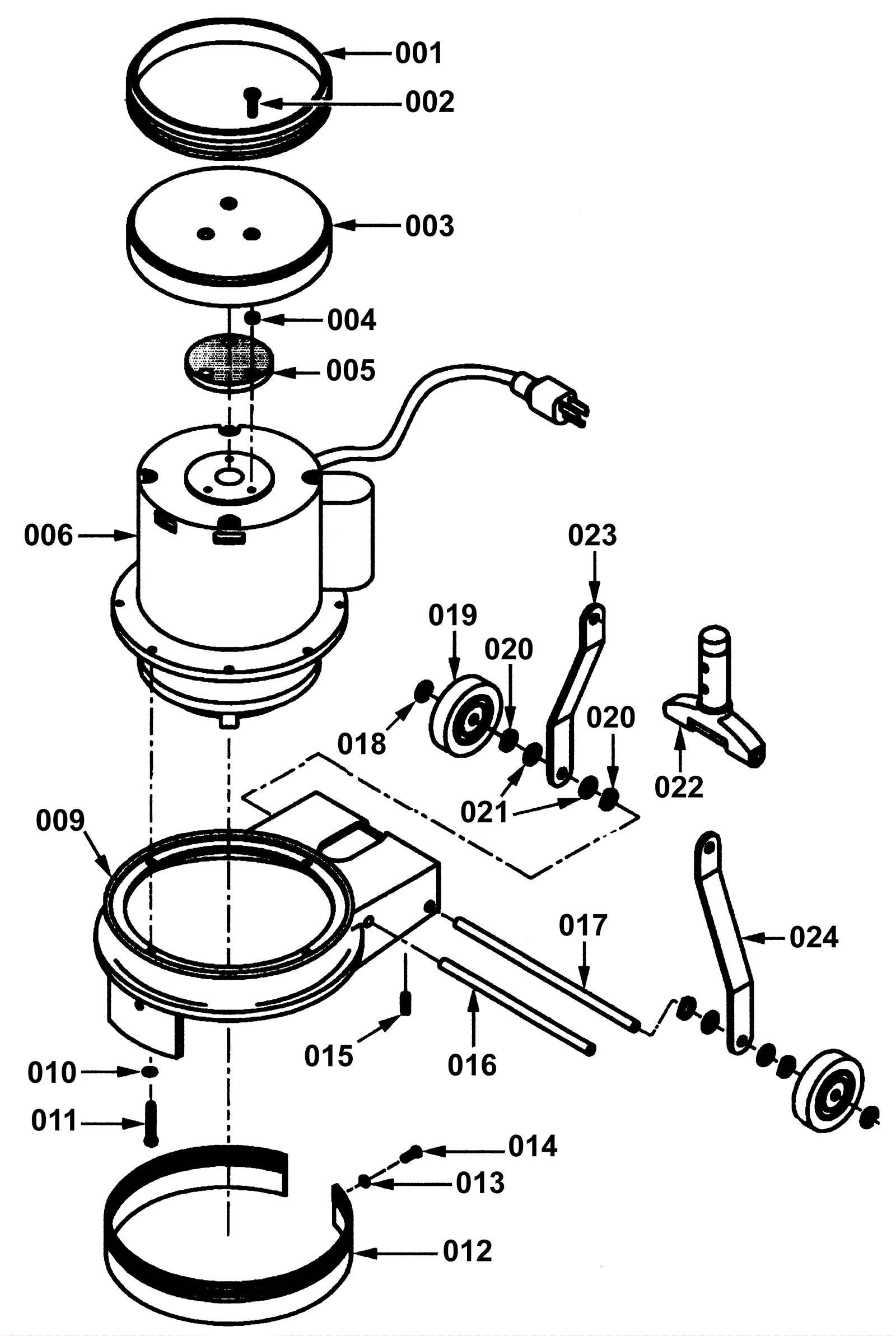

MCL-10C Motor and Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 195-8357 Canopy bumper blue $20.79 1 usually ships 1-5 days
002 195-6554 Screw 10 - 32 x 1/2 phillips $1.78 3 usually ships 1-5 days
003 195-9070 Motor canopy $49.90 1 usually ships 1-5 days
004 295-0850 Canopy spacer Call for price 3 usually ships 1-5 days
005 195-9088 Canopy gasket $6.66 1 usually ships 1-5 days
006 295-0851 120V 3/4HP motor and gearbox Call for price 1 usually ships 1-5 days
009 295-1402 Machine apron 10 in with bumper and wheels $280.68 1 usually ships 1-5 days
010 999-1049 Washer 1/4 split lock zinc plated $0.99 4 ships same day
011 295-0852 Screw 1/4-20 x 3/4 inch Call for price 4 usually ships 1-5 days
012 295-0853 Bumper 10 inch Call for price 1 usually ships 1-5 days
013 195-6333 Washer flat 3/16 inch $0.99 5 usually ships 9-26 days
014 295-0854 Screw #10 Call for price 3 usually ships 1-5 days
015 999-0121 Screw 5/16-18 x 1/2 cup point socket set alloy plain finish $0.99 2 ships same day
016 295-0855 Axle Call for price 1 usually ships 1-5 days
017 295-0856 Axle shaft Call for price 1 usually ships 1-5 days
018 195-6031 Retaining ring $0.99 3 usually ships 9-26 days
019 195-9071 3 inch wheel $17.16 2 usually ships 9-26 days
020 195-6023 Spring washer $2.20 4 usually ships 9-26 days
021 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
022 195-9135 Handle tee (OBSOLETE) $43.56 1 usually ships 9-26 days
023 295-0857 Strut support left Call for price 1 usually ships 1-5 days
024 295-0858 Strut support right Call for price 1 usually ships 1-5 days
