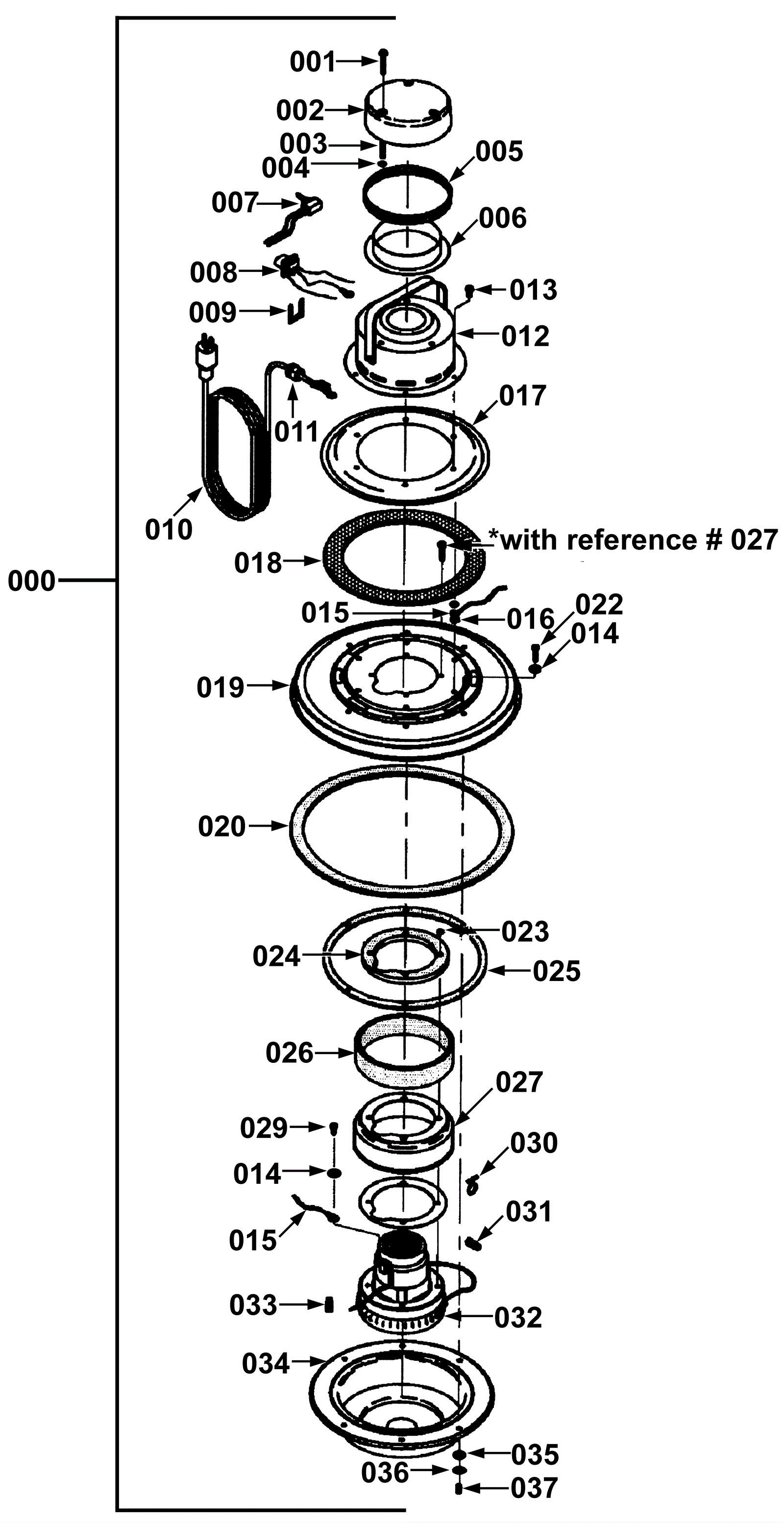

1510W 10 Quiet Motor Head Assembly

#PartDescriptionPriceReqNotesAvailability
000 195-9655 #10 quiet motor head assembly 115V (OBSOLETE) Call for price 1 includes items 001 thru 037 usually ships 1-5 days
001 195-9656 Screw #10-24 x 1 3/4 Call for price 3 usually ships 1-5 days
002 195-9657 Top cover assembly with gaskets Call for price 1 usually ships 1-5 days
003 195-9658 Steel spacer Call for price 3 usually ships 1-5 days
004 195-9373 Washer $1.62 3 usually ships 1-5 days
005 195-9188 Preforated ring $14.18 1 usually ships 1-5 days
006 195-9191 Baffle $33.08 1 usually ships 1-5 days
007 295-1067 Toggle switch $17.00 1 usually ships 9-26 days
008 295-1487 Electrical convenience outlet $6.80 1 usually ships 1-5 days
009 295-1490 Clip retainer $4.25 1 usually ships 9-26 days
010 195-6616 18/3 power cord 30 foot $75.04 1 usually ships 9-26 days
011 195-9648 Strain relief $10.84 1 usually ships 9-26 days
012 195-9213 Dome and handle assembly $94.50 1 usually ships 1-5 days
013 195-9643 Screw #10 x 1/2 Call for price 6 usually ships 1-5 days
014 195-9172 Washer $1.62 11 usually ships 9-26 days
015 295-1079 Lead #16 with terminal green $2.27 1 usually ships 9-26 days
016 195-6333 Washer flat 3/16 inch $0.90 2 usually ships 9-26 days
017 195-9659 Air deflector Call for price 1 usually ships 1-5 days
018 195-9249 Silencing ring $7.56 1 usually ships 1-5 days
019 195-9241 Can cover assembly $90.72 1 usually ships 1-5 days
020 295-1212 Gasket $8.40 1 usually ships 1-5 days
022 295-1411 Screw $1.62 6 usually ships 1-5 days
023 195-9195 Nylon spacer $1.62 4 usually ships 1-5 days
024 195-9203 Motor gasket $14.43 1 usually ships 9-26 days
025 195-9182 Gasket $1.62 3 usually ships 1-5 days
026 195-9197 Foam gasket $5.68 1 usually ships 1-5 days
027 195-9196 Air collector $39.70 1 usually ships 1-5 days
029 195-9597 Screw 10-32 x .31 phillips $1.62 1 usually ships 9-26 days
030 195-9204 Large purse lock $1.62 1 usually ships 1-5 days
031 195-6150 Wire connector $1.62 2 usually ships 9-26 days
032a 195-8687 120V vacuum motor $305.92 1 usually ships 9-26 days
032b 295-0689 Carbon brush (pkg of 2) $47.25 usually ships 9-26 days
033 295-1617 Wire connector $1.62 1 usually ships 9-26 days
034 195-9660 Motor cover assembly with gaskets Call for price 1 usually ships 1-5 days
035 195-9242 Knob washer $1.62 6 usually ships 1-5 days
036 295-1352 Nut #10 hex with extended lockwasher $1.62 6 usually ships 1-5 days
037 295-1483 Screw protector $1.62 6 usually ships 1-5 days
N/S 195-9194 Gasket $4.92 1 usually ships 1-5 days
N/S 195-9235 Screw hex head $1.62 4 usually ships 1-5 days
N/S 295-1135 Hose cage 14 in $47.33 1 usually ships 9-26 days
