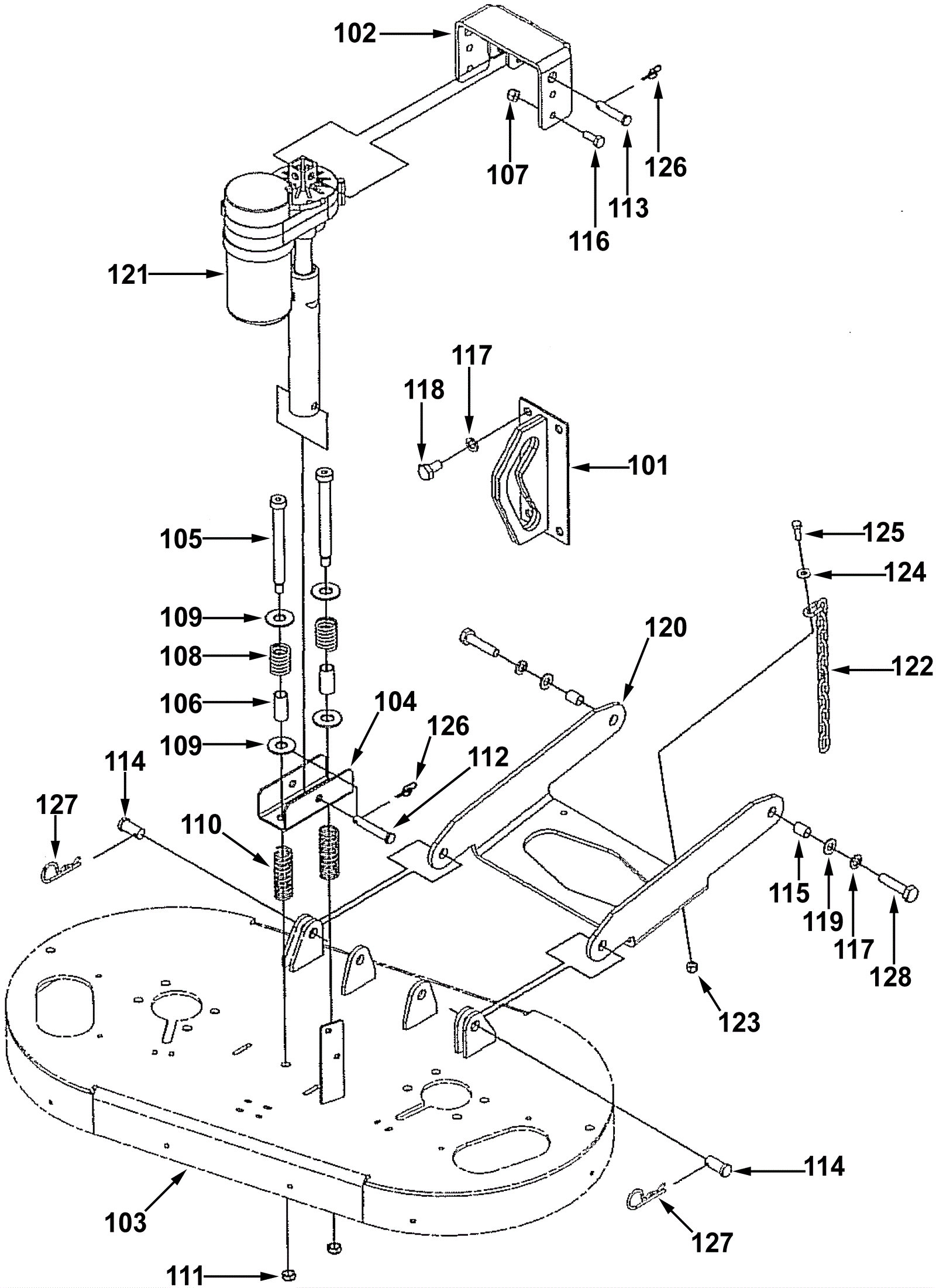

STRIKER 2840 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
101 195-8781 Track weldment Call for price 1 usually ships 1-5 days
102 195-8782 Actuator bracket weldment Call for price 1 usually ships 1-5 days
103 N/A Not available Call for price 1 28 Inch scrub deck weldment usually ships 3-26 days
104 195-8783 Spring mount channel Call for price 1 usually ships 1-5 days
105 195-8784 Bolt 1/2 x 4 1/4 shoulder Call for price 2 usually ships 1-5 days
106 195-8785 Spacer Call for price 2 usually ships 1-5 days
107 195-7138 Nut 8mm-2.5mm hex head with nylon insert $2.09 4 usually ships 1-5 days
108 195-8786 Compression spring Call for price 2 usually ships 1-5 days
109 195-8787 Washer 1/2 Call for price 4 usually ships 1-5 days
110 195-8788 Compression spring Call for price 2 usually ships 1-5 days
111 295-1719 Nut 3/8-16 low height ESN Call for price 2 usually ships 1-5 days
112 195-8789 Clevis pin Call for price 1 usually ships 1-5 days
113 195-8790 Clevis pin Call for price 1 usually ships 1-5 days
114 195-8791 Clevis pin Call for price 2 usually ships 1-5 days
115 195-8792 Spacer Call for price 2 usually ships 1-5 days
116 295-1671 Bolt M8-1.25 x 20 stainless steel HHB Call for price 4 usually ships 1-5 days
117 195-8776 Washer M10 lock Call for price 6 usually ships 1-5 days
118 195-8793 Bolt M10-1 1/2 x 20 hex head Call for price 4 usually ships 1-5 days
119 295-1664 Washer M10 Call for price 2 usually ships 1-5 days
120 195-8794 Deck arm channel Call for price 1 usually ships 1-5 days
122 195-8796 Ground chain Call for price 1 usually ships 1-5 days
123 295-1663 Nut M6-1 ESN Call for price 1 usually ships 1-5 days
124 195-8767 Nut 5/8-18 jam Call for price 1 usually ships 1-5 days
125 195-8797 Bolt M6-100 x 20 hex head Call for price 1 usually ships 1-5 days
126 295-1827 Rue ring 3/8 inch Call for price 2 usually ships 1-5 days
127 195-8798 Cotter pin Call for price 2 usually ships 1-5 days
128 195-8799 Bolt M10-150 x 45 hex head Call for price 2 usually ships 1-5 days
