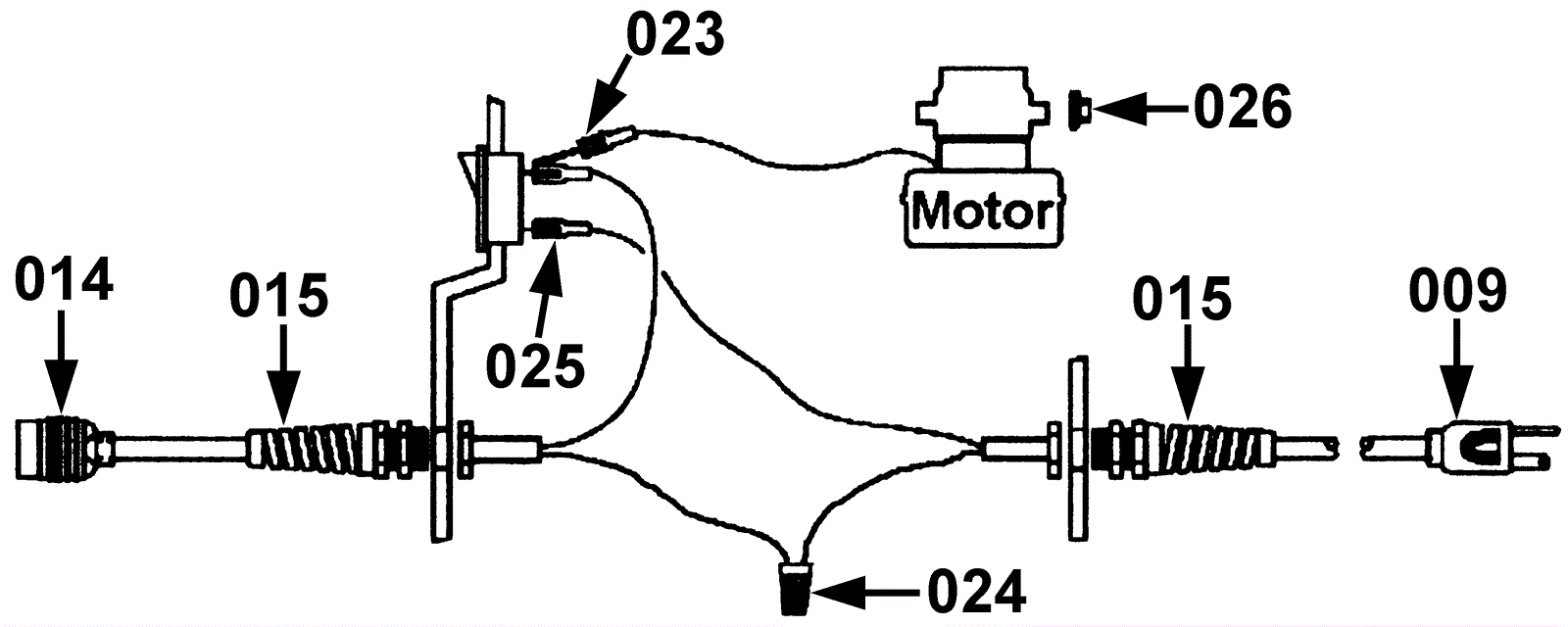

QUIETMASTER Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
009 195-6616 18/3 power cord 30 foot $82.54 1 usually ships 9-26 days
014 195-9614 Female pigtail $24.11 1 usually ships 1-5 days
015 195-8384 Strain relief black plastic $11.88 2 usually ships 1-5 days
023 295-0642 Spade terminal $3.12 2 usually ships 1-5 days
024 295-1617 Wire connector $1.78 1 usually ships 9-26 days
025 195-9626 Thermal cut off Call for price 2 usually ships 1-5 days
026 195-7431 Thermal cut out $26.20 1 usually ships 1-5 days
