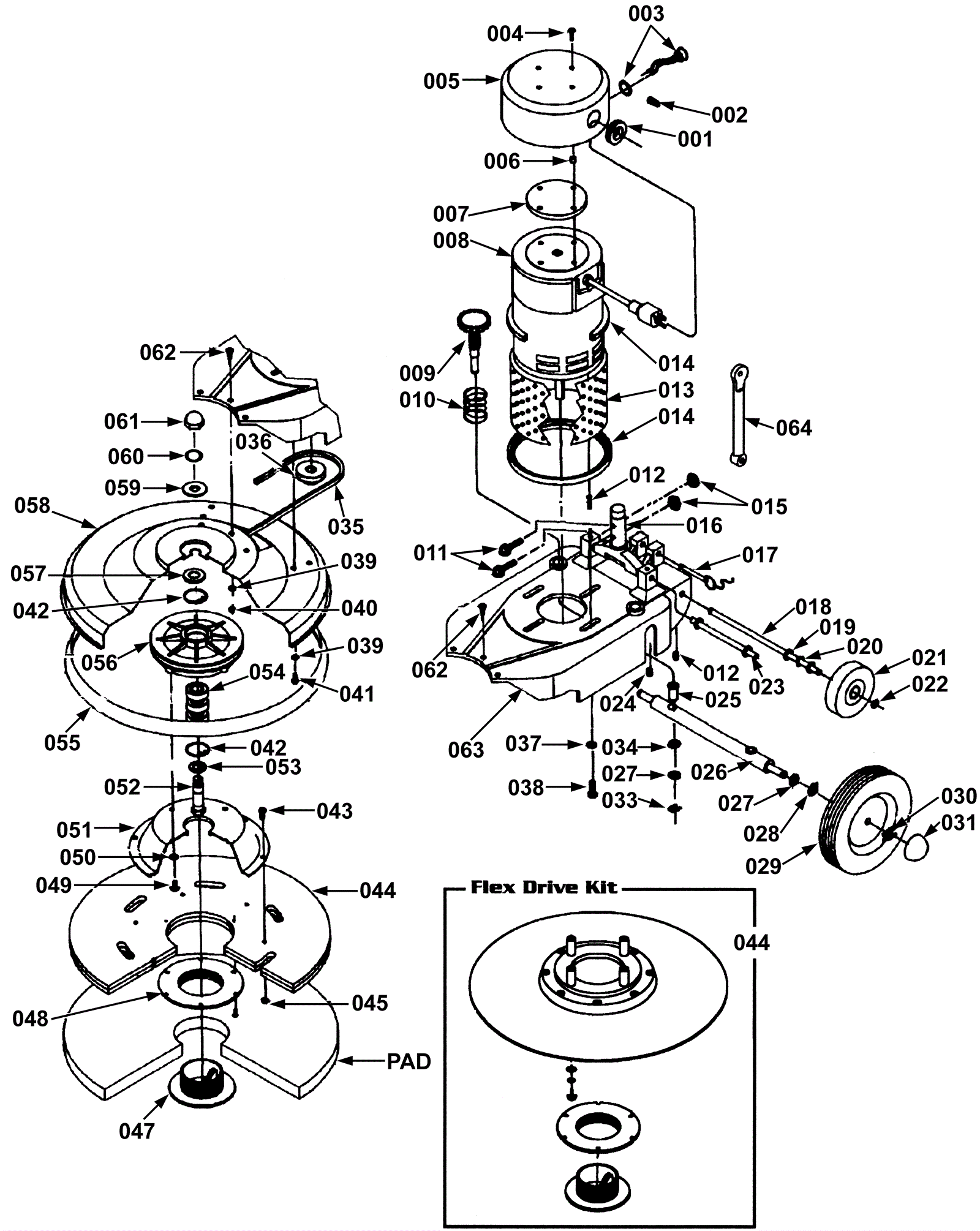

MBS-1000 Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 195-6002 Grommet $3.49 1 usually ships 1-5 days
002 195-6003 Electrical wire connector Call for price 2 usually ships 1-5 days
004 195-6311 Canopy screw $1.78 4 usually ships 1-5 days
005 195-6006 Motor canopy Call for price 1 usually ships 1-5 days
006 195-6007 Nylon spacer $0.99 4 usually ships 15-20 days
007 195-6008 Canopy foam disc $10.41 1 usually ships 1-5 days
008a 195-6010 Motor 115v 1 1/2hp Imperial $1,216.23 1 usually ships 15-20 days
008b 195-6068 Rectifier only (OBSOLETE) $44.00 1 usually ships 15-20 days
008c 195-6069 Rectifier with compound (OBSOLETE) $145.41 1 usually ships 15-20 days
008d 195-6067 Carbon brush set Imperial motor (pkg of 4) $102.51 1 usually ships 15-20 days
009 195-6012 Adjusting shaft and knob assembly $76.56 2 usually ships 1-5 days
010 195-6013 Adjusting spring $4.40 2 usually ships 15-20 days
011 195-6014 Bolt 5/16-18 x 1 1/2 $0.99 2 usually ships 15-20 days
012 999-0121 Screw 5/16-18 x 1/2 cup point socket set alloy plain finish $0.99 4 ships same day
013 195-6016 Perforated motor screen $47.83 1 usually ships 1-5 days
014 195-6017 Perforated screen bumper $10.41 2 usually ships 1-5 days
015 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
016 195-6312 T casting $125.38 1 usually ships 15-20 days
017 195-6020 Speed pin wire assembly $10.41 1 usually ships 1-5 days
018 195-6313 Axle shaft 3/8 x 11 1/4 $10.41 1 usually ships 1-5 days
019 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
020 195-6023 Spring washer $2.20 3 usually ships 15-20 days
021 195-6024 Wheel 4 inch $19.38 2 usually ships 15-20 days
022 195-6031 Retaining ring $0.99 2 usually ships 15-20 days
023 195-6026 T axle shaft $10.41 1 usually ships 1-5 days
025 195-6028 Brass adjusting bushing $9.24 2 usually ships 1-5 days
026 195-6314 Axle shaft 1 x 14 13/16 $112.99 1 usually ships 1-5 days
027 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
028 195-6315 Washer wave $3.30 2 ships same day
029 195-6032 8 inch rear wheel $65.67 2 usually ships 15-20 days
030 195-6033 Washer large retainer $4.40 4 usually ships 15-20 days
031 195-6034 Hub cap $4.40 2 usually ships 15-20 days
033 195-6036 Washer small X retainer $0.99 2 usually ships 1-5 days
034 195-6037 Retaining ring $0.99 2 usually ships 1-5 days
035 195-6338 V belt $51.48 1 usually ships 15-20 days
036 195-6339 Motor pulley $31.20 1 usually ships 1-5 days
037 195-6040 Washer 3/8 lock $0.99 4 usually ships 1-5 days
038 195-6041 Bolt 3/8-16 x 1/2 inch $1.78 4 usually ships 1-5 days
039 999-1049 Washer 1/4 split lock zinc plated $0.99 11 ships same day
040 195-6043 Nut hex Call for price 3 usually ships 1-5 days
041 195-6035 Screw 1/4-20x1/2 Call for price 8 usually ships 1-5 days
042 195-6045 Bearing retainer ring $0.99 2 usually ships 1-5 days
043 195-6046 Screw 1/4-20 x 7/8 $1.78 6 usually ships 1-5 days
044a 195-6049 Flex drive assembly $271.05 1 usually ships 15-20 days
045 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 6 ships same day
047a 991-2203 Big mouth pad holder male thread portion $27.25 1 ships same day
047b 195-6022 Center lock assembly $56.01 1 usually ships 15-20 days
048 991-2215 Big mouth II (long right hand thread) $29.70 1 ships same day
049 195-6035 Screw 1/4-20x1/2 Call for price 8 usually ships 1-5 days
050 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
051 195-6049 Flex drive assembly $271.05 1 (Adapter is no longer available alone) usually ships 15-20 days
052 195-6052 Bearing bolt $35.20 1 usually ships 1-5 days
053 195-6053 Bottom spacer $9.88 1 usually ships 1-5 days
054 195-6055 Bearing $31.68 3 usually ships 1-5 days
055 195-6054 Apron bumper(gray) $50.15 1 ships same day
056 195-6056 Sheave and bearing casting $197.52 1 usually ships 1-5 days
057 195-6057 Upper end spacer $10.75 1 usually ships 1-5 days
058 195-6058 Apron 20in $519.75 1 usually ships 1-5 days
059 195-6059 Washer flat steel $2.30 1 usually ships 1-5 days
060 999-0816 Washer 5/8 medium split lock $0.99 1 ships same day
061 195-6060 Nut acorn $19.45 1 usually ships 1-5 days
062 195-6061 Screw 1/4-20 x 3/4 $1.49 3 usually ships 15-20 days
063 195-6062 Body casting $332.64 1 usually ships 15-20 days
064 195-6319 Support strut casting $73.90 1 usually ships 15-20 days
N/S 195-6318 Sheave kit $311.85 1 usually ships 1-5 days
