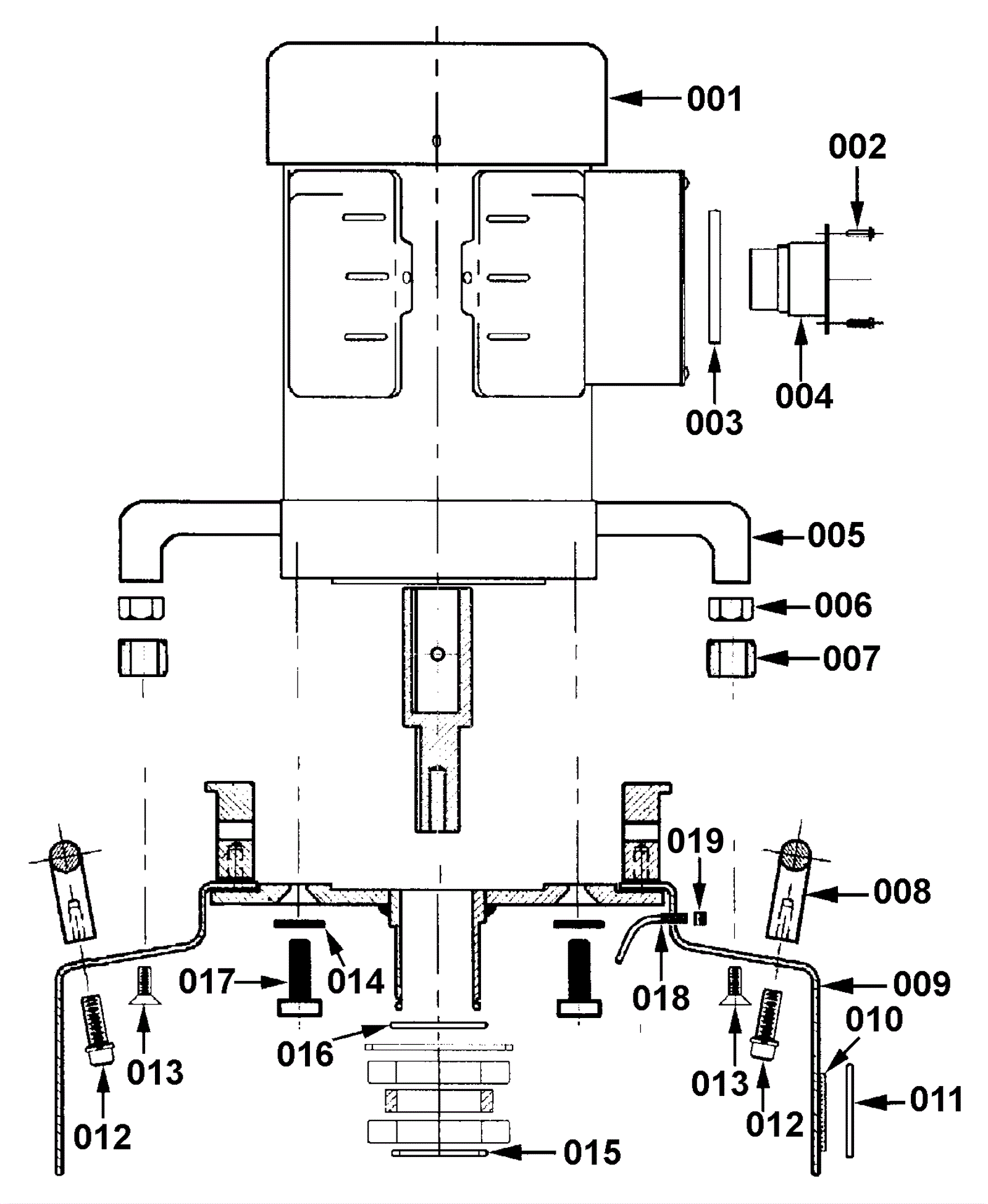

MTHC-16LR Outer Bowl Assembly - 16 inch

#PartDescriptionPriceReqNotesAvailability
001a 195-6023 Spring washer $2.20 1 MTHC-16LR usually ships 15-20 days
001b 195-6538 1.5 hp motor $1,593.55 1 MTHC-16E DLX, MTHC-16HR usually ships 1-5 days
002 195-6524 Rivet $1.78 2 usually ships 1-5 days
003 195-6525 Spacer $41.58 1 usually ships 1-5 days
004 195-6526 Recess plug $62.37 1 usually ships 1-5 days
005 195-6527 20 pound weight (optional) $253.79 1 usually ships 1-5 days
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 .3 ships same day
007 195-6528 Weight knob $20.79 3 usually ships 1-5 days
008 195-6529 Bowl handle $33.26 2 usually ships 1-5 days
009a 195-6530 16 inch outer bowl white $696.48 1 MTHC-16LR usually ships 1-5 days
009b 195-6539 16 inch outer bowl assembly $696.48 1 MTHC-16E DLX, MTHC-16HR usually ships 1-5 days
010 195-6531 Velcro strip $18.72 1 usually ships 1-5 days
011 195-6532 Rubber dust skirt $81.09 1 usually ships 1-5 days
012 195-6533 Screw 1/2 - 20 x 5/8 $1.78 4 usually ships 1-5 days
013 195-6061 Screw 1/4-20 x 3/4 $1.49 3 usually ships 15-20 days
014 195-6040 Washer 3/8 lock $0.99 4 usually ships 1-5 days
015 195-6534 External snap ring 1 3/4 inch $4.16 1 usually ships 1-5 days
016a 195-6535 Felt gasket $4.80 1 MTHC-16LR usually ships 1-5 days
016b 195-6540 Felt gasket $4.99 1 MTHC-16E DLX, MTHC-16HR usually ships 1-5 days
017 195-6041 Bolt 3/8-16 x 1/2 inch $1.78 4 usually ships 1-5 days
018 195-6536 Tube assembly $66.53 1 usually ships 1-5 days
019 195-6537 Nut .12 hex $2.09 1 usually ships 1-5 days
