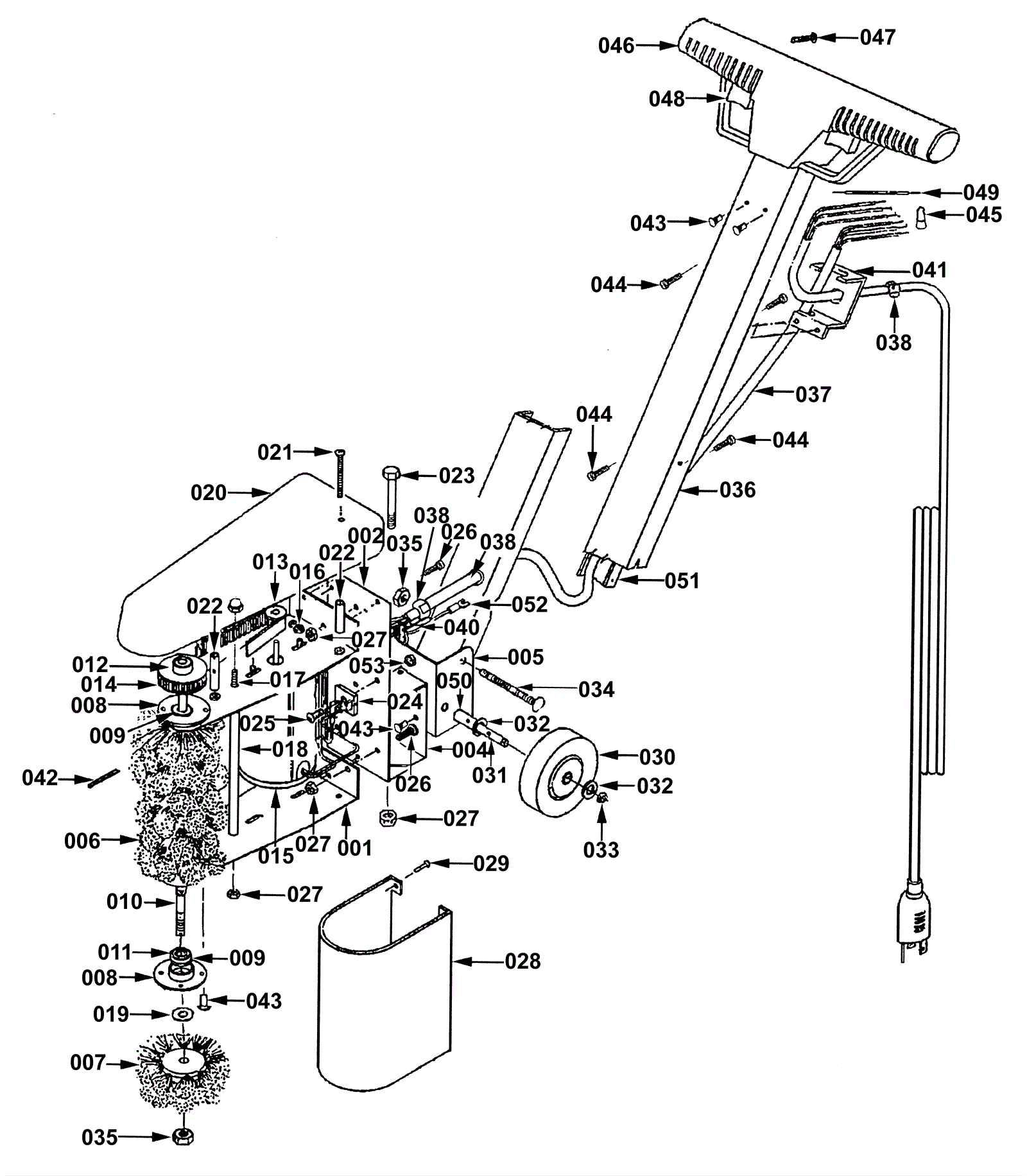

MWB-90 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 195-6587 Motor mount bracket Call for price 2 usually ships 1-5 days
002 195-6588 Vertical mount bracket Call for price 1 usually ships 1-5 days
003 195-6589 Top pivot bracket Call for price 1 usually ships 1-5 days
004 195-6590 Front housing pivot bracket Call for price 1 usually ships 1-5 days
005 195-6591 Rear housing pivot bracket Call for price 1 usually ships 1-5 days
006 195-6114 Cylindrical brush $177.08 1 usually ships 9-26 days
007 195-6115 Brush disk $131.11 1 usually ships 9-26 days
008 195-6592 Bearing cap $52.80 2 usually ships 9-26 days
009 195-6593 Bearing $19.80 2 usually ships 9-26 days
010 195-6594 Brush shaft Call for price 1 usually ships 1-5 days
011 195-6595 Washer felt $2.09 2 usually ships 1-5 days
012 195-6596 Brush timing belt pulley Call for price 1 usually ships 1-5 days
013 195-6597 Motor timing belt pulley Call for price 1 usually ships 1-5 days
014 195-6598 Timing belt Call for price 1 usually ships 1-5 days
015 195-6599 Brush motor 115V Call for price 1 usually ships 1-5 days
016 195-6600 Nut 10 - 32 hex with lock washer Call for price 3 usually ships 1-5 days
017 295-1085 Stud 1/4-30 x 7 1/2 $4.16 1 usually ships 1-5 days
018 195-6602 Spacer Call for price 1 usually ships 1-5 days
019 195-8742 Washer flat $2.20 1 usually ships 9-26 days
020 295-1076 Edger belt cover $74.84 1 usually ships 1-5 days
021 195-6605 Screw 1/2 - 20 x 1 3/4 Call for price 3 usually ships 1-5 days
022 195-9225 Spacer $1.78 3 usually ships 1-5 days
023 195-6607 Bolt 1/4 - 20 x 3 1/2 hex Call for price 1 usually ships 1-5 days
024 195-6608 Rectifier $72.60 1 usually ships 1-5 days
025 295-1411 Screw $1.78 1 usually ships 1-5 days
026 195-6337 Screw 1/4-20 x 1/2 $1.74 9 usually ships 9-26 days
027 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 11 ships same day
028 195-6610 Motor cover $209.99 1 usually ships 1-5 days
029 195-9679 Screw #6 x 1/2 Call for price 8 usually ships 1-5 days
030 195-6024 Wheel 4 inch $19.38 2 usually ships 9-26 days
031 195-6612 Wheel axle Call for price 1 usually ships 1-5 days
032 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
033 195-6031 Retaining ring $0.99 2 usually ships 9-26 days
034 195-6613 Bolt 5/16 - 18 x 2 3/4 hex Call for price 1 usually ships 1-5 days
035 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
036 195-6615 Channel handle $66.53 1 usually ships 1-5 days
037 195-6616 18/3 power cord 30 foot $82.54 1 ships same day
038 195-9389 Strain relief $1.78 2 usually ships 9-26 days
040 195-6619 Speed pin $11.44 1 usually ships 1-5 days
041 195-6620 Line cord guard Call for price 1 usually ships 1-5 days
042 195-6621 Roll pin Call for price 1 usually ships 1-5 days
043 195-6622 Tubular rivet Call for price 6 usually ships 1-5 days
044 195-9679 Screw #6 x 1/2 Call for price 4 usually ships 1-5 days
045 295-1617 Wire connector $1.78 2 usually ships 9-26 days
046 195-6625 Plastic handle (2 pc) $34.93 1 usually ships 9-26 days
047 195-8424 Screw $1.78 6 usually ships 1-5 days
048 295-1072 Baseboard trigger switch $18.72 2 usually ships 1-5 days
049 195-6628 Jumper wire Call for price 4 usually ships 1-5 days
050 195-6629 Poly spacer Call for price 2 usually ships 1-5 days
051 195-6630 Inner support channel Call for price 1 usually ships 1-5 days
052 195-6631 Insulated terminal Call for price 2 usually ships 1-5 days
053 295-1352 Nut #10 hex with extended lockwasher $1.78 1 usually ships 1-5 days
N/S 195-6618 Nut 1/4 - 20 $76.93 3 usually ships 1-5 days
