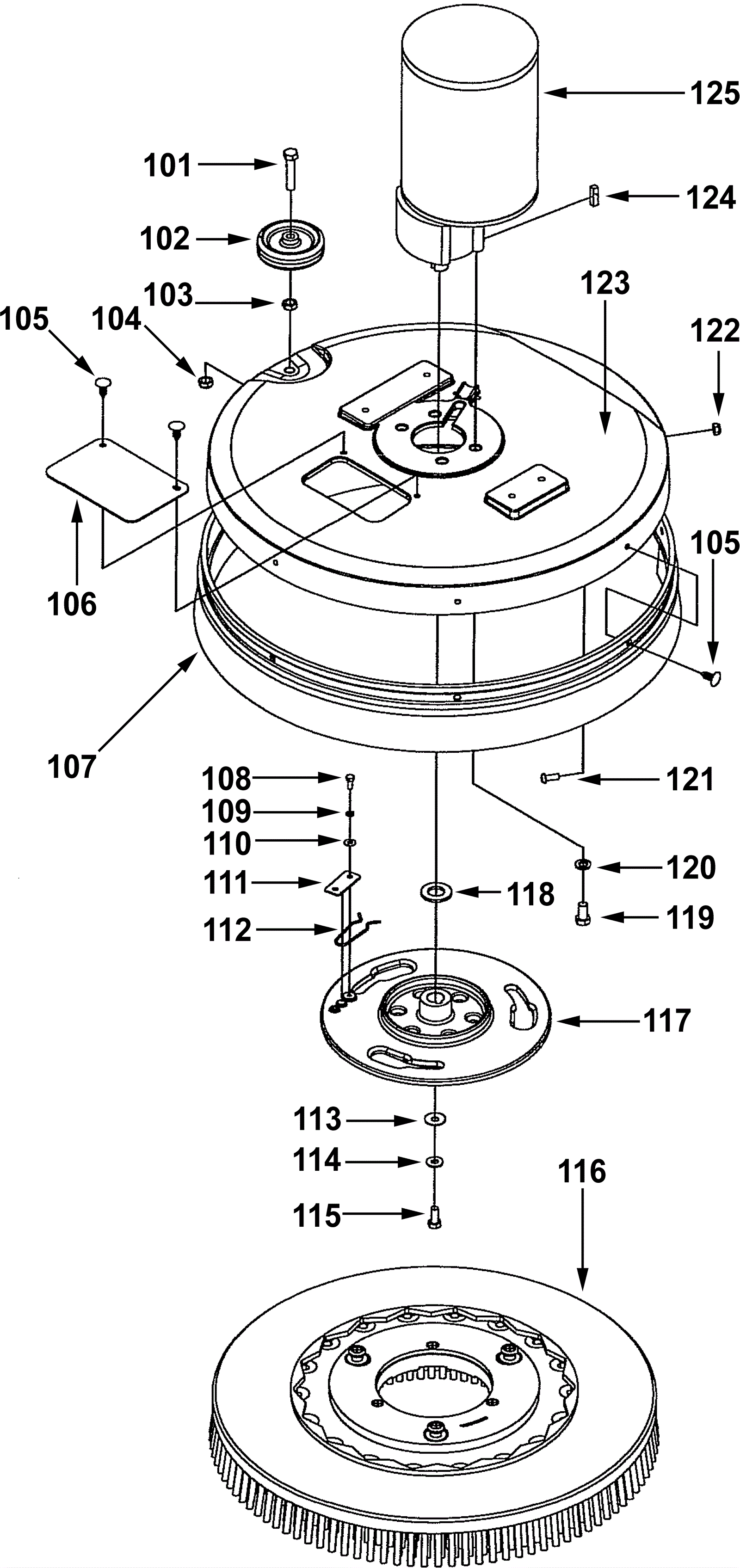

STRIKER 2010 Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
101 295-1717 Bolt .3/8-16 x 1 3/4 hex head Call for price 1 usually ships 1-5 days
102 195-7111 Guide wheel $33.26 1 usually ships 1-5 days
103 295-1718 Nut 3/8-16 jam Call for price 1 usually ships 1-5 days
104 295-1719 Nut 3/8-16 low height ESN Call for price 1 usually ships 1-5 days
105 195-7090 Fastener $2.30 7 usually ships 1-5 days
106 295-1710 Brush release cover Call for price 1 usually ships 1-5 days
107a 195-7223 20 inch scrub deck skirt $103.95 1 20 inch only usually ships 1-5 days
107b 295-1855 17 inch scrub deck skirt Call for price 1 17 inch only usually ships 1-5 days
108 295-1723 Bolt M5-.8 x 12 HHB Call for price 2 usually ships 1-5 days
109 295-1724 Washer M5 lock Call for price 2 usually ships 1-5 days
110 295-1725 Washer M5 Call for price 2 usually ships 1-5 days
111 295-1726 Spring retainer plate Call for price 1 usually ships 1-5 days
112 195-7237 Brush lock spring $22.88 1 usually ships 9-26 days
113 295-1712 Washer 5/16 belleville Call for price 1 usually ships 1-5 days
114 295-1713 Washer 5/16 stainless steel Call for price 1 usually ships 1-5 days
115 295-1714 Bolt 5/16-18 x 3/4 stainless steel hex head Call for price 1 usually ships 1-5 days
117 295-1721 Brush drive hub Call for price 1 usually ships 1-5 days
118 295-1722 Washer Call for price 1 usually ships 1-5 days
119 295-1716 Bolt 3/8-16 x 3/4 stainless steel hex head Call for price 4 usually ships 1-5 days
120 295-1715 Washer 3/8 lock Call for price 4 usually ships 1-5 days
121 295-1727 Bolt M6-1 x 16mm stainless steel button head Call for price 2 usually ships 1-5 days
122 295-1663 Nut M6-1 ESN Call for price 2 usually ships 1-5 days
123a 295-1709 20 inch scrub deck Call for price 1 20 inch only usually ships 1-5 days
123b 295-1854 17 inch scrub deck Call for price 1 (17 in only) usually ships 1-5 days
124 295-1711 Square keyway Call for price 1 usually ships 1-5 days
125 295-1720 Brush motor 24V 1 HP Call for price 1 usually ships 1-5 days
