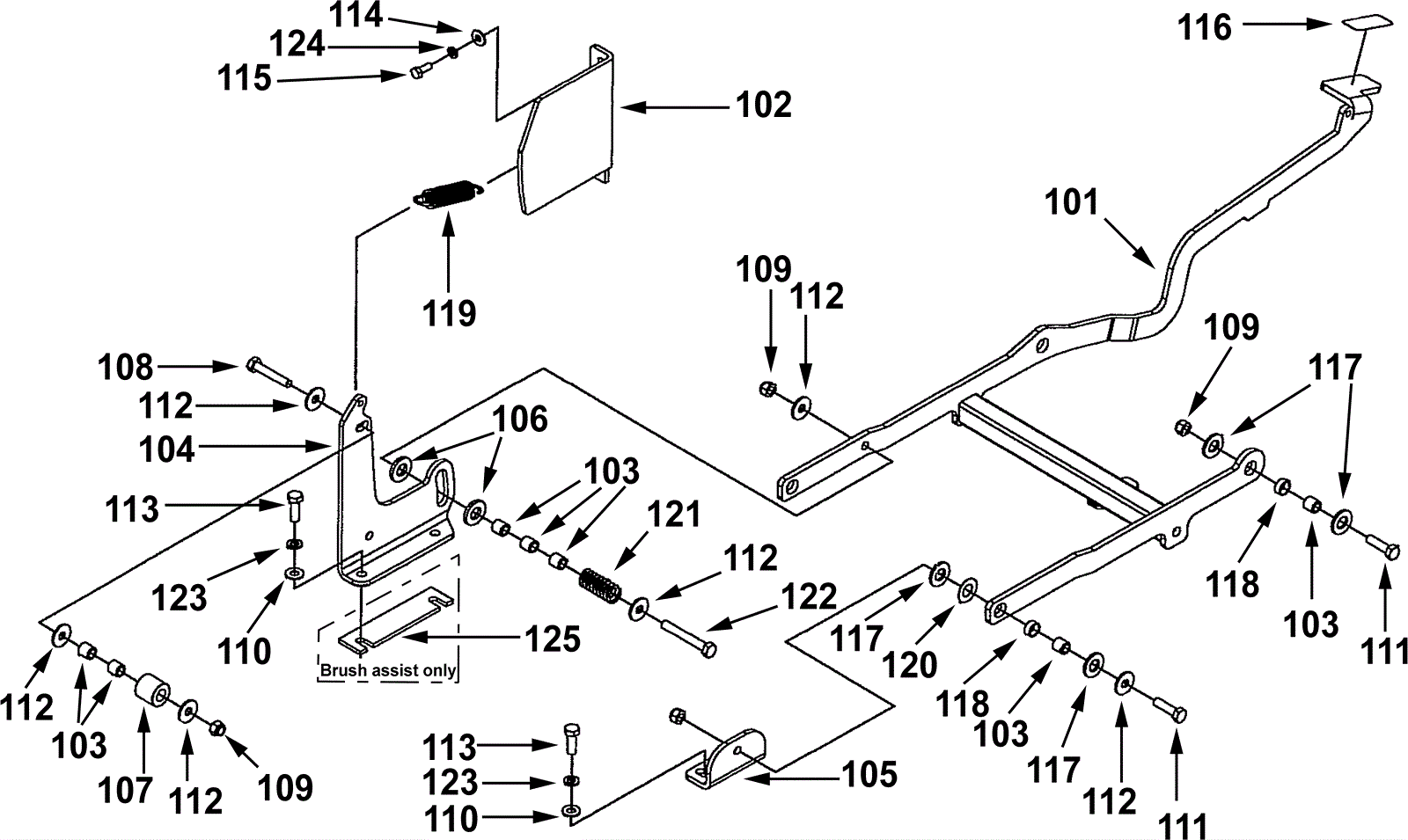

Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
101 295-1689 Brush lift arm weldment $508.20 1 usually ships 1-5 days
102 295-1690 Scrub deck cam Call for price 1 usually ships 1-5 days
103 295-1691 Spacer Call for price 9 usually ships 1-5 days
104 295-1692 Scrub deck bracket Call for price 1 usually ships 1-5 days
105 295-1693 Scrub deck angle Call for price 1 usually ships 1-5 days
106 295-1678 Thrust bushing bronze Call for price 2 usually ships 1-5 days
107 295-1694 Roller Call for price 1 usually ships 1-5 days
108 295-1695 Bolt M8-1.25 x 45 HHB Call for price 1 usually ships 1-5 days
109 195-7138 Nut 8mm-2.5mm hex head with nylon insert $2.30 6 usually ships 1-5 days
110 195-7142 Washer M8 $2.09 4 usually ships 1-5 days
111 295-1697 Bolt M8-125 x 30 hex head bolt Call for price 4 usually ships 1-5 days
112 195-7143 Washer fender MB $1.78 7 usually ships 1-5 days
113 295-1696 Bolt M8 x 1.25 x 25mm hex head Call for price 4 usually ships 1-5 days
114 295-1698 Washer M6 stainless steel Call for price 2 usually ships 1-5 days
115 295-1699 Bolt M6-1 x 16 stainless steel hex head Call for price 2 usually ships 1-5 days
116 295-1700 Anti-skid pad Call for price 1 usually ships 1-5 days
117 295-1701 Washer M12 nylon Call for price 8 usually ships 1-5 days
118 295-1702 Bearing Call for price 4 usually ships 1-5 days
119 295-1703 Extension spring Call for price 1 usually ships 1-5 days
120 295-1685 Nylon thrust bushing Call for price 2 usually ships 1-5 days
121 295-1704 Compression spring Call for price 1 usually ships 1-5 days
122 295-1705 Bolt M8-1.25 x 60mm stainless steel HHB Call for price 1 usually ships 1-5 days
123 295-1706 Washer M8 lock Call for price 4 usually ships 1-5 days
124 295-1707 Washer M6 lock Call for price 2 usually ships 1-5 days
125 295-1708 Plate spacer Call for price 1 (brush assist models only) usually ships 1-5 days
