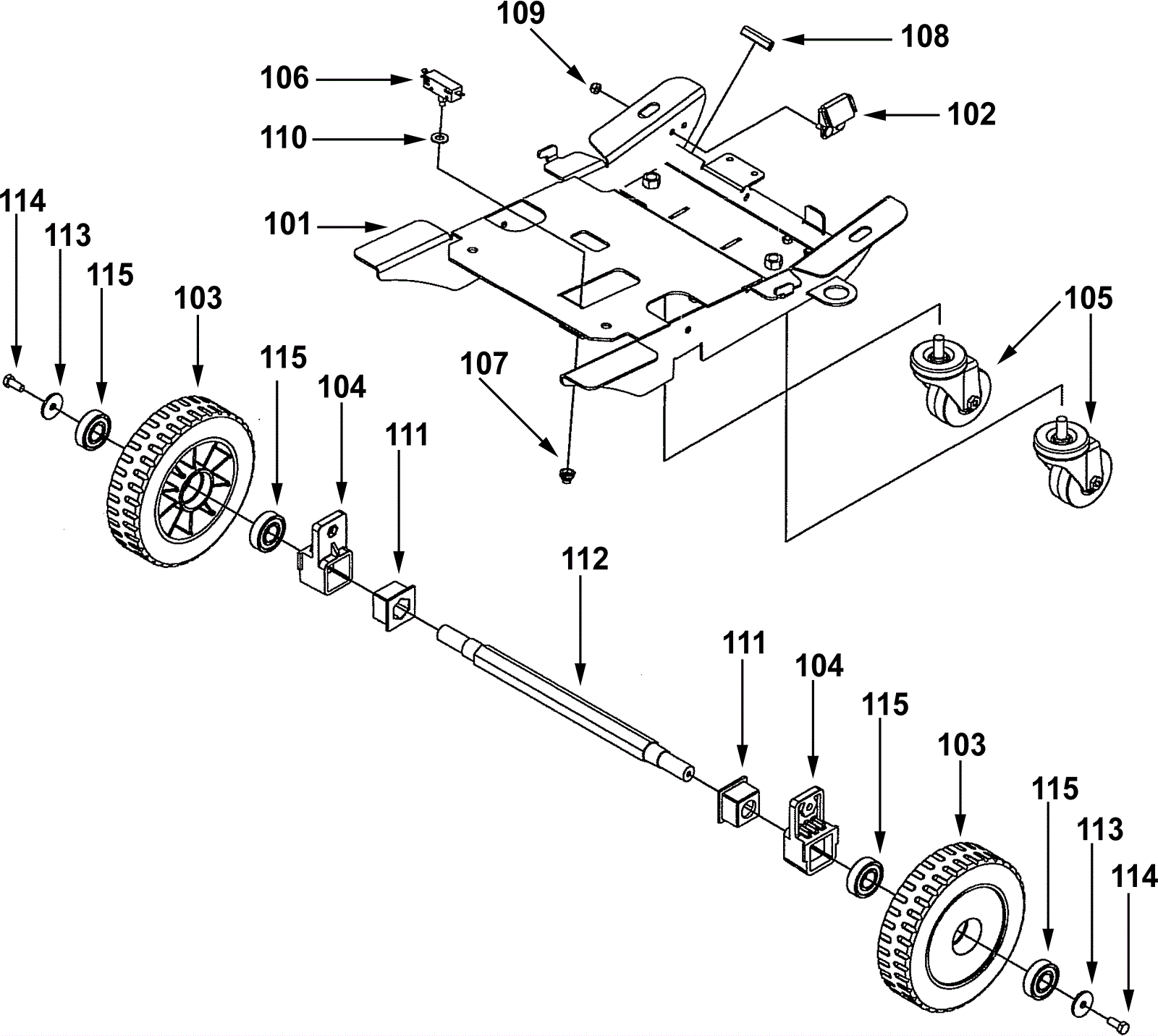

Frame Assembly - Brush Assist Model

#PartDescriptionPriceReqNotesAvailability
101 295-1655 Frame weldment Call for price 1 usually ships 1-5 days
102 295-1656 Latch weldment Call for price 1 usually ships 1-5 days
103 295-1666 Tire 8 in brush assist $519.75 2 usually ships 1-5 days
104 295-1667 Machined transaxle retainer $31.20 2 usually ships 1-5 days
105 195-7228 Caster 3 in $121.44 2 usually ships 1-5 days
106 195-7238 Plunger switch $60.98 1 usually ships 1-5 days
107 295-1658 Switch seal nut Call for price 1 usually ships 1-5 days
108 295-1660 Edging Call for price 1 usually ships 1-5 days
109 295-1663 Nut M6-1 ESN Call for price 2 usually ships 1-5 days
110 295-1664 Washer M10 Call for price 1 usually ships 1-5 days
111 295-1668 Axle bushing $16.63 2 usually ships 1-5 days
112 295-1669 Brush assist axle $176.73 1 usually ships 1-5 days
113 295-1670 Washer Call for price 2 usually ships 1-5 days
114 295-1671 Bolt M8-1.25 x 20 stainless steel HHB Call for price 2 usually ships 1-5 days
115 295-1672 Ball bearing $24.95 4 usually ships 1-5 days
