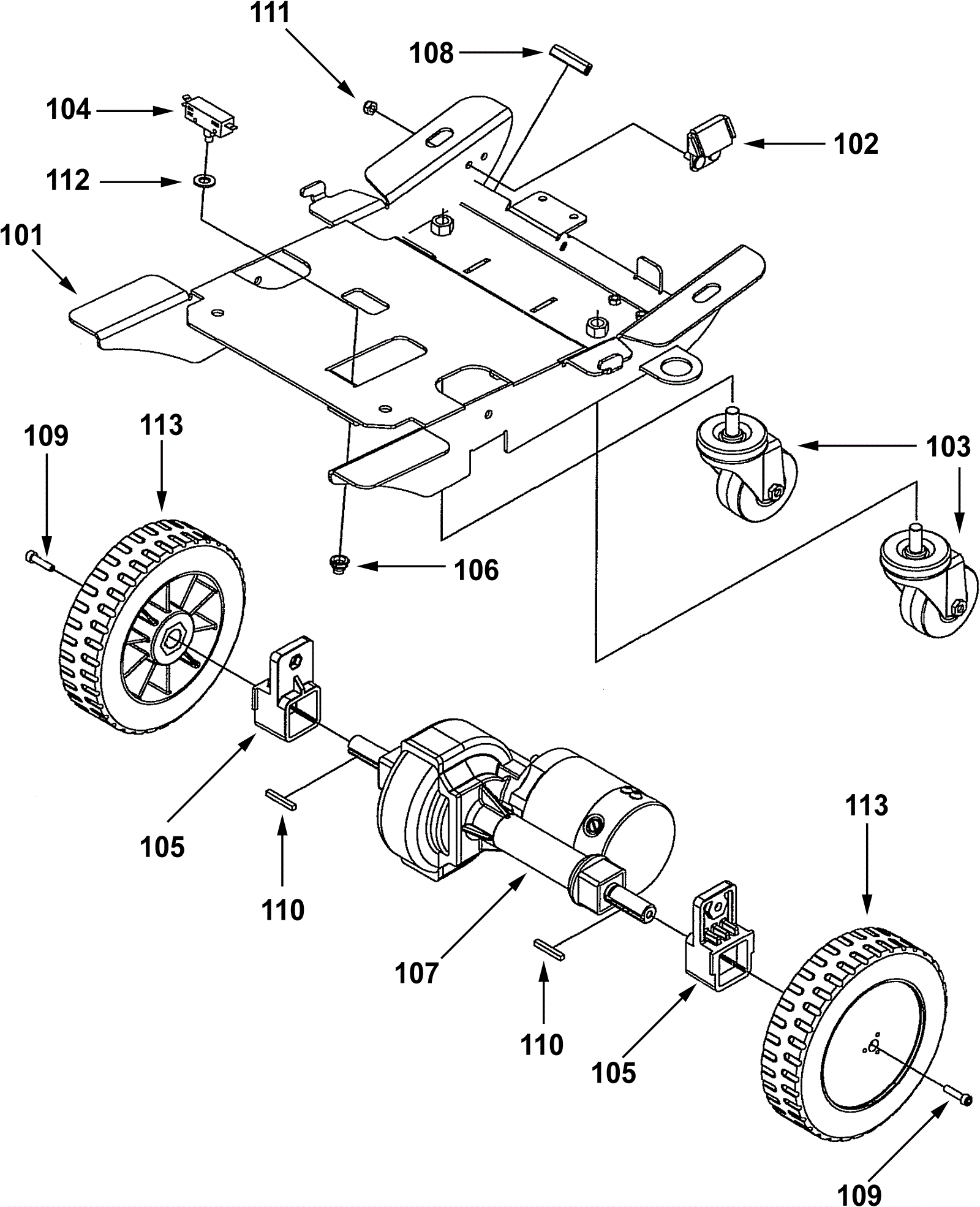

Frame Assembly - Drive Model
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
101
295-1655
Frame weldment
Call for price
1
usually ships 1-5 days
102
295-1656
Latch weldment
Call for price
1
usually ships 1-5 days
103
195-7228
Caster 3 in
$121.44
2
usually ships 1-5 days
104
195-7238
Plunger switch
$60.98
1
usually ships 1-5 days
105
295-1657
Transaxle retainer
$62.37
2
usually ships 1-5 days
106
295-1658
Switch seal nut
Call for price
2
usually ships 1-5 days
107
295-1659
Transaxle 24V
Call for price
1
usually ships 1-5 days
108
295-1660
Edging
Call for price
1
usually ships 1-5 days
109
295-1661
Bolt M6-1 x 25 SHCS
Call for price
1
usually ships 1-5 days
110
295-1662
Square keyway
Call for price
2
usually ships 1-5 days
111
295-1663
Nut M6-1 ESN
Call for price
2
usually ships 1-5 days
112
295-1664
Washer M10
Call for price
1
usually ships 1-5 days
113
295-1665
Splined tire 8 in
$523.91
2
usually ships 1-5 days
