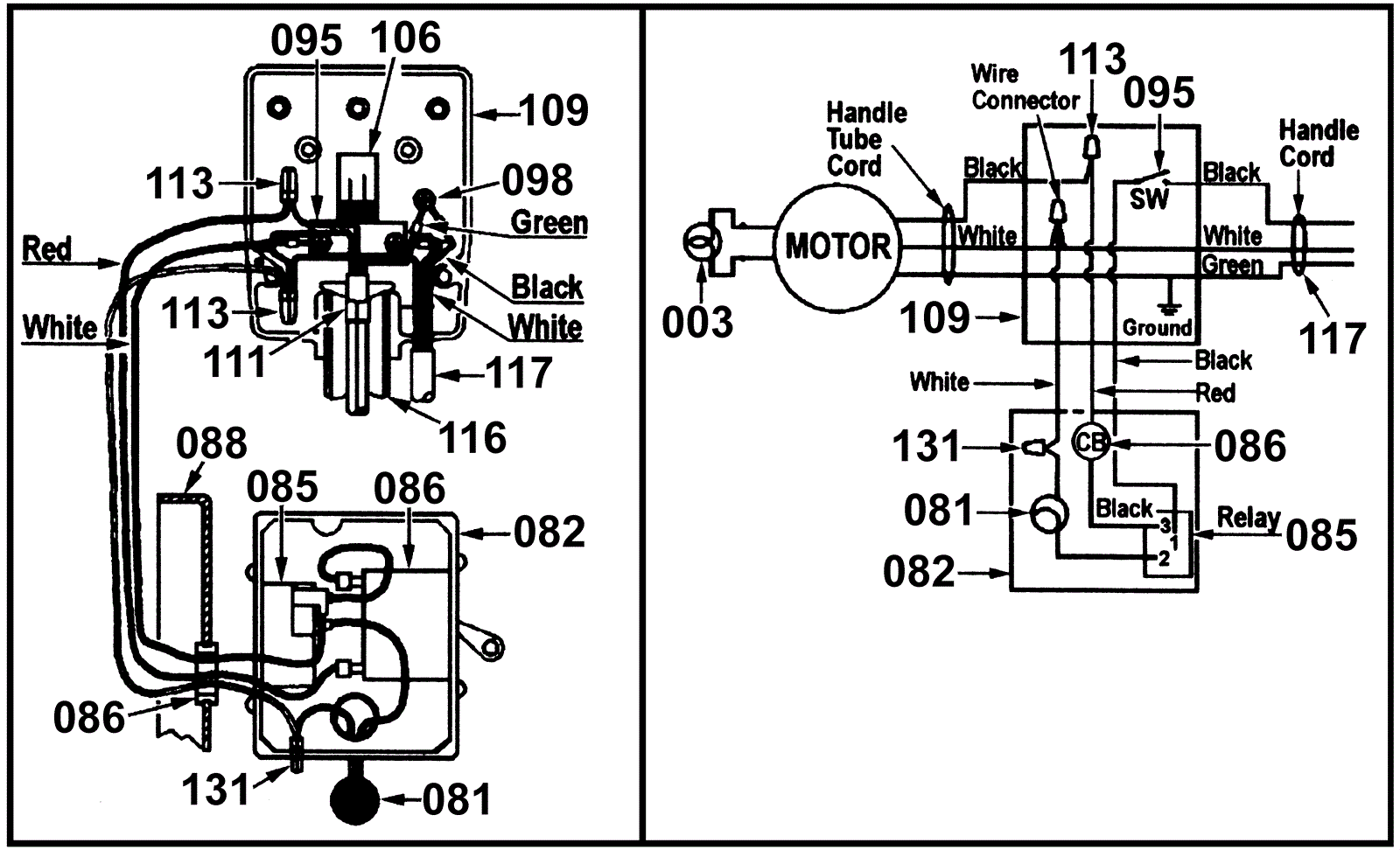

MBS-2000 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
081 195-6301 Indicator lamp $18.42 1 usually ships 9-26 days
082 195-6302 Control box casting $51.98 1 usually ships 1-5 days
085 195-6305 Relay $104.38 1 usually ships 17-33 days
086 195-6306 Circuit breaker $76.21 1 usually ships 9-26 days
088 195-6308 Switch box cover (OBSOLETE) $67.18 1 usually ships 9-26 days
095a 195-6151 Switch $34.74 1 Old style switch McGill - 4 holes. For new style Cherryl switch with 2 holes please order 195-6151. usually ships 9-26 days
095b 195-6151 Switch $34.74 1 New style Cherryl switch with 2 holes. For the old style switch McGill - 4 holes please order 195-9318 usually ships 9-26 days
098 195-6095 Screw 8-32 x 1/4 $0.90 3 usually ships 1-5 days
106 195-6084 Leaf spring $7.00 1 usually ships 9-26 days
109 195-6152 Switch box $39.07 1 usually ships 9-26 days
111 195-6080 Cord clamp $8.40 1 usually ships 9-26 days
113 195-6150 Wire connector $1.62 2 usually ships 9-26 days
116 195-6075 Handle tube $38.50 1 usually ships 9-26 days
117a 195-6071 14/3 power cord 50ft $142.20 1 OEM ships same day
117b 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 (NON-OEM) (does not include strain relief) ships same day
131 195-6003 Electrical wire connector Call for price 1 usually ships 1-5 days
